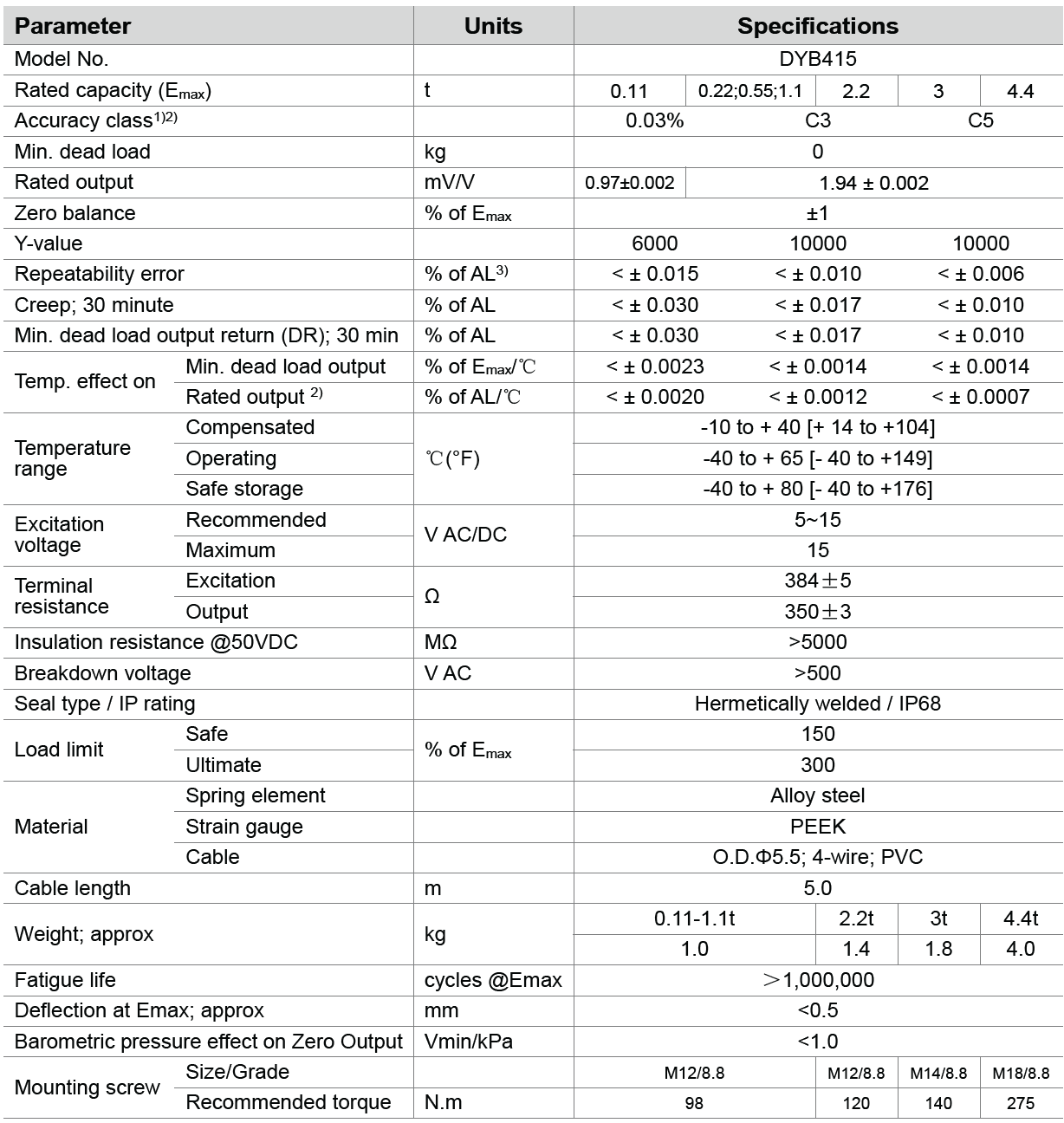

DYB415 Single-Ended Beam Load Cell Specifications
Special features
- Alloy steel nickel plated construction
- capacities from 110kg to 4.4t
- Complies with OIML R60 regulations up to 5000d divisions
- Hermetically sealed I36
- Cable connector 1/4-1 13T
- Small linearity hysteresis and creep; good long-term stability
- Applications: Industrial platform scale, vessel and tank weighing systems
Option
- Stainless steel
construction Interchangeable D<HL-
- Six-wire circuit
- Explosion-proof versions per Ex/ATEX
standard
Dimensions
| Rated Cap. (t) | L (mm) | L1 | L2 | L3 | L4 | L5 | W | H | H1 | H2 | H3 | D | D1 | D2 | D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.11t – 1.1t | 133.4 | 16.4 | 25.4 | 76.2 | 57.7 | 6.4 | 30.7 | 30.2 | 17.3 | 4.8 | 0.38 | 13.0 | 22.2 | 15.9 | 3.1 |
| 2.2t | 136.6 | 16.6 | 25.4 | 76.2 | 57.7 | 6.4 | 36.8 | 36.6 | 22.9 | 9.5 | 0.82 | 13.0 | 22.2 | 15.9 | 3.1 |
| 3t | 139.? | 16.7 | 25.4 | 79.2 | 57.9 | 39.0 | 36.6 | 22.9 | 9.5 | 15.0 | 22.2 | 15.9 | |||
| 4.4t | 171.5 | 16.7 | 38.1 | 95.2 | 73.8 | 42.9 | 42.9 | 29.4 | 11.0 | 19.5 | 34.9 | 22.2 | 3.1 |
Notes:
1) Error due to combined effect of non-linearity and hysteresis.
2) Sum of temperature-effect errors complies with OIML R60 and NIST HB44.
3) AL = Applied Load.
