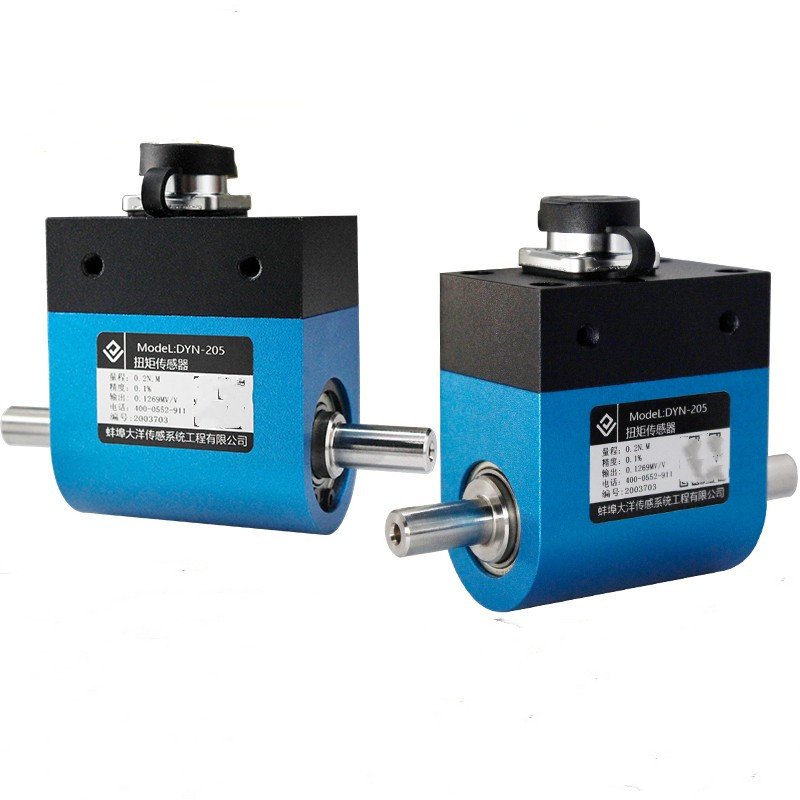

Rotary torque sensor DYN-205 series
Characteristic and Application fields
Resistance strain is an integrated product composed of sensitive elements and integrated circuits
High precision, stable and reliable performance
High speed and long time operation
Output positive and reverse torque signal.
Both ends are key connected.
The maximum speed shall not exceed 4000rpm
Dimension(mm)
| Capacity(N.m) | 0.1 | 0.2 | 0.3 | 0.5 | 1 | 2 | 3 | 5 |

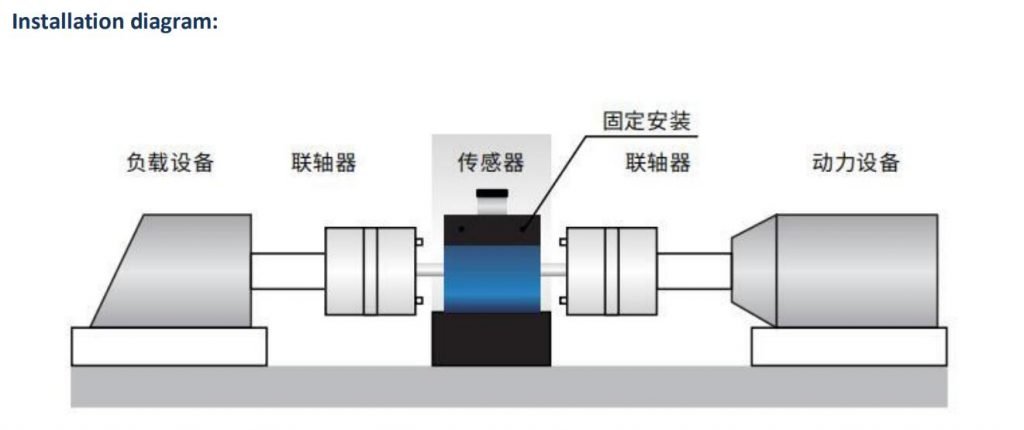

Force diagram
Technical parameter
| Capacity | 0-5N.m | Material | Stainless Steel |
| Speed Capacity | ≤4000rpm | Stability per year | 0.3%/year |
| Speed Signal
Zero Balance |
1.0~2.0Mv/v
±2% F.S. |
Load resistance | ＞2kΩ |
| Non-linearity | 0.1%F.S. | Working Voltage | DC24V 0.2A |
| Hysteresis | 0.03% F.S. | Current Consumption | ＜150mA |
| Repeatability | 0.03% F.S. | Work Environment | -10-50℃ 0-85%RH |
| Creep (30 Min) | 0.03% F.S. | Safe Overload | 200% |
| Temp Effect on output | 0.03% F.S./10℃ | Cable Specifications | Φ5*3m |
| Temp Effect on Zero | 0.1% F.S. /10℃ | Cable ultimate pull | 10kg |
| Response Time | 1.0ms(50%reaction) | ||
| Response frequency | 1kHz | ||
| Maximum torsion angle | 2.60*10rad(0.149°) | ||
| Moment of inertia | 0.38kgcm | ||
| Natural frequency of rotor vibration | 19.4kHz | ||
| Torsion constant | 3.85*10Nm/rad | ||
