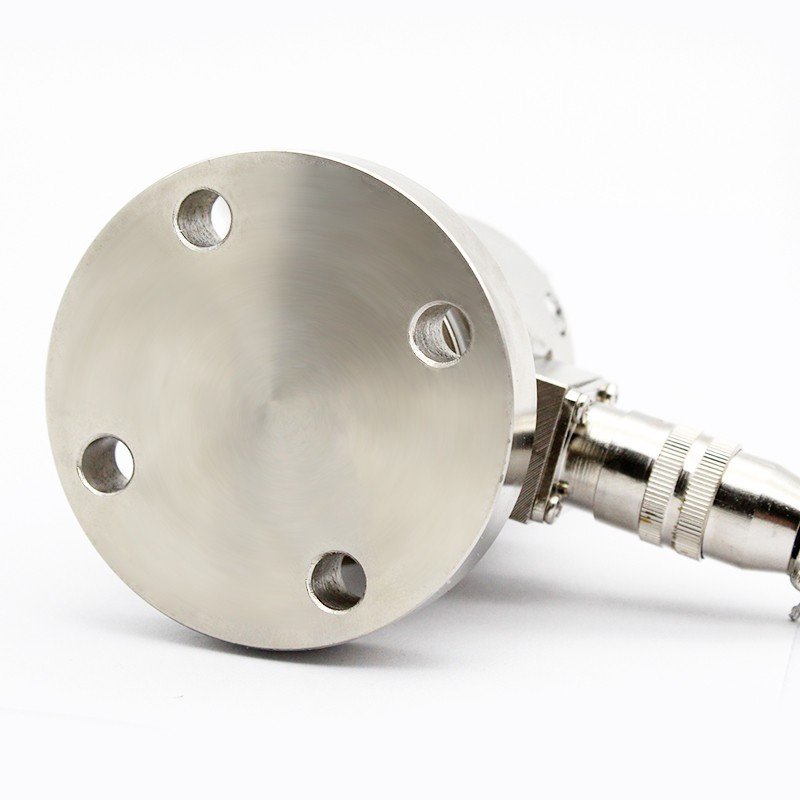

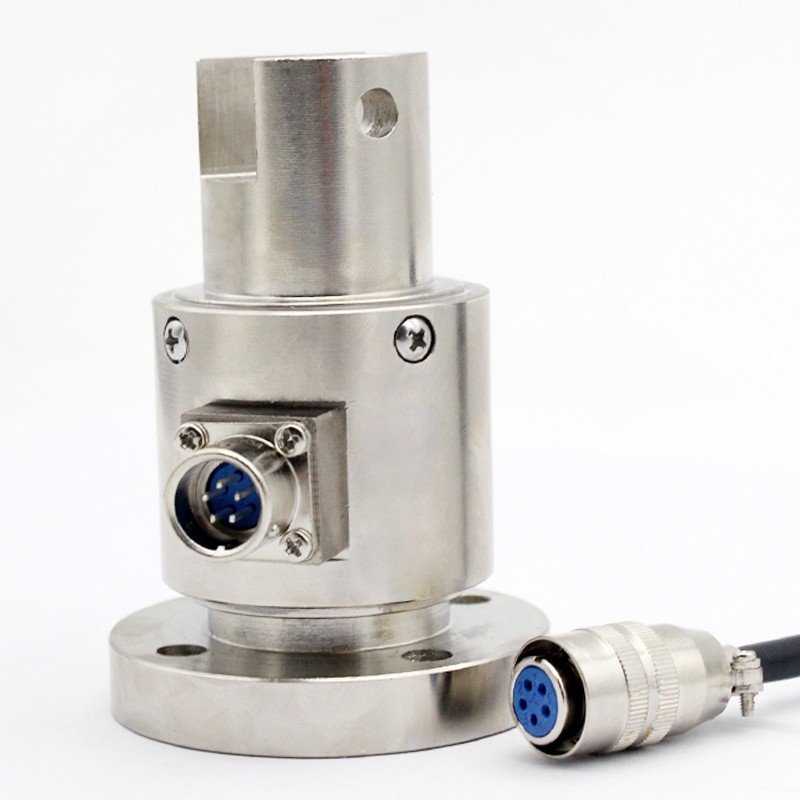

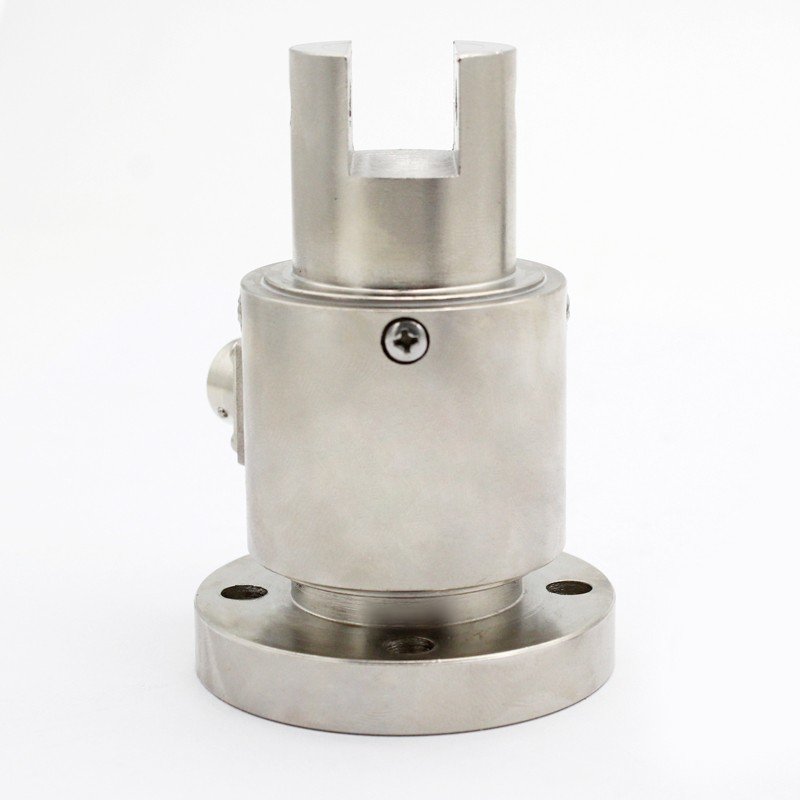

Reaction torque sensor DYJN-102 series
Characteristic and Application fields
Compact structure, easy to install, protection grade: IP65, used for torque measurement of static and non continuous rotation.
It is widely used in static torque testing system of testing machine, torque wrench, steering machine, electric actuator, valve and transmission.

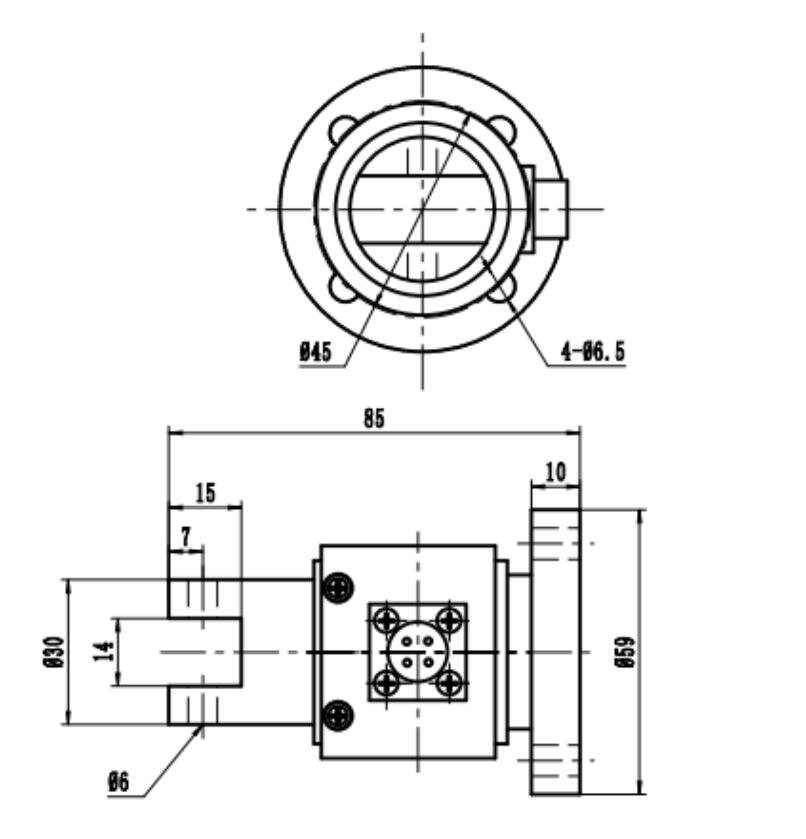

Dimension(mm)
| Capacity(N.m) | 10 | 20 | 30 | 50 | 100 | 200 |
Wiring diagram
Force diagram
Technical parameter
| Capacity | 0-200N.m | Material | Alloy Steel |
| Rated Output | 2.0±10%mV/V | Impedance | 350Ω |
| Zero Balance | ±2% F.S. | Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.3% F.S. | Recommended Excitation | 5-15V |
| Hysteresis | 0.1% F.S. | Operating Temp range | -20~80℃ |
| Repeatability | 0.1% F.S. | Safe Load Limit | 120% |
| Creep (30 Min) | 0.1% F.S. | Ultimate Load Limit | 150% |
| Temp Effect on output | 0.05% F.S./10℃ | Cable Specifications | Φ5*3m |
| Temp Effect on Zero | 0.05% F.S. /10℃ | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS Optional |
