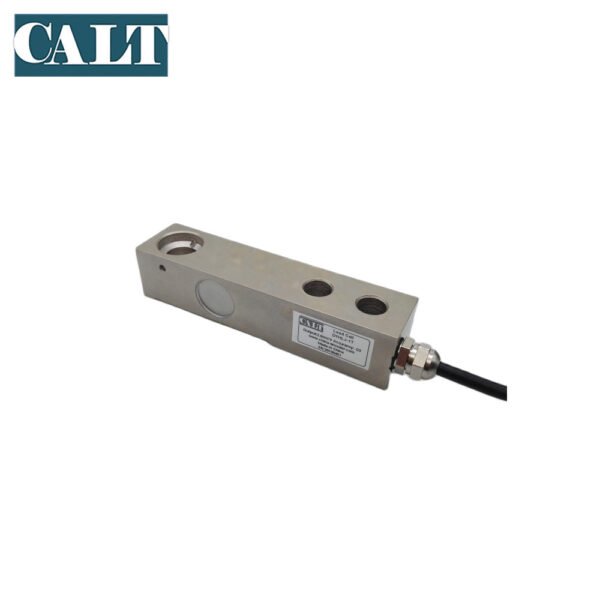

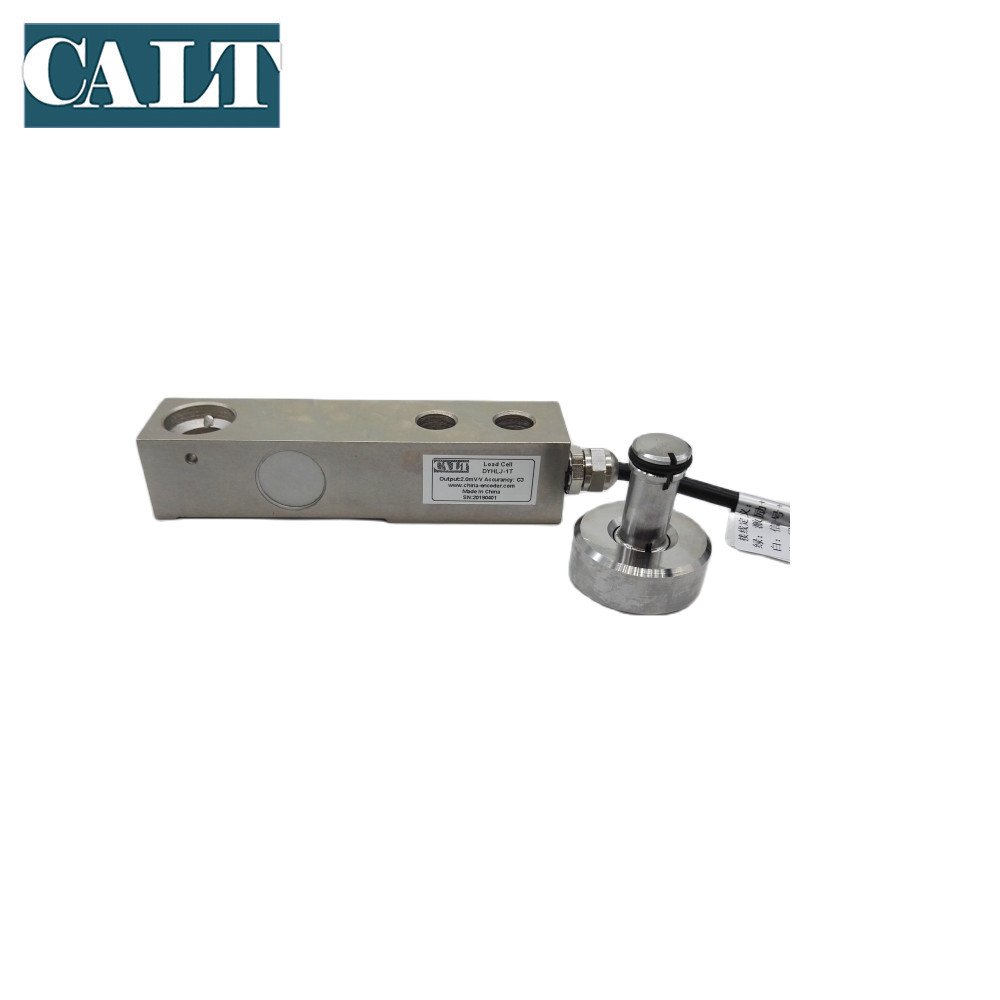

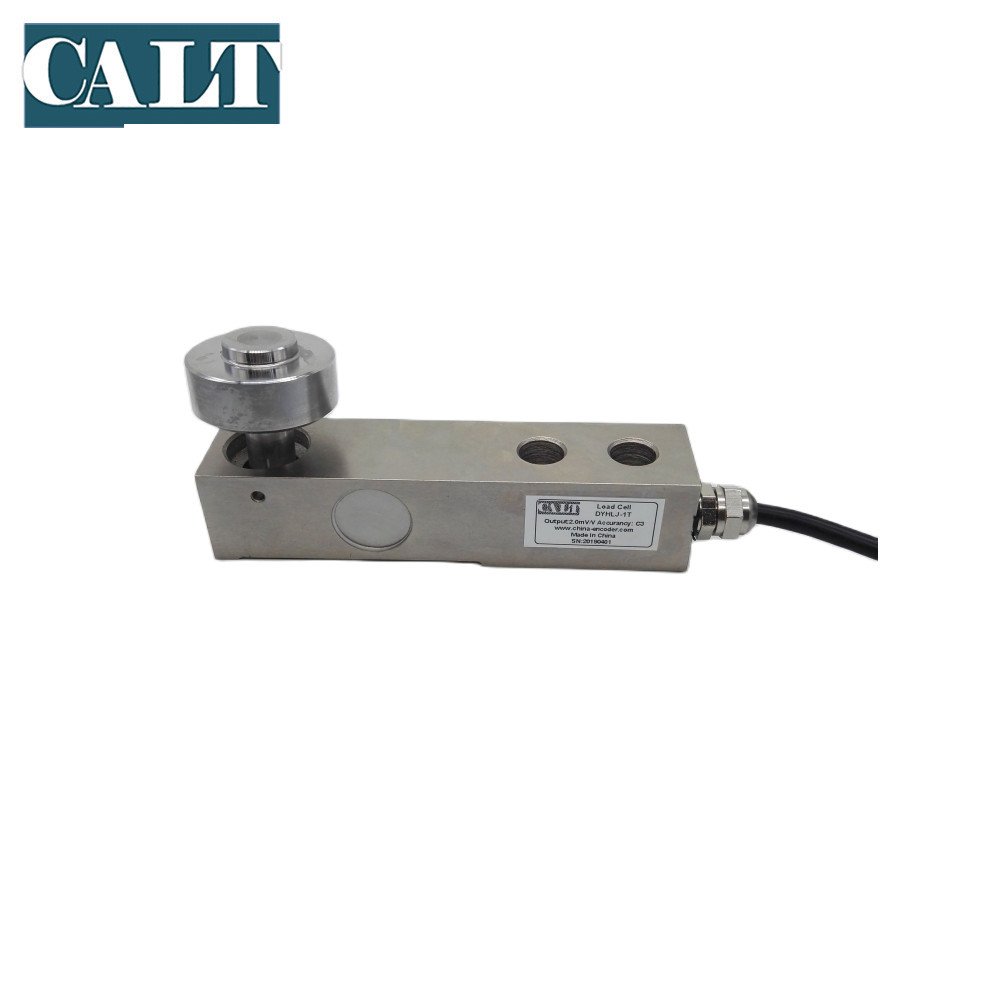

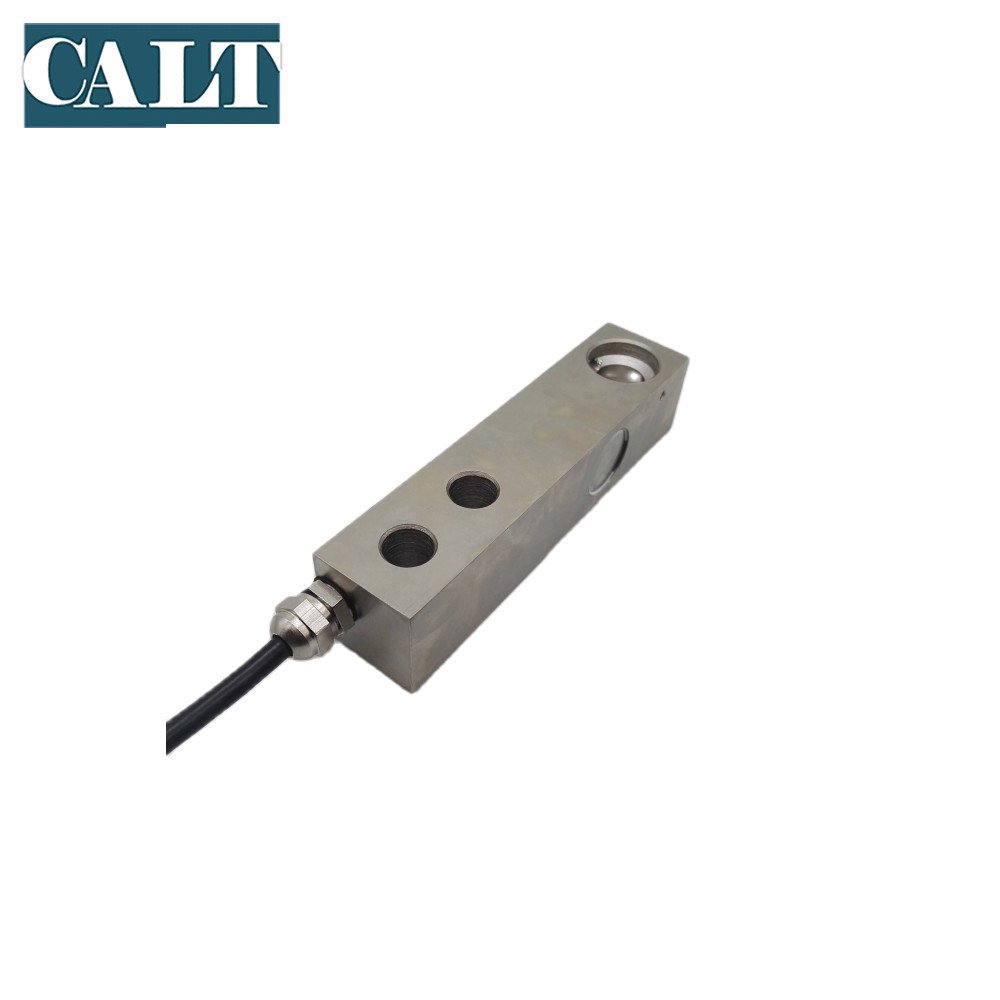

Characteristic and Application fields
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Universal materisl testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and othere tension and pressure testing instruments as well as automation equipment and testing field.

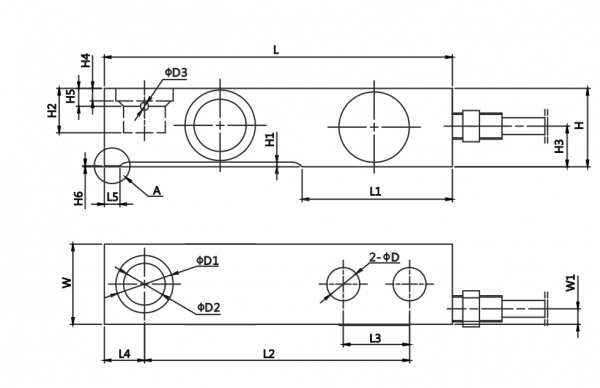

Dimension(mm)
| Capacity(T) | D | D1 | D2 | D3 | H | H1 | H2 | H3 | H4 | H5 |
| 0.25/0.5/1 | 12.7 | 22 | 15.9 | 3.1 | 30 | 1.9 | 17 | 15.9 | 4.7 | 7.7 |
| 2 | 12.7 | 22 | 15.9 | 3.1 | 36.6 | 2.8 | 23 | 19.6 | 9.5 | 11.7 |
| 3 | 15 | 22 | 15.9 | _ | 36.6 | 1.2 | 23 | 19.6 | 9.5 | 11.7 |
| 5 | 19 | 34.9 | 22.2 | 3.1 | 43 | 2 | 29.4 | 22.5 | 11 | 11.7 |
| Capacity(T) | H6 | L | L1 | L2 | L3 | L4 | L5 | W | W1 | |
| 0.25/0.5/1 | 0.38 | 133.4 | 57.6 | 101.6 | 25.4 | 15.4 | 6.4 | 30.7 | 5.2 | |
| 2 | 0.82 | 136.7 | 57.9 | 101.6 | 25.4 | 18.4 | 6.4 | 36.8 | 6 | |
| 3 | _ | 139.7 | 57.9 | 104.6 | 25.4 | 18.4 | _ | 39 | 6 | |
| 5 | _ | 171.5 | 73.8 | 133.3 | 38.1 | 21.5 | _ | 42.9 | 6 |
Wiring diagram

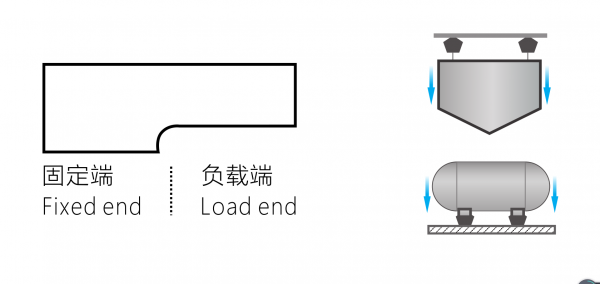

Force diagram

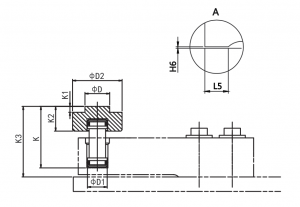

| Capacity (T) | K | K1 | K2 | K3 | D | D1 | D2 |
| 0.25-3 | 47.8 | 4.2 | 19.0 | 15.2 | 19.0 | 15.2 | 38.0 |
| 5 | 114.4 | 6.0 | 20.5 | 128.0 | 34.7 | 21.5 | 44.5 |
Technical parameter
| Parameter | Unit | Technical
Specifications |
Parameter | Unit | Technical
Specifications |
| Sensitivity | mV/V | 2.0±0.05 | Temperature coefficient of sensitivity | ≤%F·S
/10℃ |
±0.03 |
| Nonlinear | ≤%F·S | ±0.03 | Operating temperature range | ℃ | -20℃～+80℃ |
| Hysteresis | ≤%F·S | ±0.03 | Input resistance | Ω | 350±20Ω |
| Repeatability | ≤%F·S | ±0.02 | Output Resistance | Ω | 350±5Ω |
| Creep | ≤%F·S/30min | ±0.03 | Safe Overload | ≤%F·S | 150% F·S |
| Zero output | ≤%F·S | ±1 | Insulation resistance | MΩ | ≥5000MΩ(100VDC) |
| Zero temperature
coefficient |
≤%F·S/10℃ | ±0.05 | Excitation voltage | V | 5V-15V |
