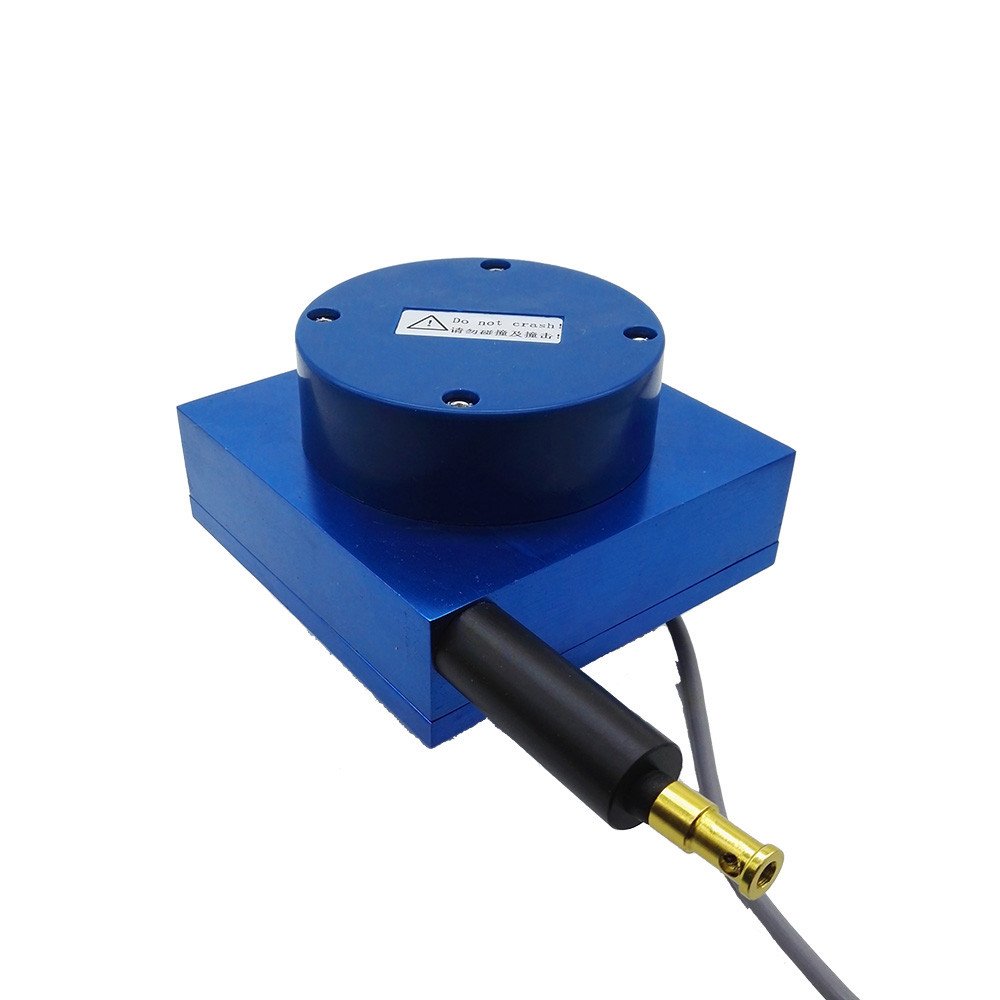

Draw wire encoder CESI-M5000 series
Features
*compact size, rugged construction, easy to install
*economic cost, and cost savings for customers
* Various signals output optional: push-pull, TTL, open collector and so on
*The cylinders, testing machines and other industry has achieved large-scale applications, reliability

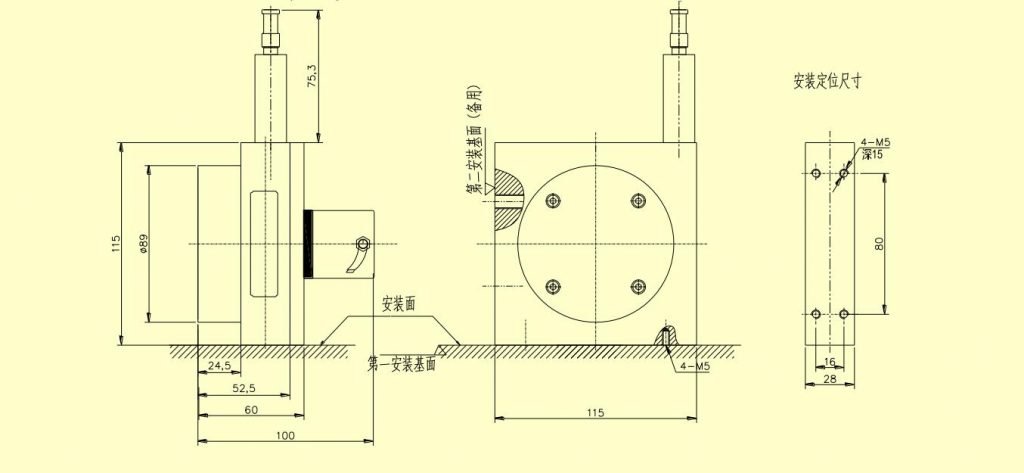

Dimension: (mm)

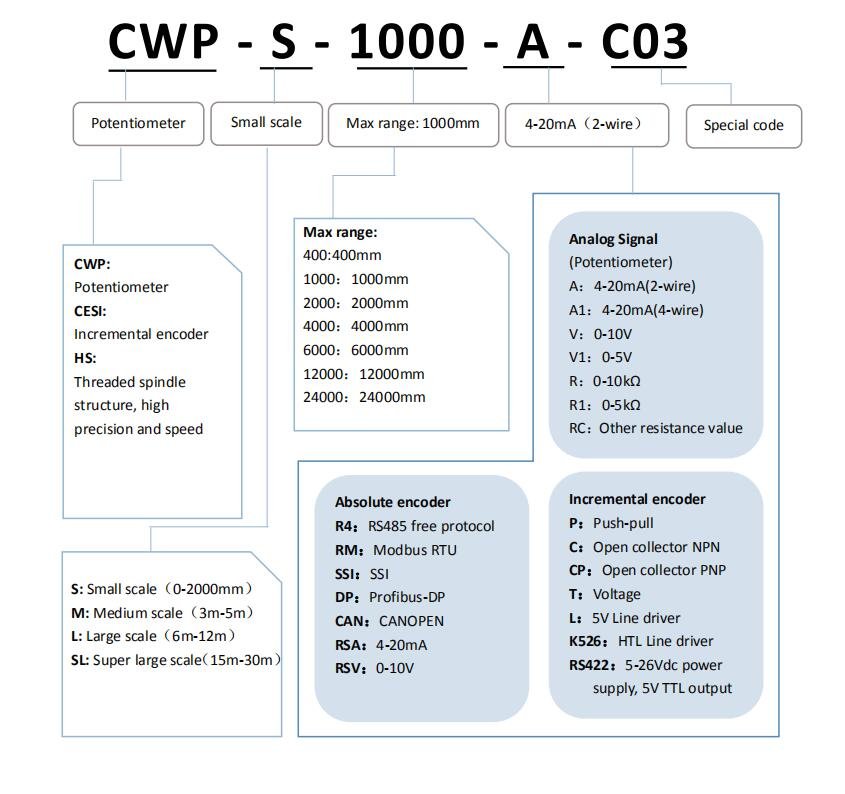

Technical Data
| Resolution | 0.1,0.05,0.04,0.08 mm / plus | Range | 0~5000mm |
| Detection method | Incremental encoder | Accuracy | +/-0.05%(full capacity),+/-1 pulse |
| Current consumption | ≤60mA | Operating Temperature | -20°C~80°C |
| Frequency response | 10K Hz to 50K Hz | Operating Humidity | 30~85% No condensation |
| Output signal | AB phase, ABZ in The phase | Supply voltage | 10-30V DC ,5V DC |
| Phase difference | A, B a difference of 90 degrees | Cable | 0.5M length, diameter4.5mm |
| Starting torque | <700g | Anti-shock | 20G，11ms |
| Circuit characteristics | voltage, current, push-pull, long-line drive output, open collector | rope specifications | rope 0.6-1.2mm, rope maximum load: 16KG |
| Degree of protection | IP65 | weight | 2.2kg |
| Pull speed | Max 600mm/s | ||
Connections
| Signal | A | B | Z | A- | B- | Z- | Vcc | GND |
| Color | Green | White | Yellow | Brown | Grey | Orange | Red | Black |
| Without inverted signal | Green | White | Yellow | – | – | – | Red | Black |
