WPS-XS String Pot Displacement Sensor
Description

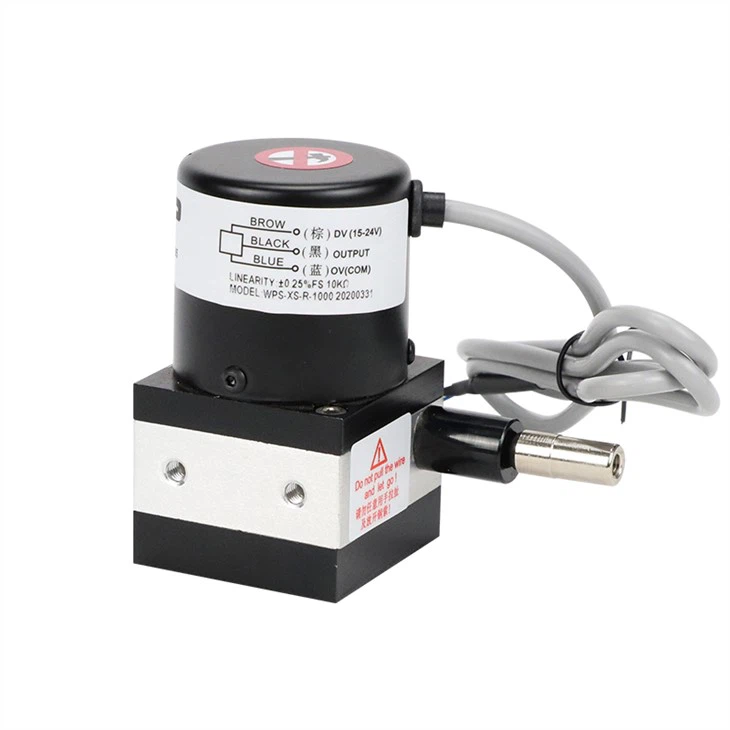

WPS-XS String Pot Displacement Sensor
Introduction
String pot displacement sensor is a ingenious combination ofrotary sensors and linear sensors,with longer sensing scope ,same measurement precise ,smaller structure ,which are widely adopted by customers from different fields .this series of sensors have sensing scope from 200mm to50000mm,with output of analog current signal 4~20mA,anolog voltage signal 0~5V or o~10V and digital pulse A,B,Z phase signal output. OEM orders are warmly welcome.
Technical parameter
| Working range | 100-1200mm |
| Linear precision | ±0.15% |
| Repeatability accuracy | ±0.02% |
| Resistance (±10%) | 5KΩ; 10 KΩ |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -40℃- +80℃ |
| Usage life | 5 million times |
| traction | 250±25g |
| Pull rope diameter | 0.8mm |
| Protection grade | IP65 |
| maximum quality | =300g |
Dimension
Application
- * Linear guideway systems: Draw wire displacement sensors can be used to measure the position and velocity of linear guideway systems, which are used in a wide range of applications, including machine tools, robotics, and automation systems.
- * Hydraulic cylinder systems: Draw wire displacement sensors can be used to measure the position and velocity of hydraulic cylinder systems, which are used in a variety of applications, including construction equipment, manufacturing machinery, and medical devices.
- * Testing machines: Draw wire displacement sensors can be used to measure the displacement and force of testing machines, which are used to test the properties of materials and components.
- * Extension systems: Draw wire displacement sensors can be used to measure the length of extension systems, which are used in a variety of applications, including forklifts, presses, and elevators.
- * Cable winches: Draw wire displacement sensors can be used to measure the length of cable winches, which are used to lift and lower loads.
- * Cranes: Draw wire displacement sensors can be used to measure the position and load of cranes, which are used to lift and move heavy objects.
- * Dam protection systems: Draw wire displacement sensors can be used to measure the height of dams, which is important for preventing flooding.
- * Door opening control systems: Draw wire displacement sensors can be used to control the opening and closing of doors, which is important for safety and security.
- * Other applications: Draw wire displacement sensors can be customized for a wide range of other applications, including measuring the displacement of robotic arms, the position of medical devices, and the height of buildings.
Package and delivery
