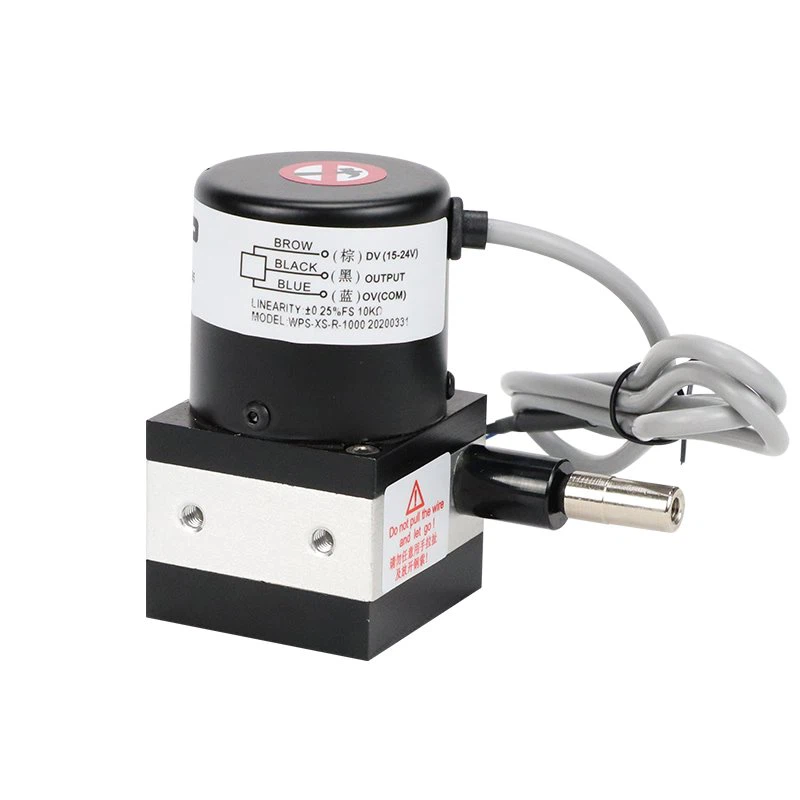

WPS-XS series short stroke draw wire potentiometer
Description
Short Stroke Draw Wire Potentiometer
Product introduction
WPS-XSseries short stroke draw wire potentiometer is our economical product, WPS-XS range is 100 ~ 1200 mm; The range of MT60 is 100 ~ 1500 mm; The range of MT80 is 200 ~ 3000 mm. The sensors are resistance output type and voltage output type (0-5V; 0-10V), current output (4-20mA, two-wire or three wire system), pulse output (AB phase or ABZ phase increment square wave), RS485 digital signal or absolute coding output. The sensor has the advantages of small size, high precision, easy installation and use, and is widely used in the automation industry.
Details of Short Stroke Draw Wire Potentiometer
Technical Data Sheet
| Working range | 100-1200mm | 100-1500mm | 200-3000mm |
| Model No. | WPX-XS | WPX-XS | WPX-XS |
| Linear precision | ±0.15%FS (Analog signal output or RS485 digital signal) ±0.05%F (Pulse signal output) | ||
| Repeatability accuracy | ±0.02%FS | ||
| Resistance (±10%) | 5KΩ; 10 KΩ | ||
| Resolution | Infinite | ||
| Max working voltage | 24V DC | ||
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal | ||
| Sensor type | Encoder | ||
| Max working speed | 1m/s | ||
| Usage temperature | -40℃~~ +80℃ | ||
| Usage life | 5 million times | ||
| Traction | 250±25g | ||
| Wire diameter | 0.8mm | ||
| IP grade | IP65 | ||
| Maximum quality | 300g | 500g | 900g |
Dimension / structure
