WPS-XS Draw Wire Encoder
WPS-XS Draw Wire Encoder

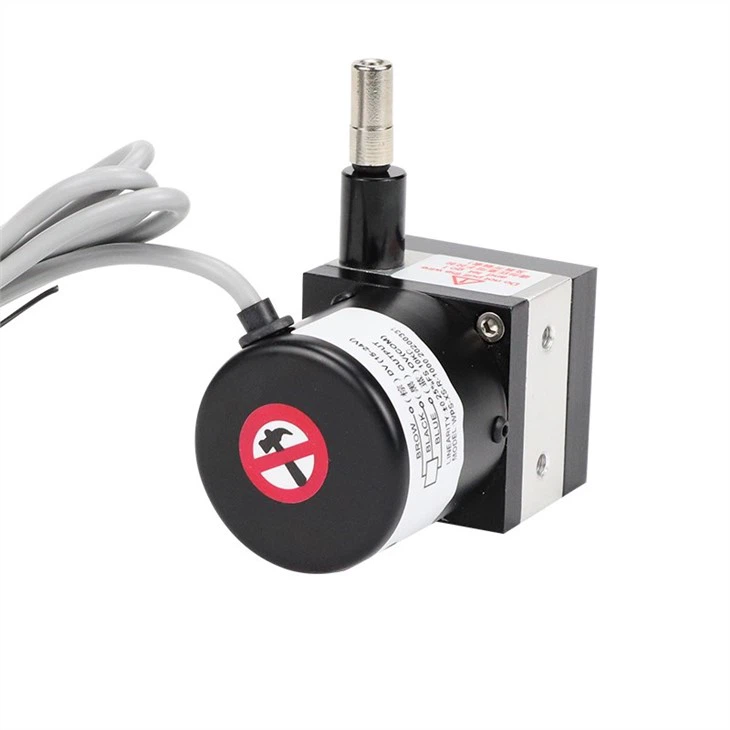

WPS Draw Wire Encoder series XS type miniature rope displacement sensor, measuring range 100mm—1200mm, sensor signal output, can be built-in transmitter module to output 0-5V, 0-10V voltage signal or 4-20mA two-wire current signal, also can be configured externally Transmitting module, output 4-20mA three-wire current signal or digital signal, XS pull rope displacement sensor is small in size, high in accuracy, and has good waterproof and dustproof performance. It can be used in the open air or in a humid environment for a long time.
Technical parameter
| Working range | 100-1200mm |
| Linear precision | ±0.15% |
| Repeatability accuracy | ±0.02% |
| Resistance (±10%) | 5KΩ; 10 KΩ |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -40℃- +80℃ |
| Usage life | 5 million times |
| traction | 250±25g |
| Pull rope diameter | 0.8mm |
| Protection grade | IP65 |
| maximum quality | =300g |

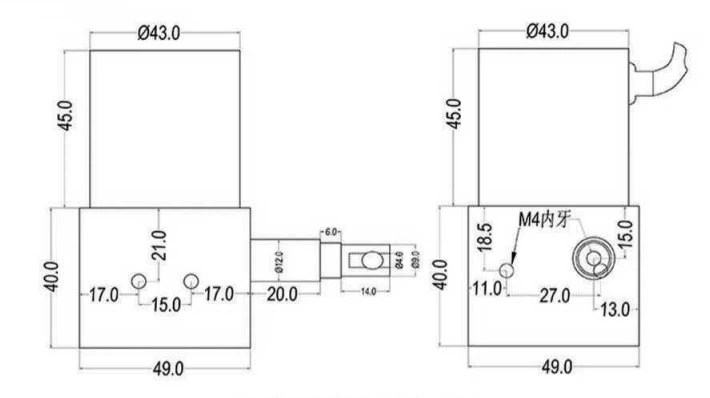

Dimension
Application
Draw Wire Encoder mainly applicable to: storage location positioning, reservoir dam protection, gate opening control, pressure machinery, paper making machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level controllers, construction machinery, industrial robots, injection machines, Woodworking machinery, elevators, air compressors, hydraulic machines, height machines, XY axis and other length displacements, liquid level measurement and other automated measurement occasions.
INSTALLATION
1.To install stainless steel wire,the angle of wire should be got proper and minimal,the allow tolerance is at+/-30.
2.To make sure that the hook of the stainless steel wire does not exceed the measurement range ,otherwise ,the wire will be to break off or you will get inferior accuracy.
3.The wire is stainless steel with fluorin coating.You will get inferior accuracy if the wire is damaged or stretched excessively.
4.You can move the linear sensor instead of the wire.
5.If your application is not linear motion,please set the pulley to smooth the rotation.
6.If the products work under serious environments,such as oil,water ,heavy dust,iron chipping or shavings or any powder can cause to hurt the wire,please make more protective cover or other equipment.
7The acceleration for MPS-S-P and MPS-M-P series is under 1m/sec.max;the acceleration for MPS-L-P and MPS series is under
