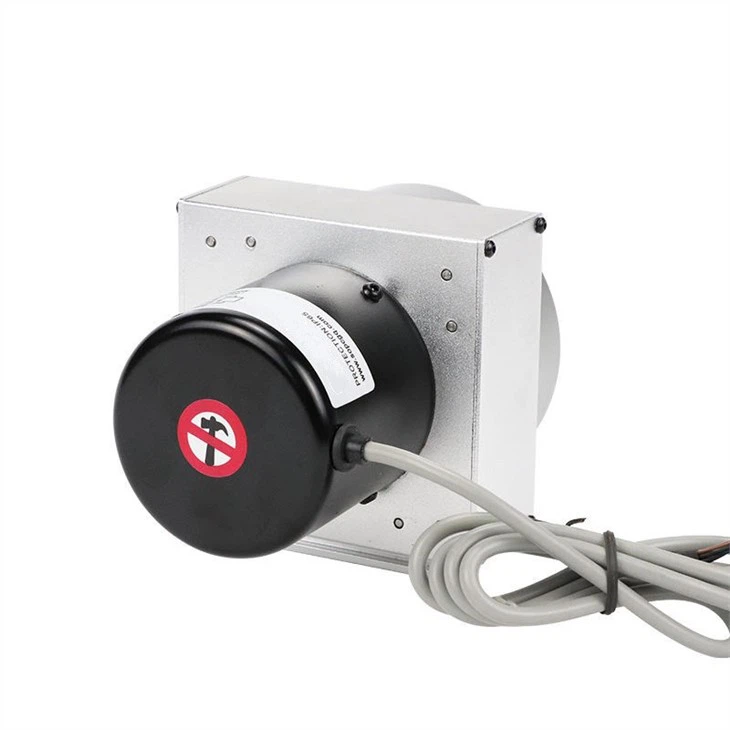

WPS Draw Wire Position Sensor
WPS draw rope displacement sensor, measuring range 100mm-30000mm, there are S type (small, 100-2500mm), M type (medium, 500-7500mm), L type (large, 7000-15000mm), XXS type (mini, 100-600mm) ), XS type (miniature, 100-1000mm), XL type (super large, 15000-30000mm). Sensor output signals are: resistance output(5K or 10K), voltage output (0-5V, 0-10V, three-wire system or four-wire system), current output (4-20mA, two-wire system, three-wire system or four-wire system; 0-20mA, two-wire system, three-wire system System or four-wire system), pulse output (AB phase or ABZ phase pulse square wave, differential signal output), RS485 digital signal output or absolute value encoding output.
Features:
1.Long service life, up to 5 million operations;
2.High accuracy, linear accuracy ±0.15%, repeatability accuracy ±0.02%, pulse output resolution up to 0.018mm;
3.Diverse models, multiple signal output options, convenient for system acquisition or long-distance transmission;
4. high protection level, waterproof type can be customized for outdoor use.
Technical parameter
Dimension
