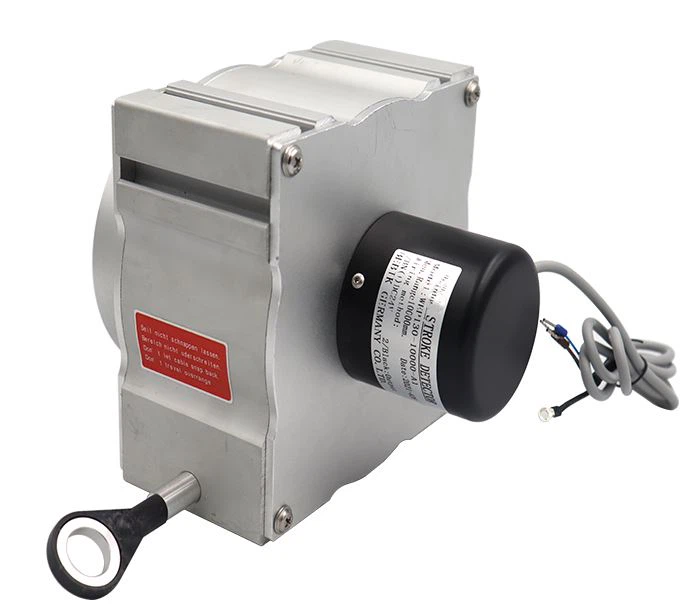

BRG SENSOR / WEP130 rope displacement sensor

WEP130 rope displacement sensor is a high-precision rope displacement sensor. The output signals of the sensor are: resistance Output, voltage output (0-5V; 0-10V), current output (4-20mA, two-wire or three-wire). (5-12 meters range)

Add to Wishlist

WEP130 rope displacement sensor

Description

WEP draw wire displacement sensor

Products Instruction

WEP130 draw wire displacement sensor is a high-precision rope displacement sensor. The output signals of the sensor are: resistance Output, voltage output (0-5V; 0-10V), current output (4-20mA, two-wire or three-wire). (5-12 meters range)

Main features :

Aluminum alloy body assure cell long life

Protection class IP65

High performances for accurate measurement

Wide range of measurement and dimensions

Sakae potentiometer

Analog and digital output optional

Technical parameter

No,	Range	Output signal	Linear precision	Repeat precision	Rope diameter	Max working spped	I P	Usage temperature	Usage life
s	100 – 2500mm	Resistance	± 0. 15 %	士0. 02%	0. 8mm	1m/s	IP65 (water proof type I P67 )	-40℃-+80℃	5 million times
		0-5v
		0-10V
		4-20MA
		RS485 digital signal	± 0.1%	士0.01%
		Incremental pulse output	± 0.05%	See the Schedule
M	500 – 7500 mm	Resistance	± 0. 15 %	± 0. 02%
		0- 5V
		0-10V
		4-20MA
		RS485 digital signal	± 0.1%	士0.01%
		Incremental pulse output	± 0.05%	See the Schedule
L	7000-12000mm	Resistance	土0 . 15 %	土0. 02%		0 . 5m / s
		0-5V
		0– 10 V
		4-20mA
		RS485 digital signal	± 0.1%	± 0 . 0 1%
		Incremental pulse output	± 0.05%	See the Schedule
XL	120 00– 30000mm	Resistance	土0 . 15 %	土0. 02%
		0-5V
		0 – 10 V
		4-20mA
		RS485 digital signal	± 0.1%	+ 0. 01%
		Incremental pulse output	± 0.05%	See the Schedule
XS	100-1000rrvn	Resistance	± 0. 15 % )	± 0. 02 %		1m/s	IP67
		0-5V(External module)
		0–10V(External module)
		4-20mA (External module
		RS485 (External module)	± 0.1%	士0.01%
xxs	100-600rrrn	Resistance	±0. 15 %	± 0. 02%
		0-5V
		0- 10 V
		4-20mA
		RS485 (External module)	± 0.1%	士0.01%

Dimension (mm)

For this model , 5-12meters working range , the size is same

WEP

Wire connection

wire connection

Application :

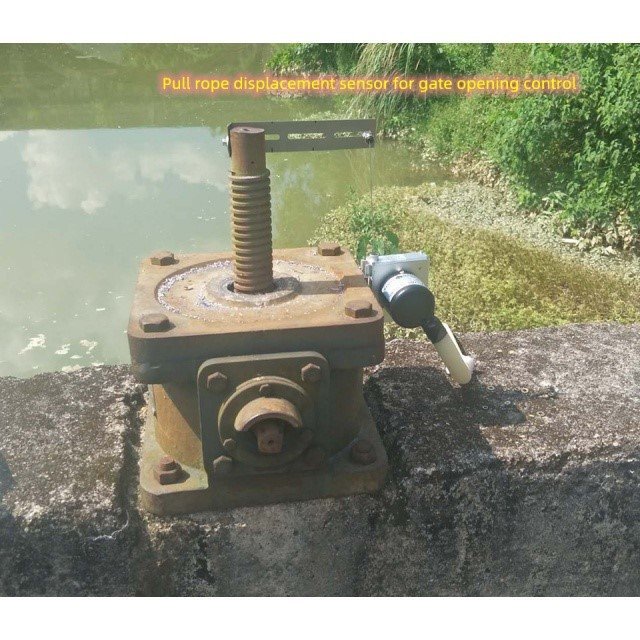

Mainly used for: Storage location positioning, reservoir dam protection, gate opening control, pressure machinery, sheet metal machinery, packaging machinery, printing machinery, elevators , Air compressor, hydraulic press, height machine, X-Y axis and other automatic measurement occasions such as length displacement, liquid level measurement.
