Small String Potentiometer
Small String Potentiometer

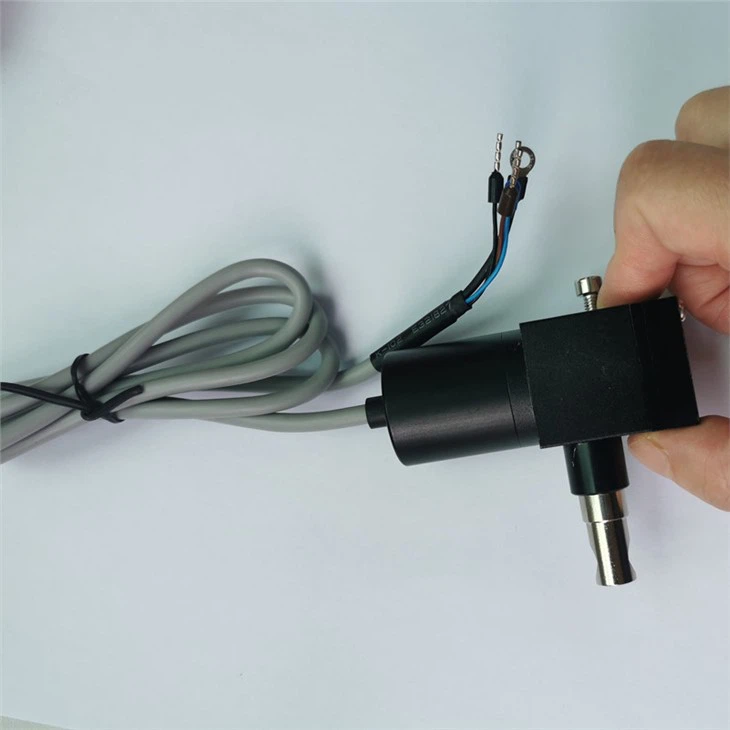

BRG-XXS Small string potentiometer, small size, high precision, compact structure, waterproof and dustproof. An external signal transmission module can be connected to output standard analog signal 0-10V, 4-20mA or digital signal, which is convenient for long-distance transmission or system acquisition.
1. Long service life, up to 5 million times of operation
2. High precision, linear accuracy ±0.15%,repeatability accuracy ±0.02%.
3. Various models, a variety of signal output is optional, convenient system acquisition or long-distance transmission.
4. High protection level, can be used in the open air or in shallow water.
5. Shell Anodized aluminum
6. Assembly: screws fixed, easy to install
Performance Parameter:
| Working range | 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 550mm, 600mm |
| Linear precision | ±0.15% |
| Repeatability accuracy | ±0.02% |
| Resistance (±10%) | 5KΩ; 10 KΩ |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -40℃- +80℃ |
| Usage life | 5 million times |
Dimension (mm)
Wire Connection
Storage positioning , screw machines, paper machines, sewing machines, sheel metal machines, printing machins, horizontal control machines, industial robot, and so on.
