Single point load cell BRG320
Product Introduction

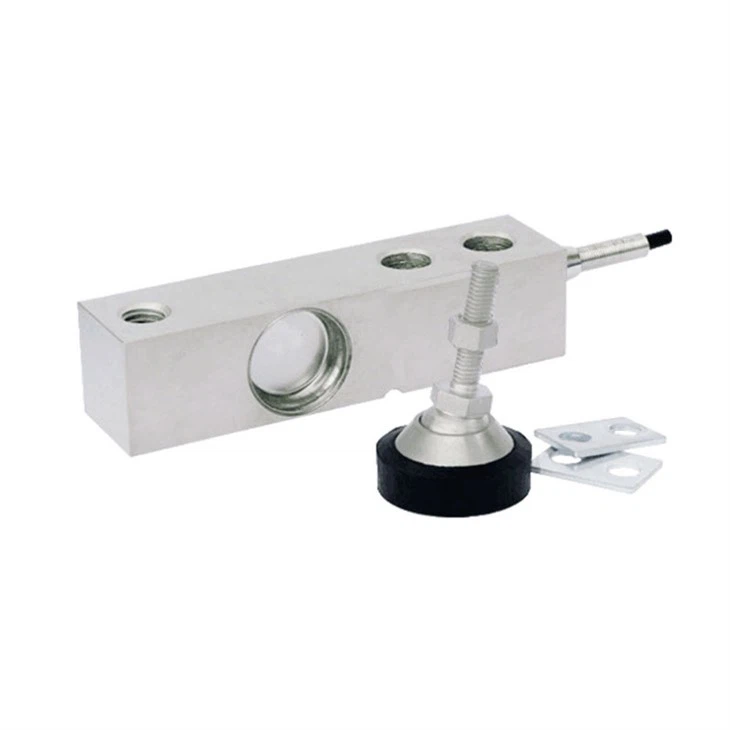

Single point load cell, also known as shear beam load cells, are generally rectangular in shape, with the strain zone located in the center of the sensor. They typically have two fixing holes at the rear end and a pressure-bearing attachment at the front end, ensuring they can effectively bear weight. Cantilever beam steel load cells are fixed at one end and loaded at the other. They utilize steel balls for force transmission, upper and lower load heads, or a dual-ball design with a robust seal. They automatically align when subjected to force, are easy to install, convenient to use, and offer excellent interchangeability.
1. The elastic element utilizes a shear (or bending) cantilever beam structure, offering low height and high structural strength.
2. It is resistant to fatigue and eccentricity, offers high measurement accuracy, and provides stable and reliable performance.
3. It is easy to install and use.
4. Connection method: Press or pull
Product parameters
| Model | BRG-320C |
| Capacity | 50,100,200,250,500,1000,2000,3000 KG |
| Related output | 2.0± 0.04 MV/V |
| Accuracy class | C3 |
| Maxlmum number of verification intervals | 3000n max |
| Minimum load cell verification intervals | E Max/7500 V min |
| Combined erro | ≤ ±0.02 %RO |
| Creep | 0.02 %RO/ 30min |
| Temperature effect on sensitivity | 0.0016 %RO /℃ |
| Temperature effect on zero | 0.002%RO /℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 365± 10 Ω |
| Output resistance | 350± 3Ω |
| Insulation resistance | 5000MΩ (50V) |
| Recommended excitation voltage | 5~ 12V |
| Compensated temperature range | -10 ~+40 ℃ |
| Operating temperature range | -35 ~+80 ℃ |
| Safe overload | 150 %RO |
| Ultimate overload | 200 %RO |
| Load cell material | Alloy steel / stainless steel |
| Connecting cable | Φ 5.7X3.5m |
| Protection level | IP67 |
Product Size(mm)
Surface Treatment
The surface is anodized for a lustrous finish. Silicone protection provides moisture resistance, significantly enhancing the product’s durability in harsh environments. The surface is rich and corrosion-resistant.
Cable Selection
The signal cable is made of oxygen-free copper to prevent various high-frequency and wireless wave interference.
Application
Platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales, etc.
