Features :
Alloy steel & stainless structure;
Bellows hermetically sealed by laser;
nickel plated, waterproof and anti-corrosion;
suitable for multiform environments;
Product Size(mm)
Product parameters
Details
Installation
Application

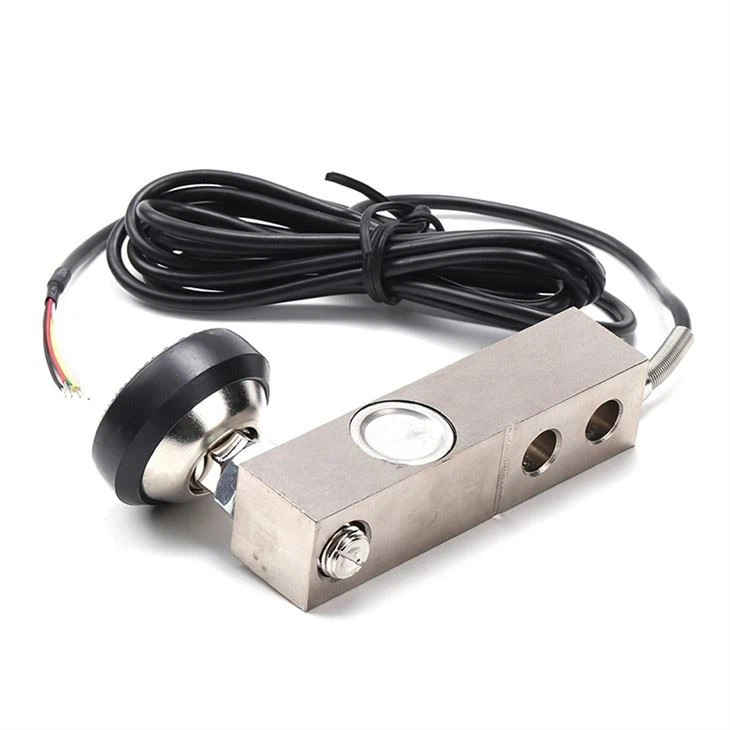

Single ended shear beam load cell is suitable for electronic platform scales, hopper scales, and other electronic weighing devies
Features
용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel，stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67/IP68
용량：5, 10, 20, 50, 100kN
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Capacity: 550 kg–4.4 t
Material: High-quality stainless steel
Type: Shear Beam
Protection Rating: IP68
Suitable for platform scales, dosing systems, and process control applications in the chemical, food, pharmaceutical, and other industrial sectors.
용량：0.22, 0.55, 1.1, 2.2, 4.4t
재질 : high-quality stainless steel
타입 : Shear Beam
보호등급 : IP68
용량：200, 300, 500, 1,000kg, 2t, 3t, 5t
재질 : Stainless steel (Metric thread)
타입 : S-Beam
보호등급 : IP66/IP68
용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel，stainless steel optional
타입 : Shear Beam
보호등급 : IP67,IP68
Features
용량：550kg, 1.1, 1.76, 2.2, 4.4t
재질 : high-quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
용량：10, 25, 30, 50, 75, 100, 150, 250klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：0.5, 1, 2, 3, 5t
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
용량：0.5, 1, 2, 3, 5t
재질 : stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
용량：50, 75, 100klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
