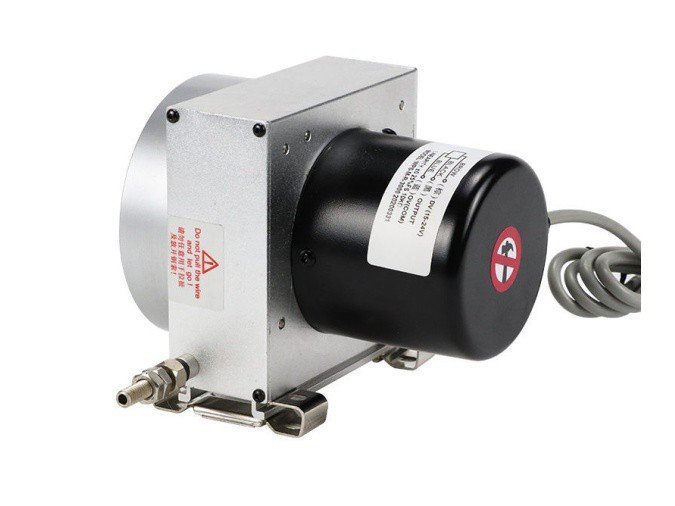

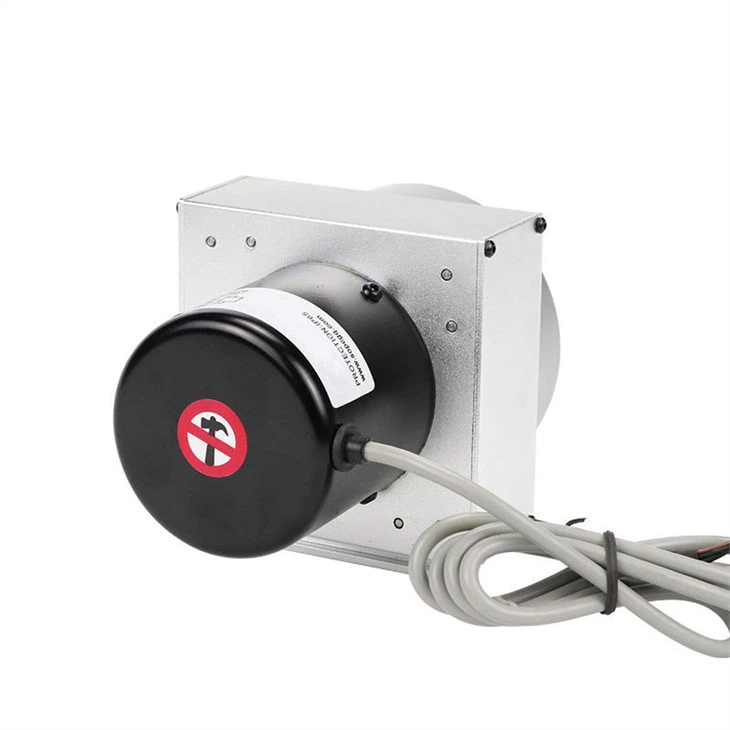

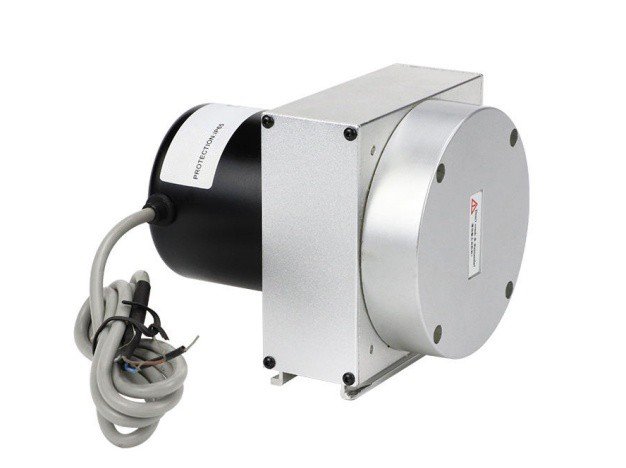

MPS Wire Rope Sensor
The MPS wire encoder measures position from 100mm to 30,000mm. It comes in various sizes (mini to super large) and offers diverse output options: resistance, voltage (0-5V, 0-10V), current (4-20mA), pulse (AB/ABZ), RS485 digital, and absolute value encoding. Compact, stable, and easy to use, it’s ideal for the automation industry.
- Aluminum alloy body ensures extended cell longevity
- S/M/L/XL sizes available to accommodate diverse applications
- IP65 protection gradefor reliable operation in challenging environments
- Uncompromising performance for precise and accurate measurement
- Wide measurement range and dimensions to suit various needs
- Sakae potentiometer for enhanced precision and reliability
- Analog and digital output options for flexible system integration
By incorporating these advanced features and capabilities, the sensor delivers exceptional performance, reliability, and versatility, making it an ideal choice for a wide range of industrial and automation applications.
Technical parameter
| No, | Range | Output signal | Linear precision | Repeat precision | Rope diameter | Max working spped | I P | Usage temperature | Usage life | |
|
s |
100 – 2500mm |
Resistance |
± 0. 15 % |
士0. 02% |
0. 8mm |
1m/s |
IP65 (water proof type I P67 ) |
-40℃-+80℃ |
5 million times |
|
| 0-5v | ||||||||||
| 0-10V | ||||||||||
| 4-20MA | ||||||||||
| RS485 digital signal | ± 0.1% | 士0.01% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
M |
500 – 7500 mm |
Resistance |
± 0. 15 % |
± 0. 02% |
||||||
| 0- 5V | ||||||||||
| 0-10V | ||||||||||
| 4-20MA | ||||||||||
| RS485 digital signal | ± 0.1% | 士0.01% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
L |
7000-12000mm |
Resistance |
土0 . 15 % |
土0. 02% |
0 . 5m / s |
|||||
| 0-5V | ||||||||||
| 0– 10 V | ||||||||||
| 4-20mA | ||||||||||
| RS485 digital signal | ± 0.1% | ± 0 . 0 1% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
XL |
120 00– 30000mm |
Resistance |
土0 . 15 % |
土0. 02% |
||||||
| 0-5V | ||||||||||
| 0 – 10 V | ||||||||||
| 4-20mA | ||||||||||
| RS485 digital signal | ± 0.1% | + 0. 01% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
XS |
100-1000rrvn |
Resistance |
± 0. 15 %
) |
± 0. 02 % |
1m/s |
IP67 |
||||
| 0-5V(External module) | ||||||||||
| 0–10V(External module) | ||||||||||
| 4-20mA (External module | ||||||||||
| RS485 (External module) | ± 0.1% | 士0.01% | ||||||||
|
xxs |
100-600rrrn |
Resistance |
±0. 15 % |
± 0. 02% |
||||||
| 0-5V | ||||||||||
| 0- 10 V | ||||||||||
| 4-20mA | ||||||||||
| RS485 (External module) | ± 0.1% | 士0.01% | ||||||||
Schedule:
| Working range | Resolution |
| 0- 700mm | 0. 018mm ( 65线轮) |
| 0- 1000mm | 0. 028mm ( 100 线轮) |
| 1000- 1200mm | 0. 033mm |
| 1200- 1500mm | 0. 042mm |
| 1500- 2500mm ( S ) | 0. 044mm |
| 2000-7000mm ( M) | 0. 055mm |
Note: The above table is the parameters of 3600 pulse pull rope displacement sensor. Other commonly used encoders are: 500 pulses \ 1000 pulses,2000 pulses, 2500 pulses, please contact us for specific parameters.
Dimension (mm)
Pull rope displacement sensor and its working principle
The rope displacement sensor is also called the rope sensor, the rope electronic ruler, and the rope encoder. The cable displacement sensor is an exquisite structural composition of a linear displacement sensor. It fully combines the advantages of an angle sensor and a linear displacement sensor to become a sensor with small installation size, compact structure, large measurement stroke, and high accuracy. The stroke ranges from several hundred It ranges from millimeters to tens of meters.
The function of the rope displacement sensor is to convert mechanical motion into electrical signals that can be measured, recorded or transmitted. The cable displacement sensor consists of a stretchable stainless steel rope wrapped around a threaded hub, which is connected to a precision rotation sensor. The sensor can be an incremental encoder, an absolute (independent) encoder, a hybrid or Conductive plastic rotary potentiometer, synchronizer or resolver.
