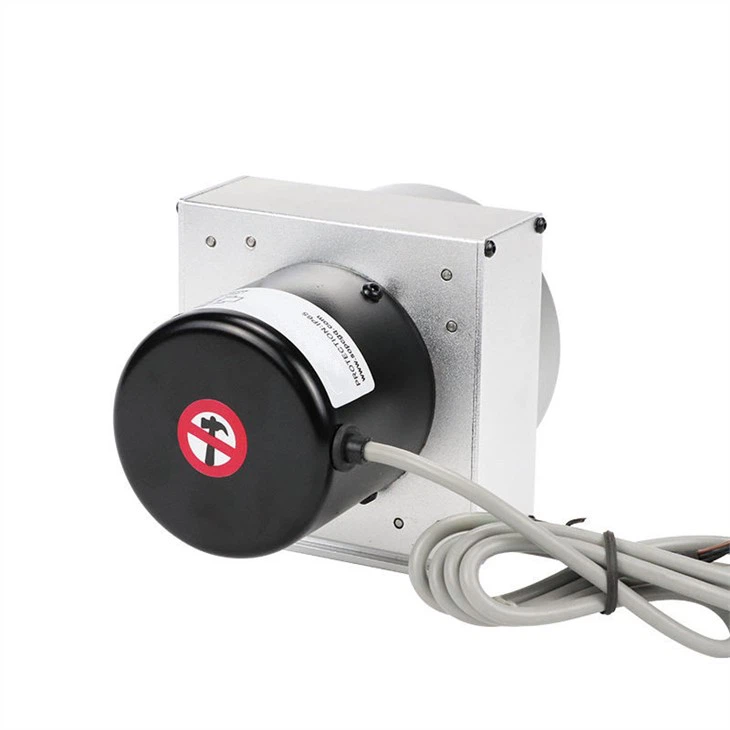

MPS String Potentiometer Displacement Sensor
MPS String Potentiometer Displacement Sensor
MPS draw-wire displacement sensors offer measuring ranges from 100mm to 30,000mm, available in six sizes: XXS (100–600mm), XS (100–1000mm), S (100–2500mm), M (500–7500mm), L (7000–15000mm), and XL (15000–30000mm).
Available output options include resistance (5K/10K), voltage (0–5V, 0–10V), current (4–20mA or 0–20mA), pulse (AB or ABZ phase), RS485 digital, and absolute encoder output.
With compact design, high stability, and easy installation, these sensors are widely used in industrial automation and position measurement applications.
- Durable Performance: Service life of up to 5 million cycles for long-term reliability.
- High Precision: Linear accuracy ±0.15%, repeatability ±0.02%, and resolution up to 0.018mm.
- Versatile Options: Available in multiple models with various signal outputs for flexible system integration.
- Reliable Transmission: Supports both local data acquisition and long-distance signal output.
- Rugged Design: High protection level, with customizable waterproof versions for outdoor applications.
Technical parameter
| No, | Range | Output signal | Linear precision | Repeat precision | Rope diameter | Max working spped | I P | Usage temperature | Usage life | |
|
s |
100 – 2500mm |
Resistance |
± 0. 15 % |
士0. 02% |
0. 8mm |
1m/s |
IP65 (water proof typeI P67 ) |
-40℃-+80℃ |
5 million times |
|
| 0-5v | ||||||||||
| 0-10V | ||||||||||
| 4-20MA | ||||||||||
| RS485 digital signal | ± 0.1% | 士0.01% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
M |
500 – 7500 mm |
Resistance |
± 0. 15 % |
± 0. 02% |
||||||
| 0- 5V | ||||||||||
| 0-10V | ||||||||||
| 4-20MA | ||||||||||
| RS485 digital signal | ± 0.1% | 士0.01% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
L |
7000-12000mm |
Resistance |
土0 . 15 % |
土0. 02% |
0 . 5m / s |
|||||
| 0-5V | ||||||||||
| 0– 10 V | ||||||||||
| 4-20mA | ||||||||||
| RS485 digital signal | ± 0.1% | ± 0 . 0 1% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
XL |
120 00– 30000mm |
Resistance |
土0 . 15 % |
土0. 02% |
||||||
| 0-5V | ||||||||||
| 0 – 10 V | ||||||||||
| 4-20mA | ||||||||||
| RS485 digital signal | ± 0.1% | + 0. 01% | ||||||||
| Incremental pulse output | ± 0.05% | See the Schedule | ||||||||
|
XS |
100-1000rrvn |
Resistance |
± 0. 15 %
) |
± 0. 02 % |
1m/s |
IP67 |
||||
| 0-5V(External module) | ||||||||||
| 0–10V(External module) | ||||||||||
| 4-20mA (External module | ||||||||||
| RS485 (External module) | ± 0.1% | 士0.01% | ||||||||
|
xxs |
100-600rrrn |
Resistance |
±0. 15 % |
± 0. 02% |
||||||
| 0-5V | ||||||||||
| 0- 10 V | ||||||||||
| 4-20mA | ||||||||||
| RS485 (External module) | ± 0.1% | 士0.01% | ||||||||
Dimension (mm)
Application
Mainly used for: storage location positioning, reservoir dam protection, gate opening control, pressure machinery, papermaking machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level controller, construction machinery, industrial robots, injection machines, Woodworking machinery, elevators, air compressors, hydraulic presses, height machines, X-Y axis and other length displacement, liquid level measurement and other automatic measurement occasions.
Package
We pack it with foam side and small paper box . It will be safe for long distance delivery .
