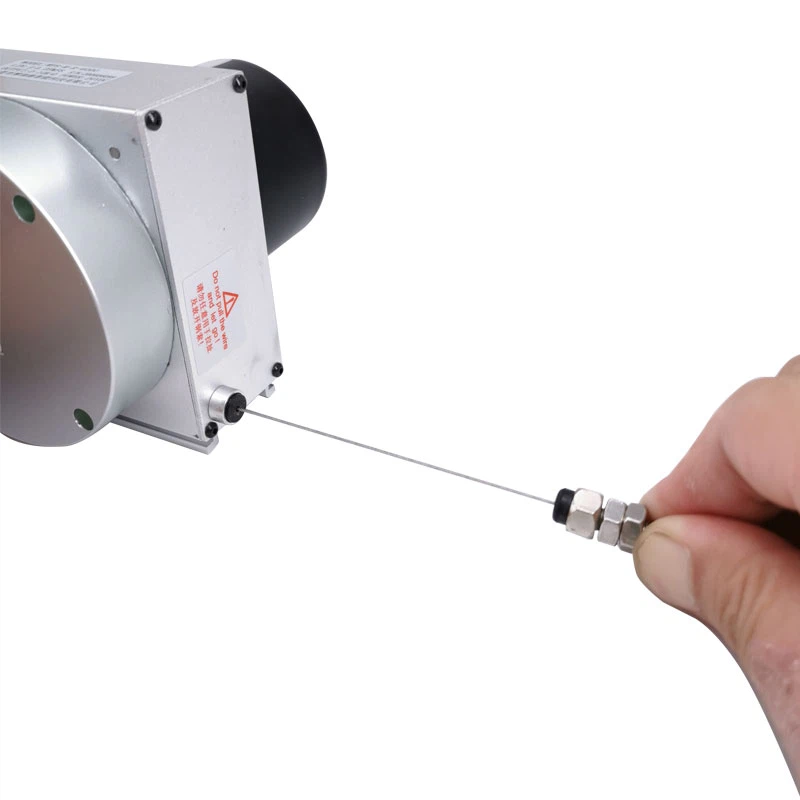

MPS Draw Wire Transducer
MPS Draw Wire Transducer
The Draw Wire Transducer, also known as a cable ruler, cable encoder, or cable displacement sensor, is a sophisticated integration of linear displacement sensor technology. It combines the benefits of both angle sensors and linear displacement sensors, resulting in a compact, high-precision sensor with a long measuring stroke and minimal installation space.
The WPS series of cable displacement sensors offer a wide range of options, including analog current signals (resistance, 4-20mA), analog voltage signals (0-5V, 0-10V), and pulse signals (P: A, B, Z phase digital output). These sensors are designed to meet diverse customer needs, with the ability to accept orders for custom specifications.
Features
1.Compact design with minimal installation space required.
2. Long measuring stroke with high precision (0.1% FS) and IP65 protection rating.
3. The outer casing and reel are corrosion-resistant, while the stainless steel traction rope is coated with Teflon, allowing it to operate in harsh environments.
4. Available output options include resistance, voltage, current, incremental pulse, and absolute pulse types.
Parameter Table
Dimension
Other Dimensions
