KTF Slide type position tracking sensor is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long lasting conductive track.

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

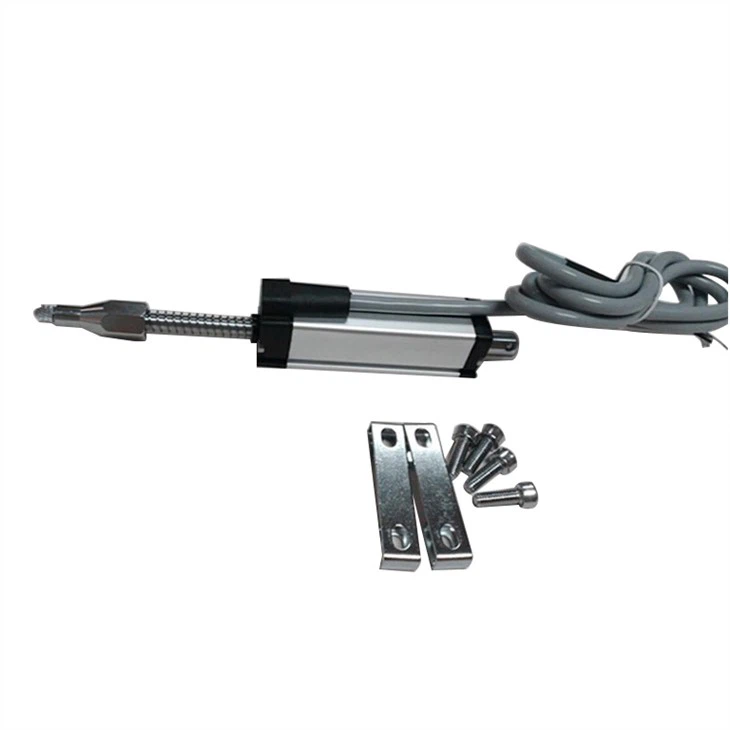

The linear position transducers have a 12 mm cylindrical section case, 4 mm diameter shaft and two fixing ball joints at the ends.

1. Usage life is longer, Times could reach Thirty Million
2. Linear Excellent
3. Resolution Rate is Higher Than 0.01mm
4. High Speed
5. Din 43650 Standard Plug And socket
6. Protection Grade is IP65
7. Could Equip with voltage and current （2Line,3line）module

Long stoke scaler KTF 2M linear potentiometer for large Injection molding machine Features: * Stroke lengths available from 75mm to 3500mm * Slide type position sensor * High performance and reliability even under extreme temperature and vibration * High speed operation * Resolution better than…

KTF Slide type position tracking sensor is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long lasting conductive track.

KTF Slide type position tracking sensor is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long lasting conductive track.

KTM high precision industrial position sensors 5k ohm measuring stoke up to 300mm Small KTM sensor introduce KTM industrial position sensors is for mini pulling rod series linear position sensor. The working stroke si for 10-300mm, both end have 2mm bounce-back stroke. KTM linear precision is…

KTC Resistive Rod Electronic Ruler linear travel sensor KTC Resistive Rod Electronic Ruler linear travel sensor with conductive plastic element are designed for the displacement or length measurement and are available in different stroke lengths up to 1250mm. The sensors give infinite resolution…

KPM Series of linear potentiometer transducer are used to used to measure and track the linear motion or position of a target. They are designed to withstand the harsh environment of motorsport and automotive testing, structural and architectural testing, and robotics applications.

KPM Series of linear potentiometer transducer are used to used to measure and track the linear motion or position of a target. They are designed to withstand the harsh environment of motorsport and automotive testing, structural and architectural testing, and robotics applications.

The miniature Linear potentiometer with Rod End Joints is used to measure and track the linear motion or position of a target. The mini articulated design is especially suitable for mounting in instruments or machines with limited space.
