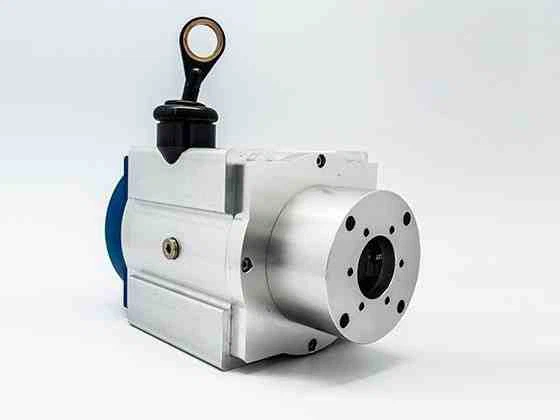

Long Working Range Draw-wire Encoders
Description
Long Working Range Draw-wire Encoders
The maximum measuring stroke of the BRG-9005 rope displacement sensor is 5000mm. It is a high-end brand product launched by us. This product adopts large-diameter multi-strand steel wire rope and independent automatic winding spiral structure, which completely eliminates the wire jamming and breaking failures of imported products. It is mainly suitable for high precision, long life and harsh working environment. It is at the leading level internationally and can completely replace imported products.
Technical Parameters
| Range | 0~5000mm |
| Output signal | Differential, open circuit, push-pull, voltage,
RS485/232, absolute value |
| Measuring wheel circumference | 333mm |
| Linear accuracy | ＜0.05% FS |
| Working Temperature | -25°C~85°C |
| Repeatability | 0.01% FS |
| Dust-proof cable head | Silicone dust cover |
| Working voltage | DC5~24V 10-30v |
| Waterproofing of pull cord | Grease |
| Wire Rope | 1.2MM high-flexibility imported steel wire rope |
| IP grade | IP54 or IP65 |
| Shell material | Aluminum alloy precision mold, anti-static interference and non-conductive surface |
| Working life | 2 million times |
| Working voltage | 5V,5-24V,10-30v |
| Winding method | Threaded stepping automatic winding |
| Max speed | 4000mm/s or other customized optional |
| pull | 15N±5N |
Dimension (mm)
