Linear Position Transducers

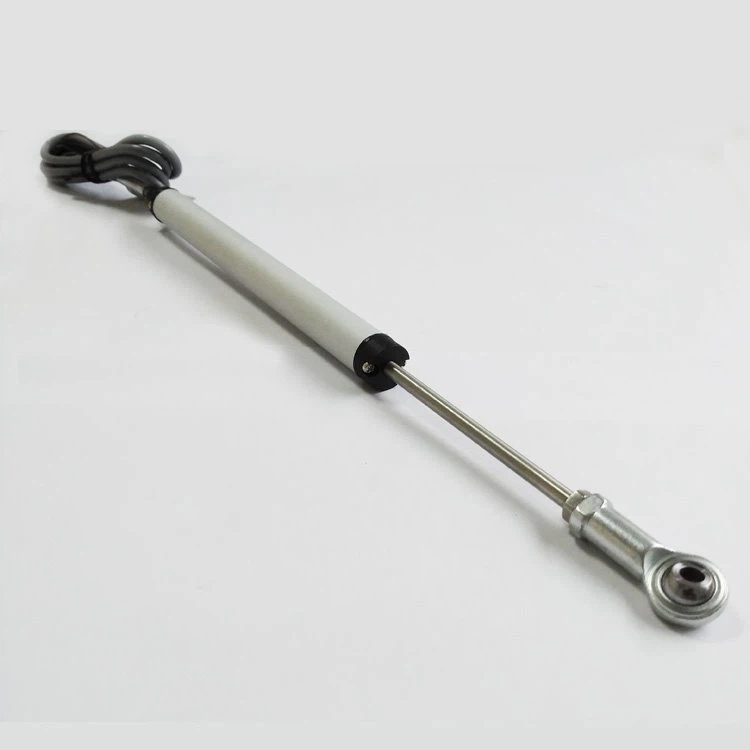

The linear position transducers have a 12 mm cylindrical section case, 4 mm diameter shaft and two fixing ball joints at the ends.
This linear position transducers is designed for direct absolute measurement and available in stroke length up to 300mm. The miniature design is particularly suitable for mounting in areas with limited space.
● Pulling rod type – self-aligning ball joints
● Miniature design for limited space
● Anodised aluminium housing
● Very long working life
● Stroke from 10 to 300mm
● Outstanding linearity up to 0.05% FS
● High resolution
● Excellent repeatability
● Three ways of mounting methods
● IP65 protection class
● Available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output
● Axial wire connection with 2 wires or 3 wires
Technical Data Sheet
Dimension / structure
KPZ linear position transducers are widely used in injection molding machines, die-casting machines, wood-working machinery, hydraulic machinery, medical machinery, light industry equipment automatic doors, oil presses and other industries.
Warehouse
Normally most of the models we have in stock , such as KTC, KPM,KTF,KTR,draw wire sensor.
Package
Standard package: paper box.
