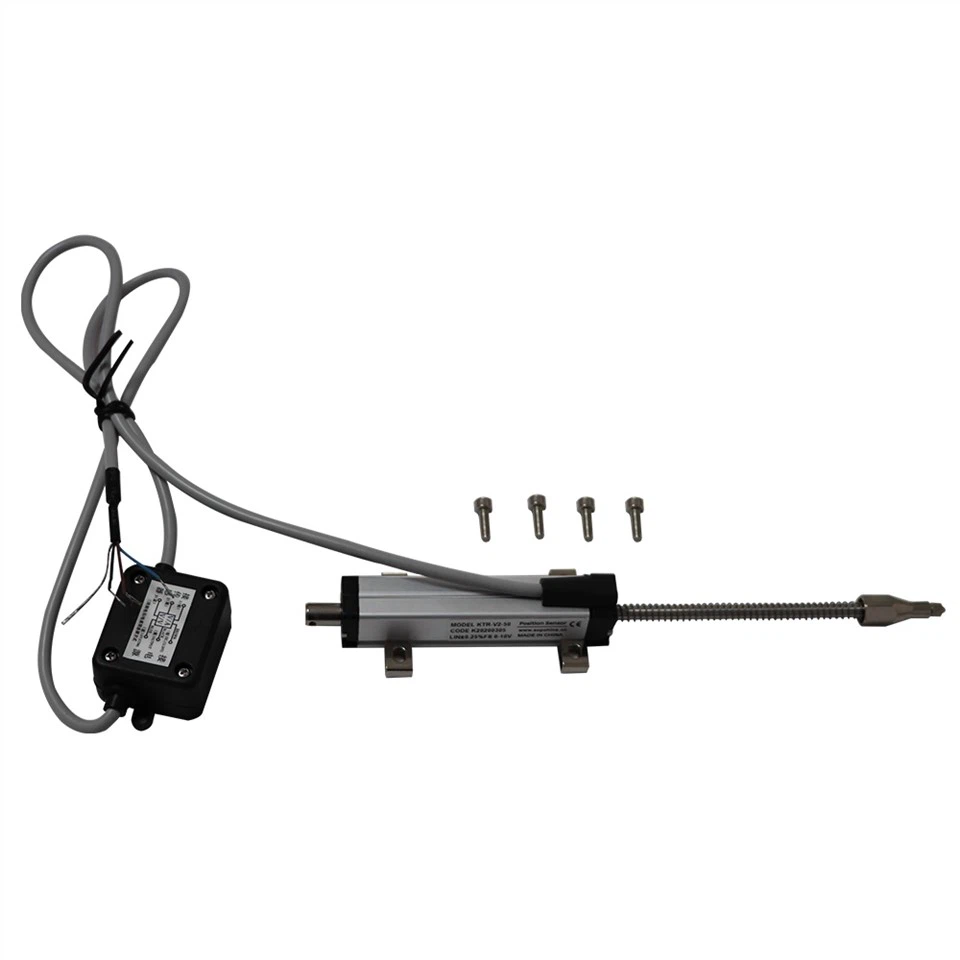

Spring Loaded Linear Potentiometer
Description
KTR Spring loaded linear Potentiometer are used to measure absolute linear motion or position for tracking of a target.
Resistive potentiometric element is made from conductive plastic with minimum temperature drift.
Feature of Spring loaded linear Potentiometer:
1. Volume smaller
2. Usage life is longer, times could reach thirty million
3. Sensor with back spring
4. It is suitable for the equipment without installation and alignment of the push rod
5. Protection grade is IP65
6. Din stanard contact point
7. Double bearing typebar
8. Don’t affact with an external impact and vibration
9. Cable typ connection
10. Could equip with voltage and current (2 line, 3 line) module
Technical Data Sheet
Dimension / structure
Application
Spring loaded linear Potentiometer is the most common application of sensors. Because the linear sensor is hermetically sealed, it can be used outside of the laboratory and workshop. Linear position sensors are suitable for small rooms, such as: bettle blowing machines, tension adjuster, speed ajuster, robots, printing machines, packing machines and so on.
Workshop:
Packing details:
♦ Standard package: paper box
Maintenace and After-Service:
♦ Prompt response upon customer’s feedback within 24 hours: A/S engineer team will be one-on-one service for you to exclude obstacles during using sensors.
♦ 12 months’ warranty period: free sensor maintenance, except artificial damage, we guarantee bear all the freight back and forth.
♦ Product maintenance: TM guarantee maintenance the whole life of the sensors.
How to order:
♦ In order to recommend you the most suitable sensor and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, for example, now you want to buy a displacement sensor, you already have specification for
(1) Stroke Length: 10mm
(2) Power supply: 24Vdc
(3) Output signal: 4~20mA
(4) Operational Mode:Unidirectional
(5) Accuracy: ±0.10% F.S.
