KTR Potentiometer Position Sensor Spring Loaded
Analog resistance high precision KTR Potentiometer Position Sensor Spring Loaded

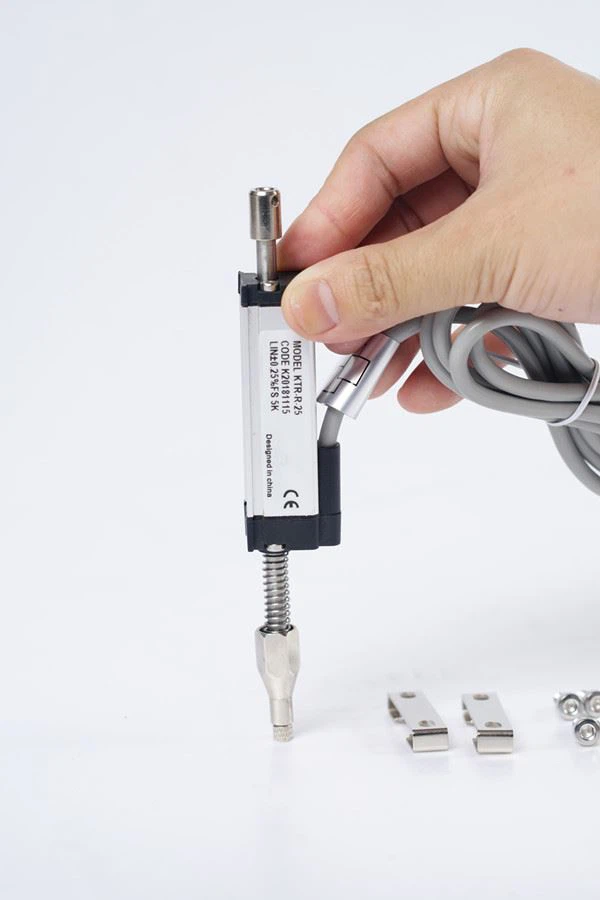

This KTR potentiometer position sensor spring loaded is used to measure linear motion or position of a target. Self return by the spring strength. Stroke lengths are available from 5 to 100 mm. Built-in potentiometric unit is made from conductive plastic with minimum temperature drift. Anodized corrosion resistant housing provides environmetal rating of IP 65.
There are different connect heads available according to different using environment, such as sensor heads, wheel heads and rod heads. The SOP linear position sensor is available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output.
It is widely used for most of common occasions, especially for small installation space, such as tension regulating devices, speed control, material automatically conveying system, package machine, printing machine, bottle blowing machine, production line etc.
Technical parameter
