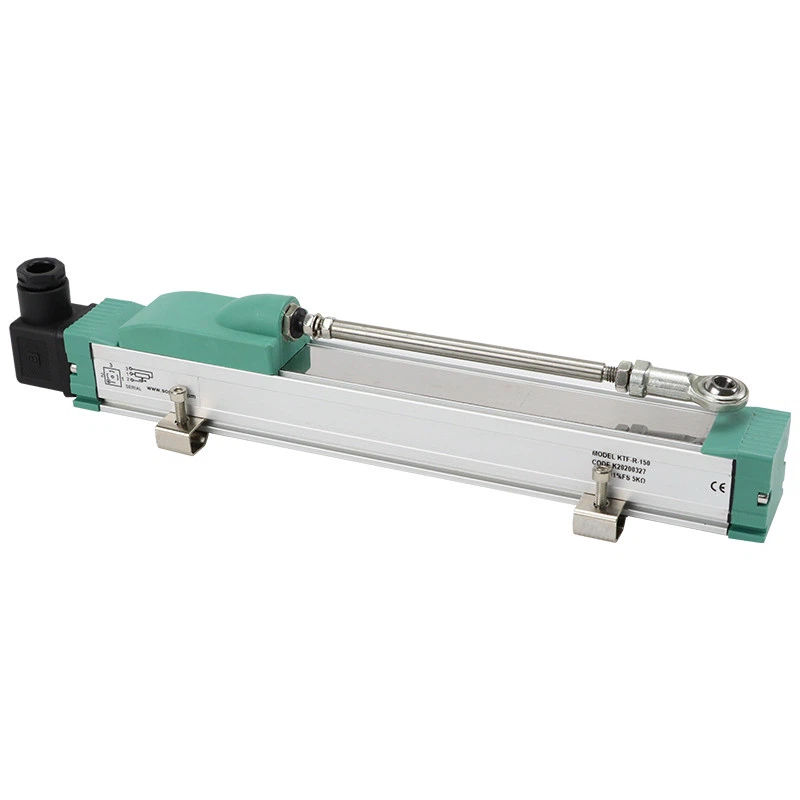

KTF Slide type linear position sensor potentiometer
Description:
KTF Slide type linear position sensor potentiometer is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long lasting conductive track. Slide-type linear displacement sensor with rodless design saves installation space.

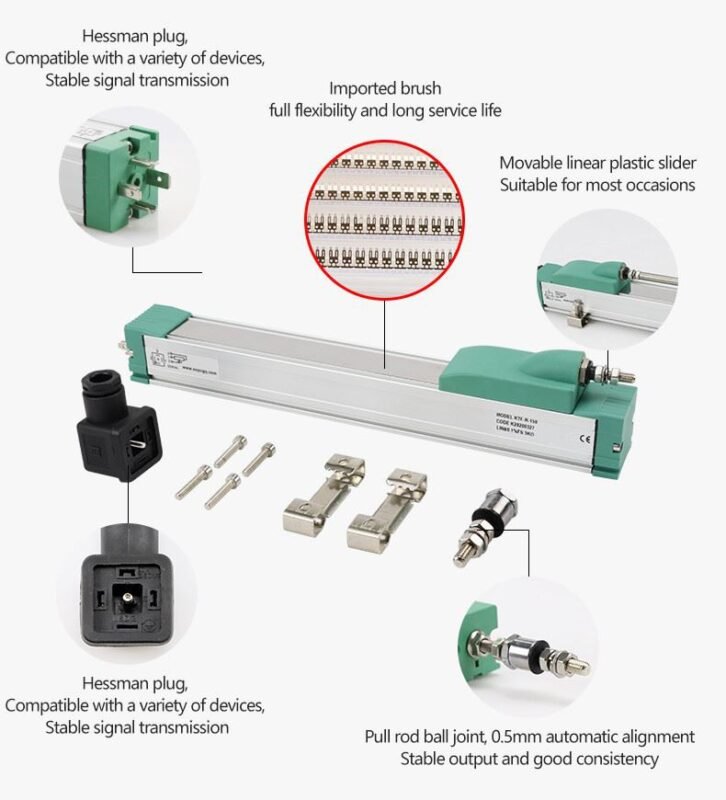

Features:
1. We have linear engraving machine, which makes the displacement more accurate.
2. Our brushes are made of six-element alloy imported from Japan.
3. Long Service Life.
4. Anodized aluminum alloy housing
5. Excellent performance and outstanding linearity
6. Allow high operation speed up to 10m/s
7. IP65 protection class
8. Available with integrated signal coverter with 4-20mA or 0-5VDC output.
9. Better seal than KTC series.

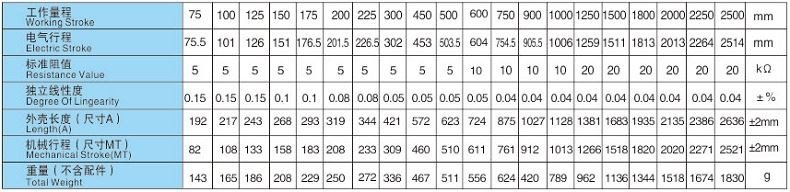

Technical Specifcations:
| Measuring stroke | 75-2500mm |
| Linearity | ±0.05% |
| Repeated | <0.01mm |
| Resolution | Infinite |
| Resistance | 5KΩ/10KΩ/20KΩ |
| Resolution tolerance | ±20% |
| Load resistance | >100KΩ |
| Allow power supply voltage | 28V |
| Displacement speed | <5m/s |
| Shell materials | Anodized aluminum |
| Rod materials | Stainless steel |
| Rod diameter | Φ6mm |
| Mechanical fixation | Adjustable |
| IP DEGREE | IP65 |
| Working temperature | -40℃-80℃ |
Application
1.Automation
This is the most common application of linear position sensor potentiometer. Because the linear position sensor potentiometer is hermetically sealed, it can be used outside of the laboratory and workshop. Linear position sensors can be used in harsh environmental applications such as factory automation, industrial measurement.
2.Hydraulic transducer
Linear sensor is used as charge sensor in hydraulic accumulator.
3.Power Turbine
The power plant ensures that the turbines generate electricity. These turbines require a position sensor with a signal conditioner to provide the necessary power.
