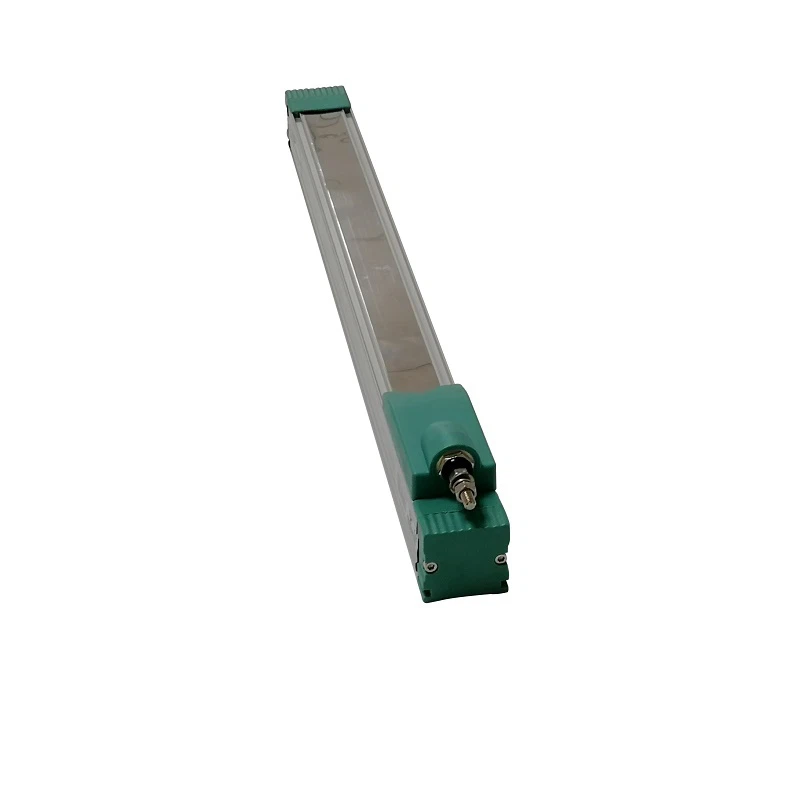

KTF Position Tracking Sensor
This standard slider-type linear displacement sensor series offers effective travels from 50mm to 4000mm, with 3.5mm buffer travel at both ends and an accuracy of 0.2% to 0.03% FS. The housing features an anodized surface for corrosion resistance, a built-in precision measuring unit, no temperature drift, and long life, and includes automatic electrical grounding. The sensor is sealed to IP54 (IP57 when mounted downwards), and the tie rod and ball head feature a 10mm automatic correction function. The sensor has a maximum travel speed of 10m/s.
Resistance Output: 5kΩ, 10kΩ, 20kΩ
Voltage Output: External or Internal: 0-5V, 0-10V
Current Output: External or Internal: 4-20mA, 1-20mA, 0-20mA, Two-Wire, Three-Wire
This sensor is an absolute position sensor used in control and measurement systems for direct position and length measurement. It outputs current and voltage signals. The signals can also be converted to standard 5V-0V, 10-0V, or 20-4mA DC signals using an internal or external V/I converter. 20-0mA and 20-1mA outputs are also available. The current signal can meet long-distance transmission control requirements.
Digital Output: RS232, RS485, and standard Modbus
1. Housing: Anodized aluminum;
2. Slide: Aluminum with plastic insert
3. Ball joint coupling: Ball joint with hardened steel ball (303) and spring forming M5 external thread
4. Resistor: Conductive plastic
5. Brush assembly: Precious metal multi-tentacled brush with elastic damping
6. Electronic connection: Standard 4-pole socket
7. Mounting card: 2 adjustable clamps (standard) 4*16 hexagon socket screws with washers (standard)
8. Mechanical connection: 1 universal joint (standard) 1 ball puller (optional)
9. Wiring plug: 1 (standard)
Technical Specifcations:
| Measuring stroke | 75-2500mm |
| Linearity | ±0.05% |
| Repeated | <0.01mm |
| Resolution | Infinite |
| Resistance | 5KΩ/10KΩ/20KΩ |
| Resolution tolerance | ±20% |
| Load resistance | >100KΩ |
| Allow power supply voltage | 28V |
| Displacement speed | <5m/s |
| Shell materials | Anodized aluminum |
| Rod materials | Stainless steel |
| Rod diameter | Φ6mm |
| Mechanical fixation | Adjustable |
| IP DEGREE | IP65 |
| Working temperature | -40℃-80℃ |
Application
This slider-type linear displacement sensor has a working range of 0 to 4000 mm. It is a general-purpose sensor suitable for position detection in various types of equipment, such as injection molding machines, die-casting machines, rubber machines, ceramic machines, glass machines, proportional valve position control, metallurgy, engineering machinery, automobiles, high-speed rail, wind power, building materials, plastics machinery (injection molding machines, bottle blowing machines, rubber and tire vulcanizers, and roller presses), die-casting machines, hydraulic machinery, hydraulic servo cylinders, ceramic machinery, proportional valve position control, woodworking machinery, printing machinery (brush roller movement, cutting, etc.), textile machinery, hardware machinery (monitoring mold thickness variation and balance), leather machinery, shoemaking machinery, sheet metal equipment, shield machines, long-stroke pipe drilling machines, spring machinery, steel mill roll adjustment, manipulators, automatic doors (trains and halls), robots, cutting machines (cutting steel pipes, wood boards, wire rods, etc.), railway guide rail monitoring, bridge monitoring, shield machines, shoemaking machines, EVA injection molding machines, blow molding machines, woodworking machinery, hydraulic presses, and packaging machinery.
