KPM Series of linear potentiometer transducer are used to used to measure and track the linear motion or position of a target. They are designed to withstand the harsh environment of motorsport and automotive testing, structural and architectural testing, and robotics applications.

KTR Series Mini Spring Linear Displancement Transducer are used to measure absolute linear motion or position for tracking of a target.
Resistive potentiometric element is made from conductive plastic with minimum temperature drift.

ckage anKPM 25-300 CE Certification hydraulic cylinder position sensor for Measurement Distance KPM 25-300 CE Certification hydraulic cylinder position sensor for Measurement Distance is used to measure and track the linear motion or position of a target. The potentiometer position sensor is…

The linear position transducers have a 12 mm cylindrical section case, 4 mm diameter shaft and two fixing ball joints at the ends.

LWH measurement linear transducer with conductive plastic element are designed for the displacement or length measurement and are available in different stroke lengths up to 75mm~1250mm.

KTM pulling rod type displacement measurement transducer with conductive plastic element are designed for the displacement or length measurement and are available in different stroke lengths up to 300 mm.

KTF Displacement Transducer Manufacturer for inject Molding Machine KTF Displacement Transducer is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long…

Long stoke scaler KTF 2M linear potentiometer for large Injection molding machine Features: * Stroke lengths available from 75mm to 3500mm * Slide type position sensor * High performance and reliability even under extreme temperature and vibration * High speed operation * Resolution better than…

The miniature Linear potentiometer with Rod End Joints is used to measure and track the linear motion or position of a target. The mini articulated design is especially suitable for mounting in instruments or machines with limited space.

1. Travel 10-100000mm customiable
2. High stablitily,high accuracy,service life up to Five million times
3. Permissible Deviation 3, not exceeding 35mm
4. For every 1000mm,the linear accuracy can reach to 0.05%-0.08%
5. Protection Level IP65

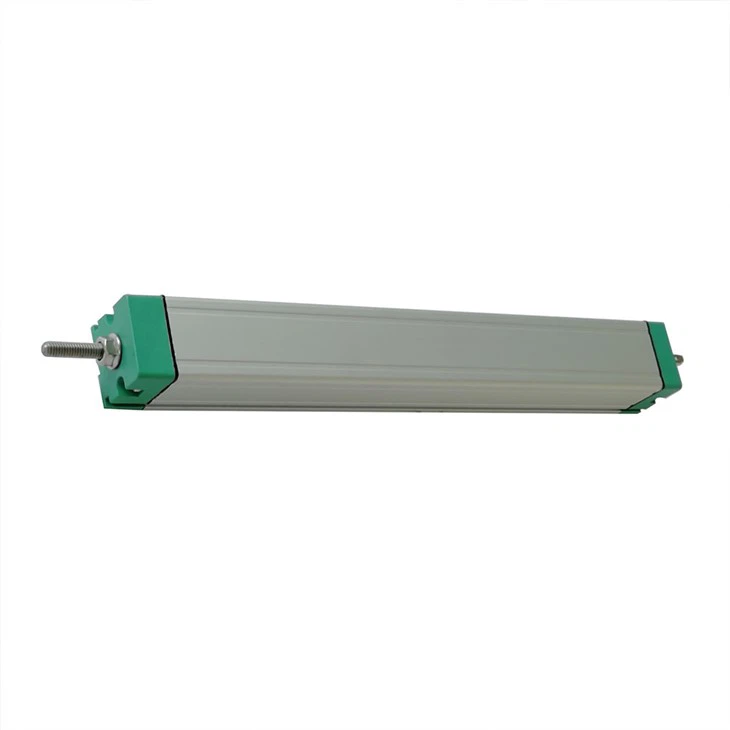

KTF Slide type position tracking sensor is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long lasting conductive track.

KTR Spring loaded linear Potentiometer are used to measure absolute linear motion or position for tracking of a target.
Resistive potentiometric element is made from conductive plastic with minimum temperature drift.
