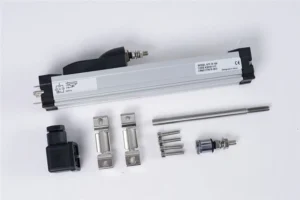

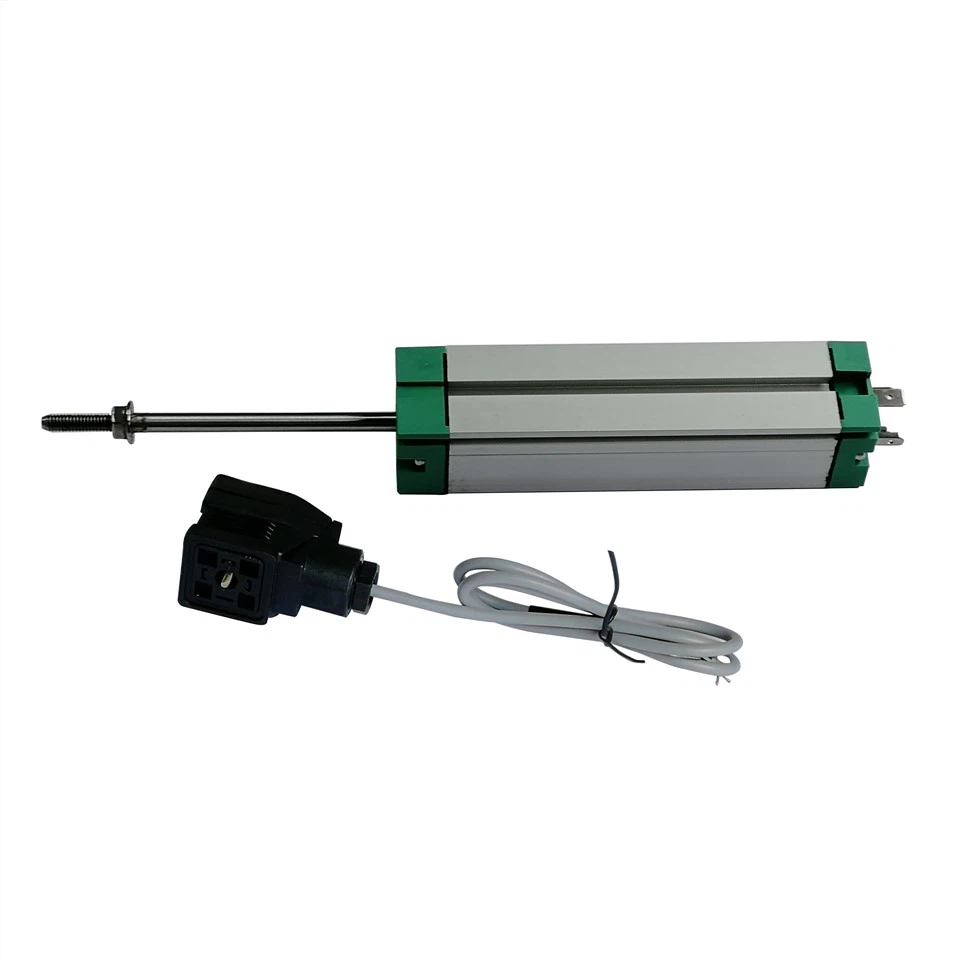

KTC Injection Molding Machine Electronic Ruler
Product Description

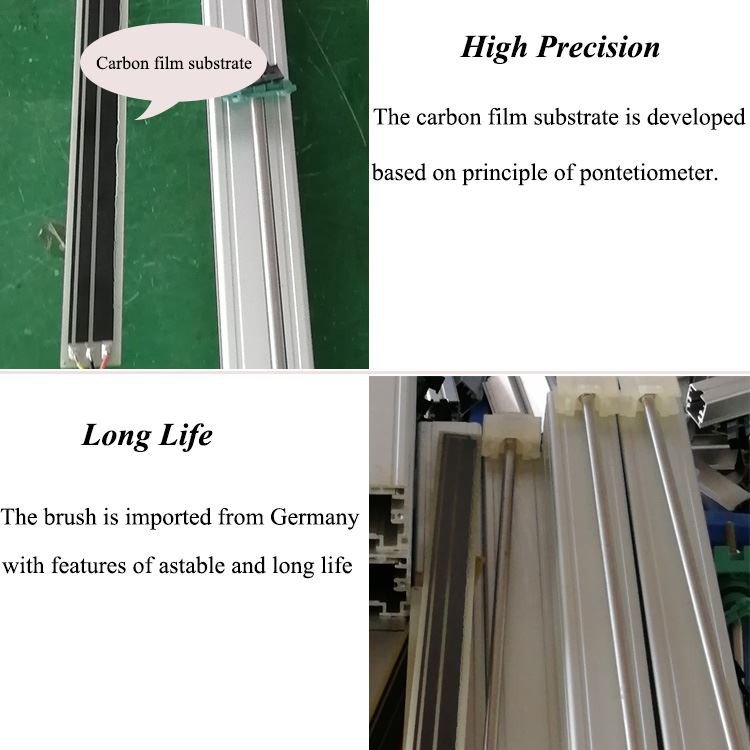

Injection Molding Machine Electronic Ruler is made of high-quality stainless steel material, and it can realize sturdy and smooth operation. The product uses an improved resistive track connection technology to ensure a higher degree of reliability and linearity, while the multi-finger taps stabilize the output signal, even under the most adverse operating conditions. It has a rust-resistant aluminum housing and durable stainless steel shaft to ensure its long life. This product is widely used in the position measurement of die casting machines, woodworking machinery, hydraulic machinery and other equipment.
1. Anodized aluminum housing, anti-corrosion
2. Brushes for precious metal collectors and resistive tracks
3. Conductive plastic track on polymer base
4. Stainless steel pull shaft, long service life and smooth operation
5. Unlimited Resolutions
6. Protection class IP65
7. The service life can reach 50 million
8. The repeatability is within 0.01mm
9. Output signal 4-20 mA, 0-5/0-10 VDC, resistance
Technical Specifcations:
| Measuring stroke | 75-1250mm |
| Linearity | ±0.05% |
| Repeated | <0.01mm |
| Resolution | Infinite |
| Resistance | 5KΩ/10KΩ |
| Resolution tolerance | ±20% |
| Load resistance | >100KΩ |
| Allow power supply voltage | 28V |
| Displacement speed | <5m/s |
| Shell materials | Anodized aluminum |
| Rod materials | Stainless steel |
| Rod diameter | Φ6mm |
| Mechanical fixation | Adjustable |
| IP DEGREE | IP65 |
| Working temperature | -40℃-80℃ |

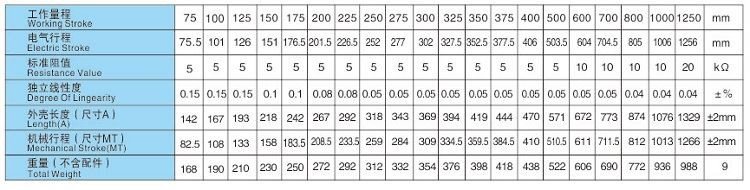

Dimension (mm)
Products details
Injection molding machine electronic ruler is a general-purpose product, suitable for displacement measurement and position positioning of various mechanical equipment, such as injection molding machines, hollow blow molding machines, woodworking machinery, hydraulic machinery, etc.

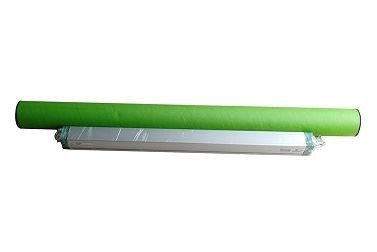

Packing Details:
♦ Standard package: paper tube,
♦ Tube dimension: 550mm x 55mm x 55mm
♦ Packing methods: each to be wrapped with poly film then to a paper tube
 |
 |
