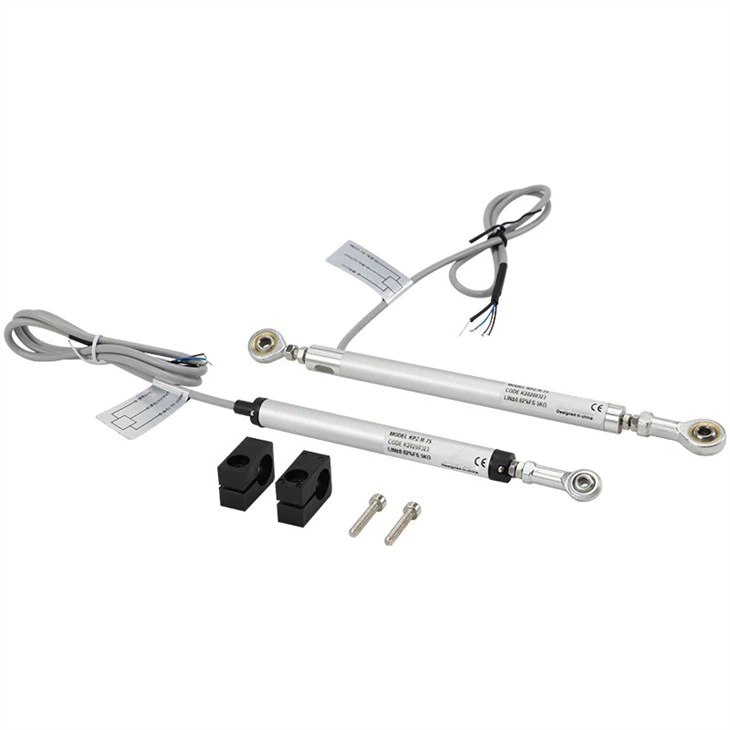

KPZ Micro Digital Displacement Tansducer
Product Description
The stroke of this digital displacement transducer is from 10mm-300mm. If you need different lengths of travel, please contact with the supplier. The default output: 0-100% of the power supply voltage value, which is resistance output, if you need other signal output, such as 4-20mA, 0-5V, 0-10V,and RS485 signal output .
1. The material of brush is imported from Germany, long working cycles, up to over 50,000,000 times
2. Compact size, ideal for installation where there is a little space to install
3. Multi output signal optional: resistance, voltage and current output
4. The allowed angular deviation is +-3 degree, and the allowed parallel deviation is +-5mm
5. The stroke length is available from 10mm to 300mm
6. High performance and resolution
Technical parameter
| Working range | mm | 10 | 25 | 38 | 50 | 75 | 100 | |||
| Resistance travel(A.E) | mm | 10.5 | 25.5 | 38.5 | 50.5 | 75.5 | 101 | |||
| Mechanical stroke(M.T) | mm | 15.5 | 30.5 | 43.5 | 55.5 | 80.5 | 106 | |||
| Linear accuracy (FS) | ±% | 0.3 | 0.1 | |||||||
| resistance value±10% | KΩ | 2 | 5 | |||||||
| Resolution | Analog | Infinite unlimited analysis | ||||||||
| Repeatability accuracy | mm | 0.01 | ||||||||
| Maximum operating speed | m/s | 5 | ||||||||
| Recommended output loop current | μA | 1 | ||||||||
| Operating temperature environment | ℃ | -40℃ ～ +120℃ | ||||||||
| Output signal type | Vdc | 55.5 | 106 | |||||||
| Size A | mm | 53 | 68 | 81 | 93 | 118 | 143 | |||
| Weight (excluding accessories) | g | 43 | 52 | 59 | 61 | 70 | 79 | |||
Application
These ruggedized sensors are ideal for use in various applications including vehicle testing, autosport instrumentation,structural and architectural testing and robotics.
Package
one sensor with a small seperate paper box , then with one carton . It will be safe for long distance delivery ..
