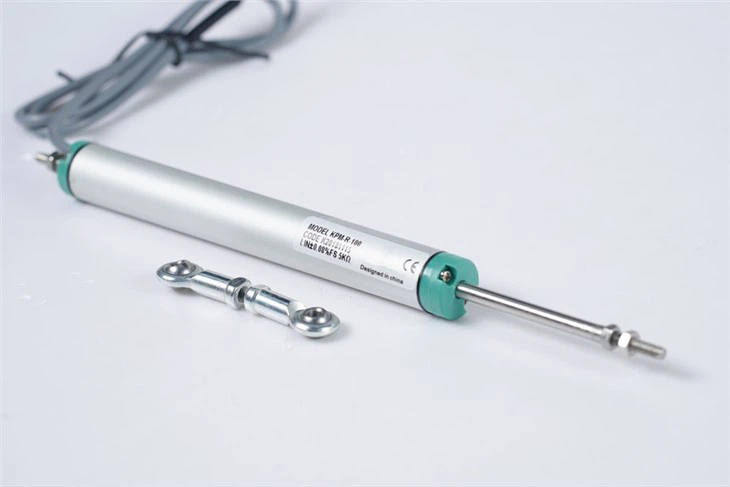

KPM resistive displacement transducer
Diameter 18mm KPM resistive displacement transducer
KPM resistive displacement transduceris used to measure and track the linear motion or position of a target. The potentiometer position sensor is carried out with a high-resolution conductive plastic resistive element. The displacement encoder has a very long lifetime and high accuracy due to its good linearity.
The compact linear transducers are designed for applications with harsh environmental conditions. The transducer with ball joints compensates movements transversely to the push rod, so that non-linear movements can also be coupled simply and without stress. The mechanical detection of linear movement is done by a front guided push rod.
Features:
- Compact displacement sensor
- For harsh environmental conditions – protection class IP65
- Mounting by ball joints, mounting brackets
- Long lifetime and high accuracy
- Measuring lengths from 10 mm to 300 mm
From every step of production to the final quality inspection, every process requires strict and standardized operation, and the daily output of the workshop reaches 1,500 pieces.
For this model we have different diameter to meet different requirement.
Application
Our senor KTC, KTR, KTF, KPM ,KPM are widely used in machinery , road and bridge construction,elevator , ect. And our product quality is recognized by customers .
