BRG SENSOR / KDC Linear Position Transmitter

5-100mm working stroke Self-Recovery Linear position sensor Feature: Spring self-recovery linear potentiometer Stroke lengths available from 5 to 100 mm (0.2 to 4 inchs) Mounting brackets included High precision and repeatability Protection class of IP65 (Dust tight, Water resistant) Compact…

Add to Wishlist
Share it:

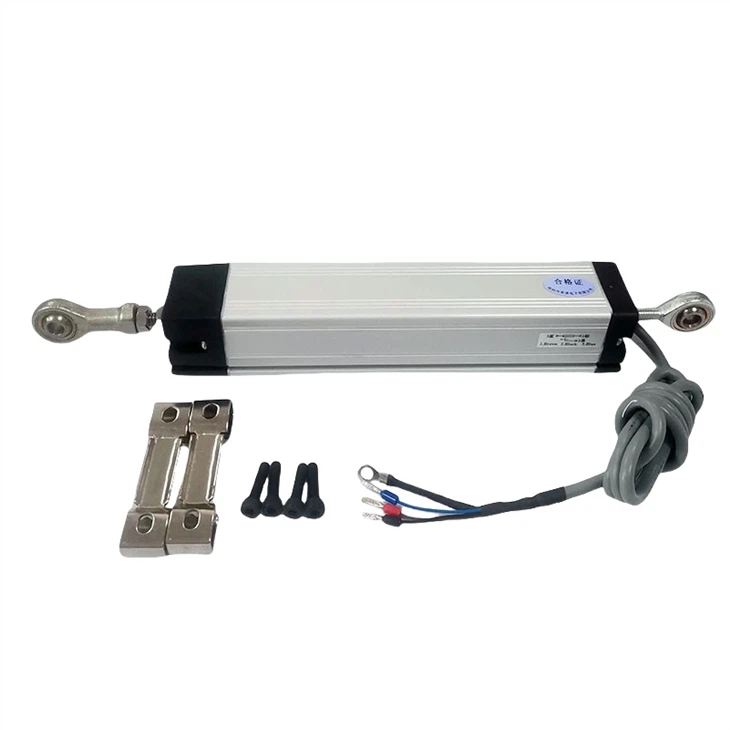

KDC Linear Position Transmitter

Description

Product Introduction

The KDC articulated linear displacement sensor features an articulated mounting mechanism with fixed ends. It is suitable for position monitoring in machines with large travel and oscillation, and does not require alignment. It is suitable for applications where oscillation is present and alignment is not required, such as robots, unloaders, brick and shoe machines, ceramic machines, sluice gates, 3D cinema seats, and entertainment equipment.



KDC-4

Features :

● KDC-33 series linear displacement sensor, potentiometer type, protection grade IP60

● Lifespan up to 100 million cycles under varying conditions. Excellent li

● nearity up to ±0.05%.

● Resolution better than 0.01mm.

● High operating speed.











Technical parameter



KDC-33 50 75 100 110 125 130 150 175 200 225 250 300 325 350 375 400
Total electrical strokeTE mm 55 80 105 115 130 135 155 180 205 230 255 305 330 355 380 405
Available electrical travel AE mm 50 75 100 110 125 130 150 175 200 225 250 300 325 350 375 400
resistance kΩ 5
Independent linearity ±% 0.1 0.05
Mechanical strokeMT mm 57 82 107 117 132 137 157 182 207 232 257 307 332 357 382 407
resolution unlimited
Output range Voltage Divider
Operating temperature ℃ -50+120
Size A mm 129 154 179 189 204 209 229 254 279 304 329 379 404 429 454 479











KDC-33 425 450 500 550 600 650 700 750 800 850 900
Total electrical strokeTE mm 430 455 505 555 605 655 705 755 805 855 905
vailable electrical travel AE mm 425 450 500 550 600 650 700 750 800 850 900
resistance kΩ 5 10
Independent linearity ±% 0.05
Mechanical strokeMT mm 432 457 507 557 607 657 707 757 807 857 907
resolution unlimited
Output range Voltage Divider
Operating temperatu ℃ -50+120
Size A mm 504 529 579 629 679 729 779 829 879 929 979



Dimension (mm)



11





111

Wiring Definition:

Resistor Output: Brown + Blue – Black: Output (Power + – can be swapped; the data will be reversed after swapping)

voltage output： Brown+Blue- Black Output-

Current 3-wire system: Brown + Blue –

Current 2-wire system: brown + black output



Imported Main Components

Long life and accuracy, stable output signal, and strong anti-interference performance.

KDC-7
KDC-8

High-quality materials

Aluminum alloy housing, finely polished and anodized, ensures excellent sealing and waterproofing.

High-quality cables

Double-layer shielded conductors with a filter inner layer to resist high-frequency interference. High-quality copper braided network cable resists low-frequency interference and provides stable signal.

O1CN01TWatat2JAYK94Oxfp2871459381-0-cib







Application

This series of sensors is used in measurement and control systems for direct and absolute measureme nt of displacement and length. With hinged mounting at both ends, they are suitable for position detecti on in machines with large travel and oscillation, without requiring any alignment. Examples include robo tics, brick making machines, ceramic machinery, and sluice gate controls.

KDC-2
