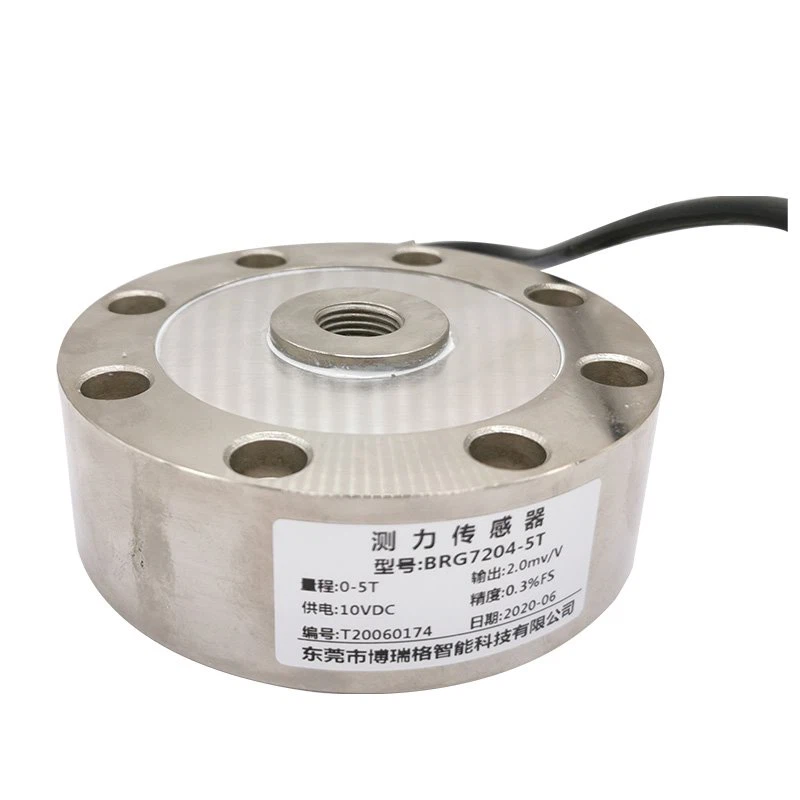

Disc Load Cell
Description
where will you use the spoke load cell ?
The purpose of the spoke compression load cell, as the name suggests, is the occasion where the load cell is mainly used for weighing and measuring force. For example, related weighing equipment such as floor scales and platform scales. It is also used for tensile machines, presses, and other force detection equipment.
Characteristics
1. Anti-eccentric load, low height, good strength, easy installation, good symmetry of tension and compression output.
2. Suitable for all kinds of presses, platform scales, truck scales, rail scales and silo level measurement and control.
3. Optional amplifier, standard output 4-20mA, 0-5V, 0-10V or RS485
Parameters :
| parameter | Technical index | parameter | Technical index | |
| range | 500-700Kg, 1-7, 10, 20, 100T | output resistance | 700±5Ω | |
| Sensitivity | 2.0±10% mV / V | Insulation resistance | ≥5000MΩ / 100VDC | |
| Zero output | ±2% F.S. | Excitation voltage | 10-15VDC | |
| Non-linear | ≤±0.05% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.03% F.S. | working temperature | -20 ~ 80℃ | |
| Repeatability | ≤±0.03% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 750±10Ω | Material | stainless steel or alloy steel |
Dimension (mm)
