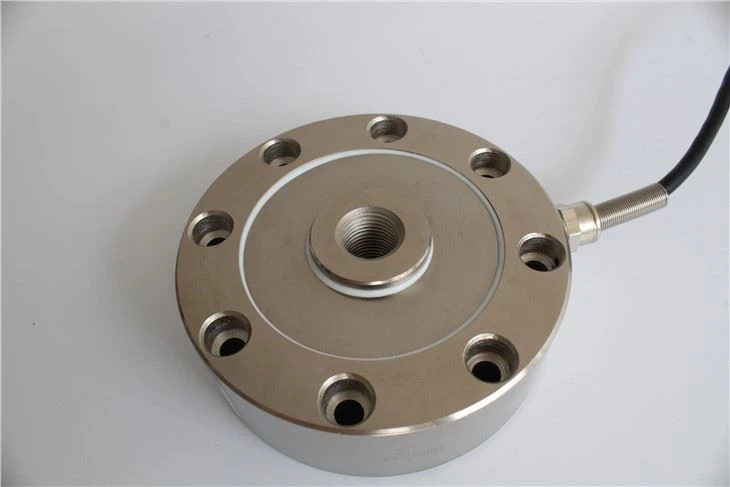

Description
The Customized Pancake Type Load Cell choose from compression only or tension/compression models to fit your particular application. Fatigue-rated models are available that are designed for applications, such as materials or product fatigue testing, which involve an extremely large number of cycles or occasional overload conditions. Select models are also available as intrinsically safe options for use in hazardous locations. Please call us to discuss if you need special modifications or a custom design.
Features
1. Anti-eccentric load, low height, good strength, easy installation,
2. Suitable for all kinds of presses, platform scales, and silo level measurement and control.
3. Optional amplifier, standard output 4-20mA, 0-5V, 0-10V Or RS485
4. Low profile, pancake style, wheel type
5. All-welded, stainless steel construction and double diaphragm design
6.Low sensitivity to extraneous loads

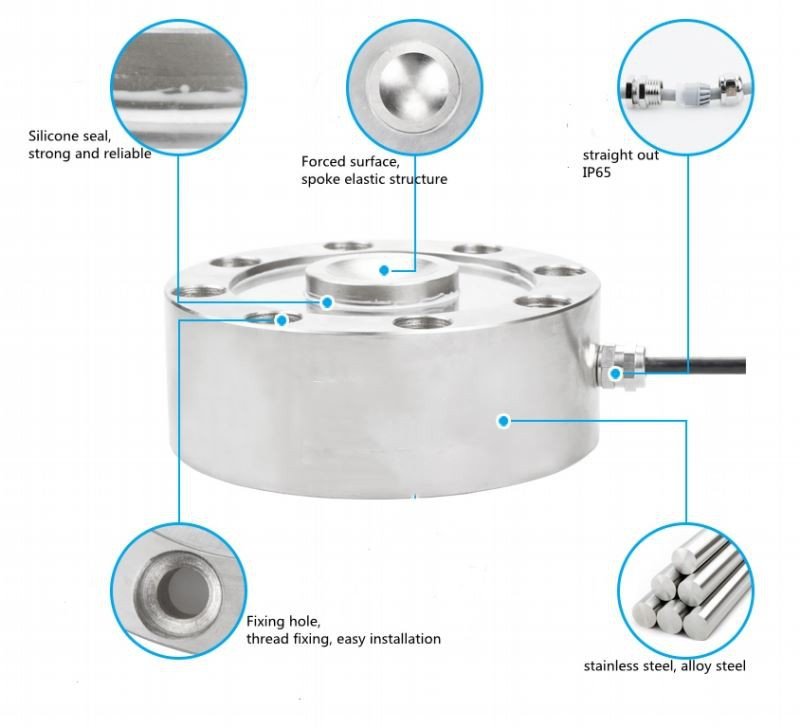

Detials
Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 500-500Kg, 1, 2-10T | output resistance | 700±5Ω | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ / 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10-15VDC | |
| Non-linear | ≤±0.3% F.S. | Temperature compensation range | -10 ~ 60ºC | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 80ºC | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+,black/E-,green/S+,white/S- | |
| Input resistance | 750±10Ω | Material | Aluminum alloy, stainless steel, alloy steel |
Dimension (mm)
Wiring schematic diagram:
Red: Input ( ＋ ) 111 White: Output ( － )
Black: Input ( － ) 111 Green: Output ( ＋ )
Notes：It used 4-core shielded cable(φ5×3000mm)
Load instruction:
