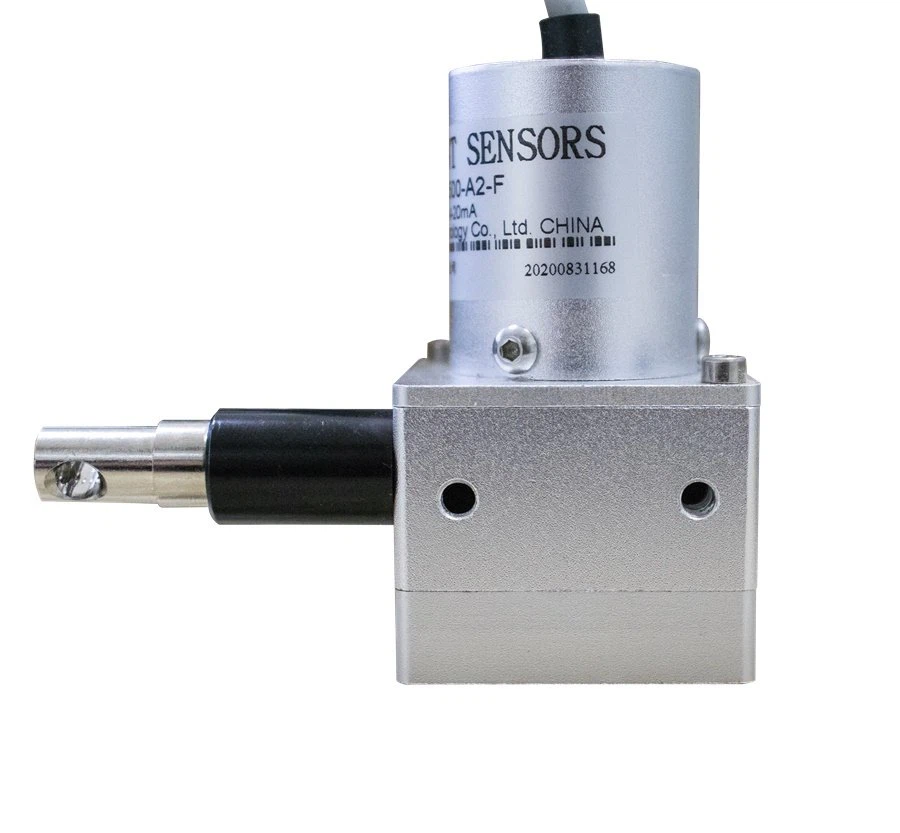

BRGXS Miniature Draw Wire Potentiometer
BRGXS Miniature Draw Wire Potentiometer
The measuring range of this Miniature Draw Wire Potentiometer is 100mm—1000mm. It can output 0-5V, 0-10V voltage signal or 4-20mA two-wire current signal. An external transmission module can also be connected to output 4-20mA three-wire current signal or digital signal. The product is small in size, high in accuracy, and has good waterproof and dustproof performance, which makes it suitable for long-term use in open air or wet environments. It is mainly used in pressure machinery, hydraulic presses, printing machinery, XY axes and other automatic measurement, papermaking machinery, etc.
1. Miniature size design
2. Unique conductive film for ultra-high resolution
3. Strong and durable, anti-vibration
4. Low error and high linearity
5. Long service life, can be used about 5 million times
Parameter table
| Working range | 100-1000mm |
| Linear precision | ±0.15% |
| Repeatability accuracy | ±0.02% |
| Resistance (±10%) | 5KΩ; 10 KΩ |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -40℃- +80℃ |
| Usage life | 5 million times |
Dimension
Wire connection
Application
