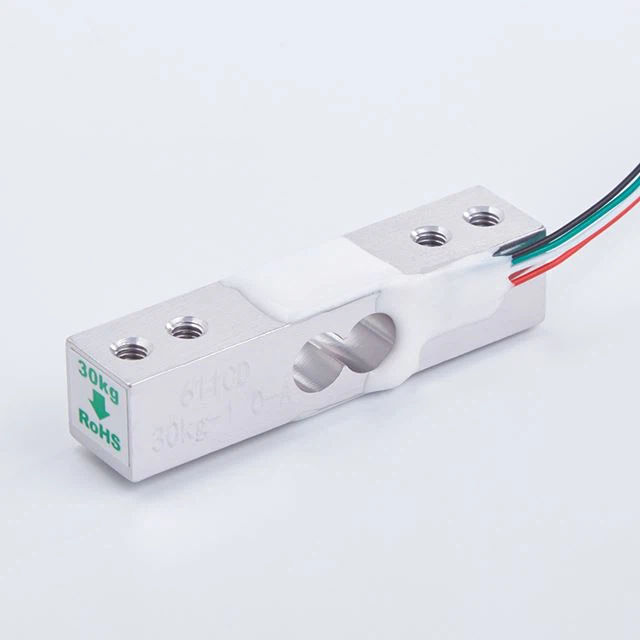

BRG813 Shear Beam Load Cell
Description
Overview
Single-point load cells, unique for their off-centre load tolerance, offer flexibility in weight distribution for accurate measurements. Unlike other types (compression, tension, beam) requiring precise alignment, single-points excel in uneven load situations.
Features
Small size , easy to install ;
Cheap cost ;
Simple structure ;
Aluminum alloy material, strong and durable
Suitable for automotive applications.
Technical parameter
| Type | BRG813 |
| Maximum capacity (E)max/KG | 1-30 |
| Temperature effect on zero b balance (TK0)/%F.S/10℃ | ±0.5 |
| Sensitivity(Cn) /mV/V | 1.0±0.15 |
| Temperature effect on sensitivity (TKC)/%F.S/10℃ | ±0.05 |
| Non-linearity(dlin) /%F.S | ±0.05 |
| Hysteresis error(dhy) /%F.S | ±0.05 |
| Repeatability /%F.S | ±0.05 |
| Creep(3min) /%F.S | ±0.05 |
| Off center load error /%F.S | ±0.1 |
| Zero balance /mV/V | ±0.1 |
| Input resistance (RLC) /Ω | 1000±10 |
| Ouput resistance (RO) /Ω | 1000±10 |
| Reference excitation voltage (Uref) /V | 5 |
| Operating voltage (Bu) /V | 3~10 |
| Insulation resistance (Ris) at 100 VDC /GΩ | 2 |
| Service temperature range (Btu) /℃ | 0 ~ +40 |
| Storrage temperature range (Btl) /℃ | -10~ +60 |
| Safe load limit (EL) /% of Emax | 120 |
| Breaking load (Ed) /% of Emax | 150 |
| Deflection at Max.capacity /mm | <0.5 |
| Material: | Aluminum |
| Degree of protection | IP65 |

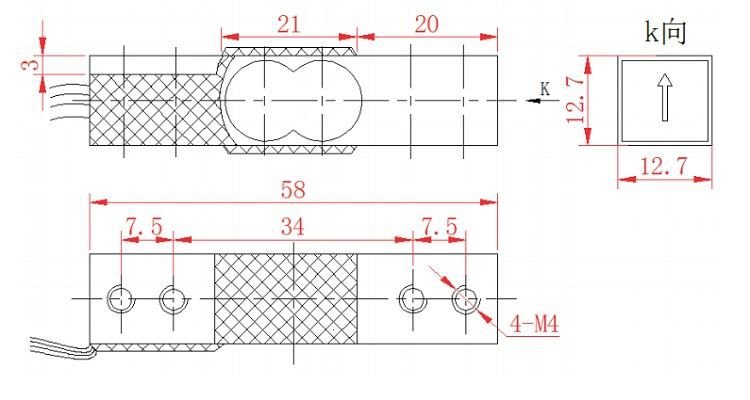

Dimension(mm)
Wire connection
Application
Our shear beam load cell can be applied in hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
