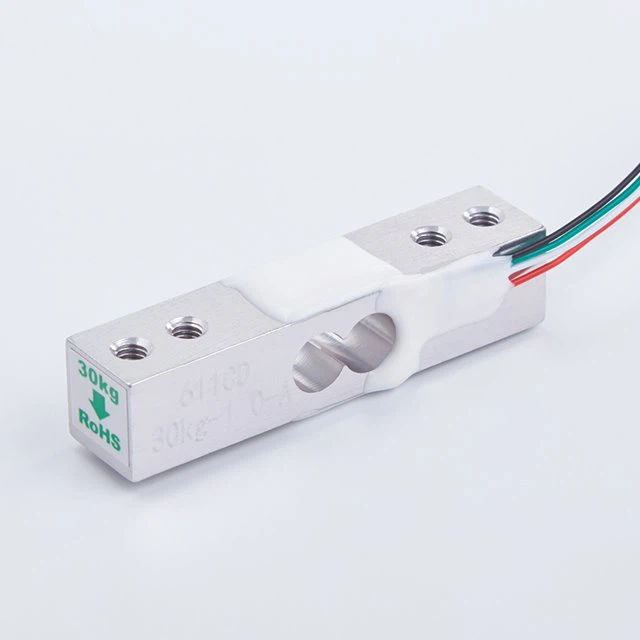

BRG813 Miniature Load Cell Sensor
Description
Product Information
With the further development of microelectronic processing technology, especially nano-processing technology, the technology of miniature load cell sensor is becoming more and more mature. These miniature sensors are small in size, can realize many new functions, like facilitating high-volume and high-precision production, low cost per piece, and is easy to form large-scale and multi-functional arrays. These characteristics make them very suitable for automotive applications.
Features
- Small Size: Designed to fit into tight installation spaces, these sensors are perfect for applications where space is limited, such as in compact machinery or embedded systems.
- Working Range: Available for load measurements ranging from 1 to 30 KG, making them versatile for various low to moderate weight measurement tasks.
- Easy Installation: Their compact design ensures straightforward installation, minimizing the complexity and time required for setup in a range of applications.
- High Precision and Stability: These load cells offer excellent accuracy and stability, ensuring reliable performance and consistent measurements over time, even in demanding environments.
Overall, the miniature load cell sensors are ideal for applications that require precise measurement in confined spaces, providing a reliable and efficient solution for both industrial and scientific uses.
Technical parameter
| Type | BRG813 |
| Maximum capacity (E)max/KG | 1-30 |
| Temperature effect on zero b balance (TK0)/%F.S/10℃ | ±0.5 |
| Sensitivity(Cn) /mV/V | 1.0±0.15 |
| Temperature effect on sensitivity (TKC)/%F.S/10℃ | ±0.05 |
| Non-linearity(dlin) /%F.S | ±0.05 |
| Hysteresis error(dhy) /%F.S | ±0.05 |
| Repeatability /%F.S | ±0.05 |
| Creep(3min) /%F.S | ±0.05 |
| Off center load error /%F.S | ±0.1 |
| Zero balance /mV/V | ±0.1 |
| Input resistance (RLC) /Ω | 1000±10 |
| Ouput resistance (RO) /Ω | 1000±10 |
| Reference excitation voltage (Uref) /V | 5 |
| Operating voltage (Bu) /V | 3~10 |
| Insulation resistance (Ris) at 100 VDC /GΩ | 2 |
| Service temperature range (Btu) /℃ | 0 ~ +40 |
| Storrage temperature range (Btl) /℃ | -10~ +60 |
| Safe load limit (EL) /% of Emax | 120 |
| Breaking load (Ed) /% of Emax | 150 |
| Deflection at Max.capacity /mm | <0.5 |
| Material: | Aluminum |
| Degree of protection | IP65 |
