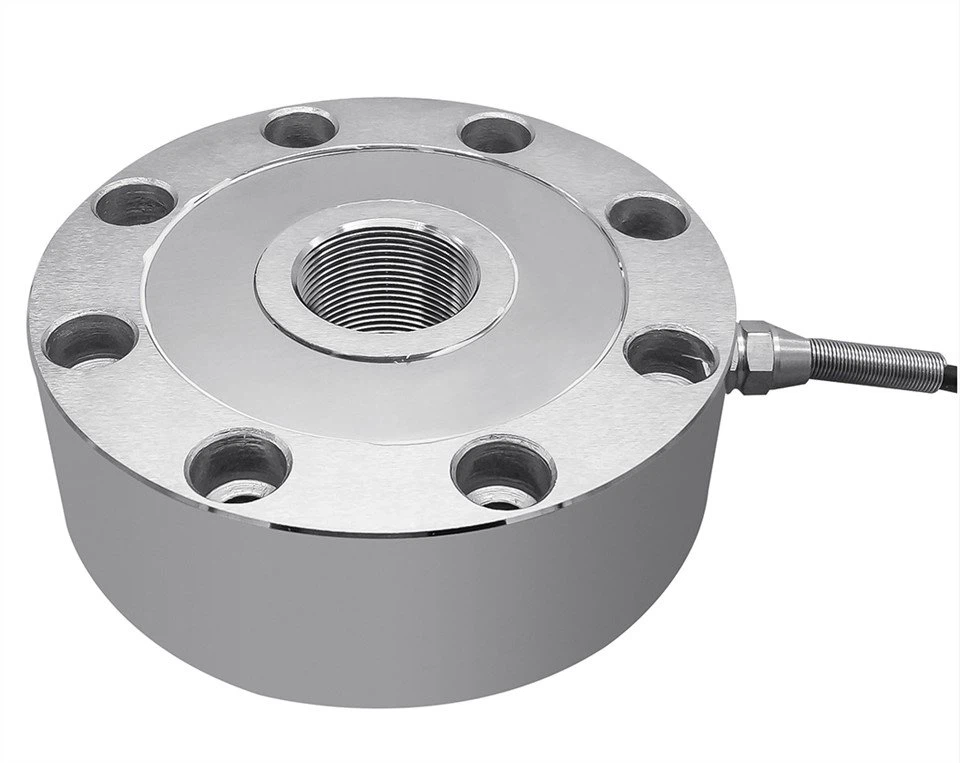

BRG7204E Load Cell Measurement
Description
Uses and characteristics
1. Anti-eccentric load, low height, good strength, easy installation, good symmetry of tension and compression output.
2. Suitable for all kinds of presses, platform scales, truck scales, rail scales and silo level measurement and control.
3. Optional amplifier, standard output 4-20mA, 0-5V, 0-10V or RS485
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 3, 5, 7, 10, 15T | output resistance | 700±5Ω | |
| Sensitivity | 2.0±10% mV / V | Insulation resistance | ≥5000MΩ / 100VDC | |
| Zero output | ±2% F.S. | Excitation voltage | 10-15VDC | |
| Non-linear | ≤±0.03% F.S. | Temperature compensation range | -10 ~ 60ºC | |
| Hysteresis | ≤±0.03% F.S. | working temperature | -20 ~ 80ºC | |
| Repeatability | ≤±0.03% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 750±10Ω | Material | stainless steel or alloy steel |
