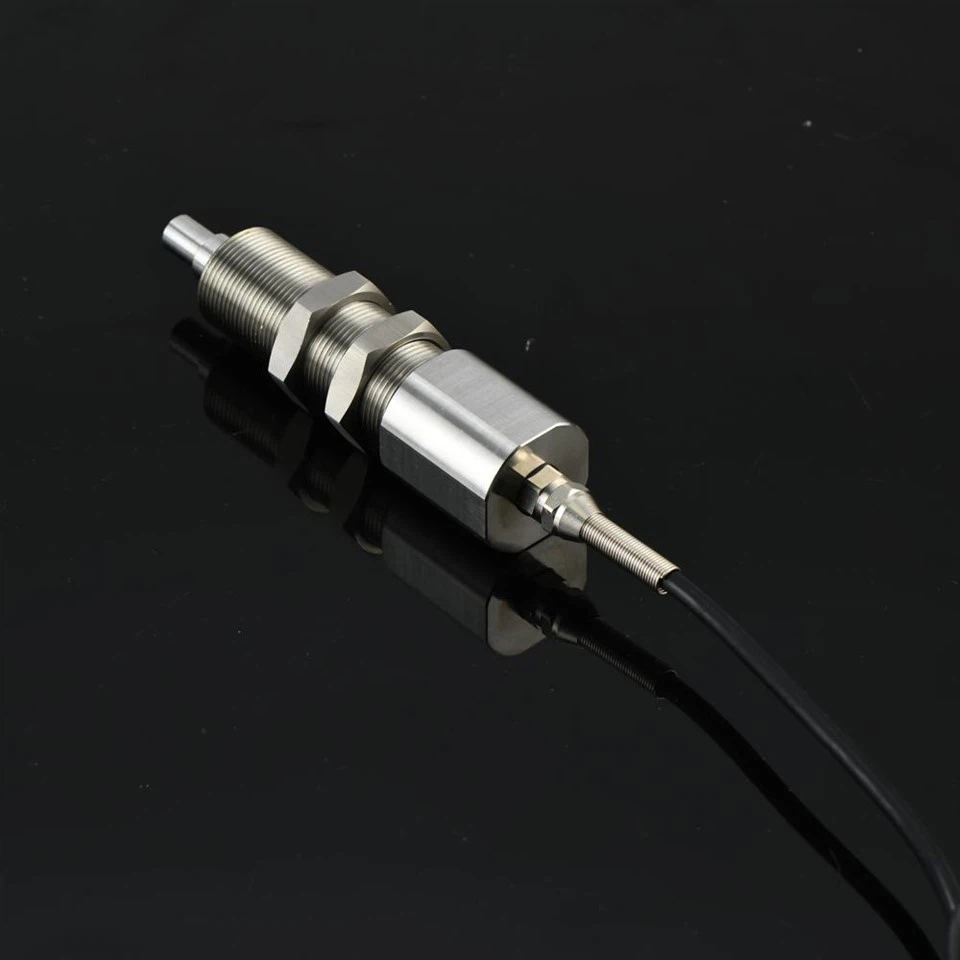

BRG701-03 Cable Tension Load Cell
Description
Features :
- The raw material is 17-4 stainless steel;
- High-precision double nut ring, easy to install and use;
- Automated medical machinery industry, weaving industry, wire and cloth belt tension detection and control system.
Technical Parameters
| capacity | 50N-500N |
| Accuracy class | 0.1% F.S. |
| Rated output | 2.0±0.2mv/v |
| Zero balance | ±2%F.S. |
| Non-linearity | ±0.05%F.S. |
| hysteresis | ±0.05%F.S. |
| Repeatability | ±0.05%F.S. |
| Creep (30min) | ±0.05%F.S. |
| Temp. effect on output | ±0.1%F.S. / 10 °C |
| Temp.effect on zero | ±0.1%F.S. / 10 °C |
| Input resistance | 350 ± 10 Ω |
| Output resistacne | 350 ± 5 Ω |
| Insulation | ≥5000MΩ(50VDC) |
| Recommended excitation | 5~10VDC |
| Maximum excitation | 15VDC |
| Compensated temp. range | -10~40°C |
| Operation temp. range | -20~60°C |
| Safe overload | 120 %F.S. |
| Ultimate overload | 150 %F.S. |
| Cable size | Φ 5.3x3m |
| Protection class | IP66 |
Dimension (mm)
Load Direction
