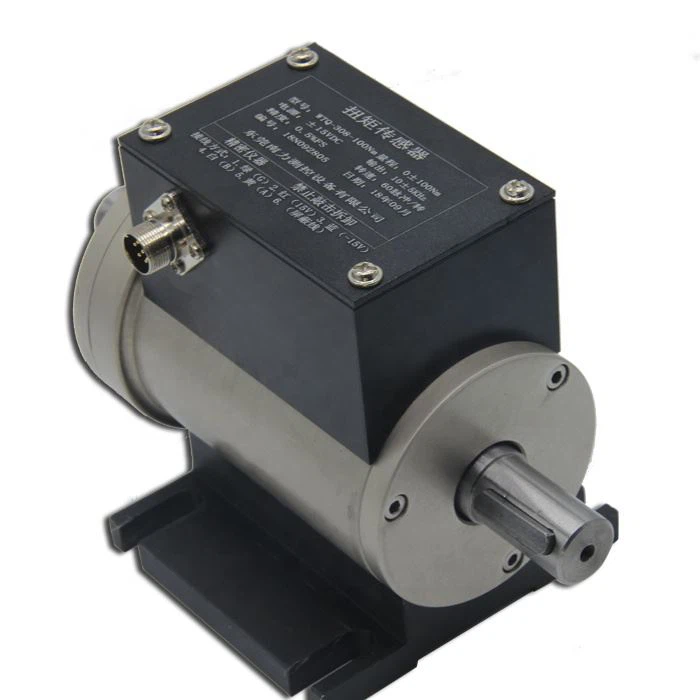

BRG6803 Non Contact Rotary Torque Sensor
Non Contact Rotary Torque Sensor Features
1. Signal output waveform square amplitude optional 5V/12V/15V/24V.
2. Boot 5 minutes into the working status, not need preheating course.
3. high accuracy, good stability and anti-jamming.
4. Do not need repeated zero setting can measure positive and negative torque.
5. Small volume, light weight, easy to install.
6. The sensor can be used independently from the second instrument, so long as providing the power ± 15V(200mA),
according to the socket pin number, then it can output isotropic wave or pulse wave frequency signal whose impedance is proportional to the torque.
7. Torque range: Standard of 0~10000Nm,more than 10000Nm can be customized.
Details
What different between non-contact type and normal Torque Sensor type?
Technical Parameters
| Index name | Technical index |
| Range | 50, 100-500Nm, 1-50KNm |
| Power supply | ±15V DC (Applicable frequency signal output), 24V DC (Applicable voltage or current signal output) |
| Torque signal | 5～15Khz (Amplitude 12V, zero point 10kHz), 4～20mA, 1～5V, 0-10V (Optional) |
| range of rotation | 0～1000, 3000, 6000, 8000 |
| Speed signal | The standard product does not have the measuring speed, if it is with the measuring speed, please specify when ordering |
| Precision | ±0.1%FS, ±0.25%, ±0.5% |
| Yearly stability | 0.25%/year |
| Insulation resistance | ≥2000MΩ(100VDC) |
| working temperature | -20～70℃ (can be -20～120℃) |
| Relative humidity | 0～90%RH |
| Overload capacity | 150% |
| Frequency response | 1ms |
Dimension (mm)
Using tips:
1: In the event of a bending moment, the torque sensor and the base of the device should be flexibly secured to ensure that they can swing.
2: In case of vibration, the power supply and load equipment should be securely fastened.
3: Make sure the right type of electrical connection.
4: Please promptly contact with us, if any using problems.
