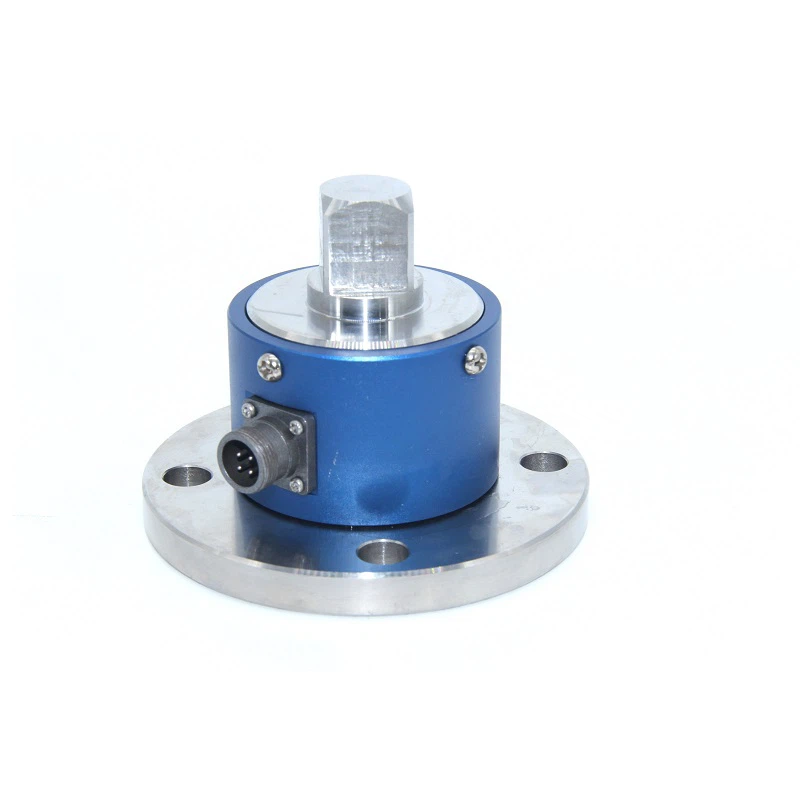

BRG632 Static Torque Transducer
1. Resistance strain is an integrated product composed of sensitive components and integrated circuits product, high precision, stable and reliable performance, low and medium range torque measurement, easy to install and use.
2. Static torque measurement. One end is the outer square key connection, and the other end is the flange connection.
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 0～20, 50, 100, 200, 300, 500Nm | Response frequency | 100μS | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10VDC(9-15VDC) | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 65℃ | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 350, 750±10Ω | Material | Stainless steel or alloy steel | |
| output resistance | 350, 700±5Ω | other request | customizable |
Dimension (mm)
Static Torque Measurement
Static torque measurement offers easy installation and use, a wide test range, and compatibility with various working conditions.
Compact Structure
Constructed from high-quality stainless steel, it offers high precision, stable performance, and long-term stability.
High Precision And Stable Operation.
The resistance strain gauge integrates a sensitive element and an integrated circuit for high precision and long service life.
