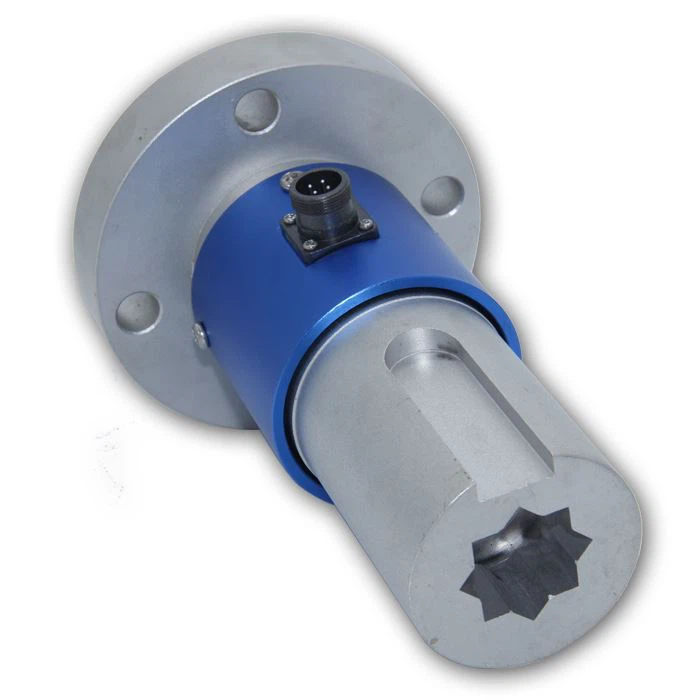

BRG622 Static Torque Meter
1.The static torque meter is an integrated product composed of sensitive components and integrated circuits, with high precision, stable and reliable performance, and a wide measurement range;
2. Large range torque measurement, easy to install and use;
3. Static torque measurement. One end is a key (or inner square key) connection, and one end is a flange connection
4. For static, discontinuous rotation torque measurement.
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 0-1, 2, 5, 10KNm | Response frequency | 100μS | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10VDC(9-15VDC) | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 65℃ | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 350, 750±10Ω | Material | Aluminum, stainless steel or alloy steel | |
| output resistance | 350, 700±5Ω | other request | customizable |
Dimension (mm)
Application
1. Test of torque and power of motor, engine, internal combustion engine and other rotary force equipment.
2. Test of torque and power of fan, water pump, gear box, torque wrench.
3. Test of torque and power of railway locomotive, automobile, tractor, airplane, ship, mining machinery.
4. It can be used to detect the torque and power in the sewage treatment system.
5. It can be used to make viscosimeter.
6. It can be used in process industry.
