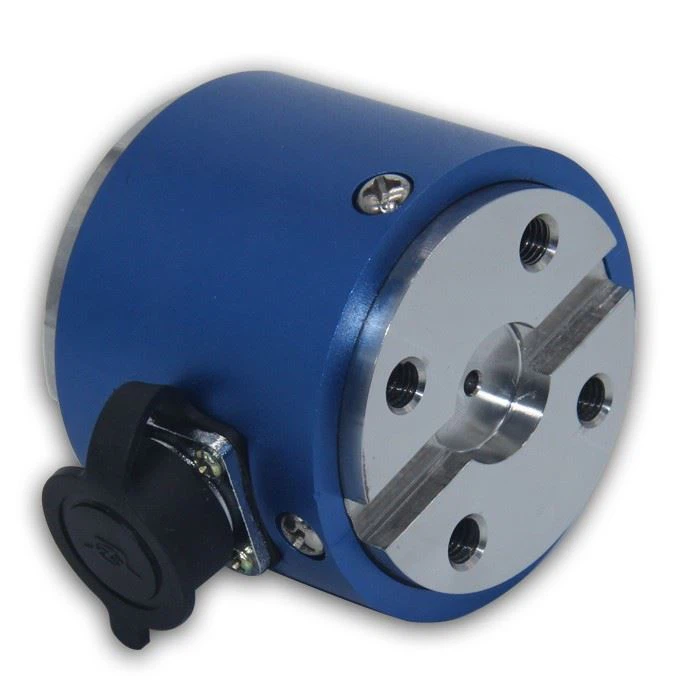

BRG6120 Miniature Torque Sensor with small working range
Description
Features and applications
- The resistive strain is an integrated product composed of sensitive components and integrated circuits, with high precision and stableand reliable performance
- Low-range torque measurement, easy to install and use
- Doubie fange connection
- Suitable for static torque measurement
- Resistance strain as a sensitive element.
- Keyway installation at both ends.
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 0～30, 50, 100 150 Nm | Response frequency | 100μS | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10VDC(9-15VDC) | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 65℃ | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 350, 750±10Ω | Material | Aluminum, stainless steel or alloy steel | |
| output resistance | 350, 700±5Ω | other request | customizable |
Dimension (mm)
Application
Comprehensive compatibility with various working conditions
Can be used on electric motors, engines, and torque wrenches
Small-range Torque Measurement
Small-range torque measurement, easy installation and use, wide test range.
Double Flange Connection
Double flange connection, easy installation and use.
High Accuracy, Stable Performance
The resistance strain gauge combines a sensitive element and an integrated circuit for high accuracy and stable and reliable performance.
