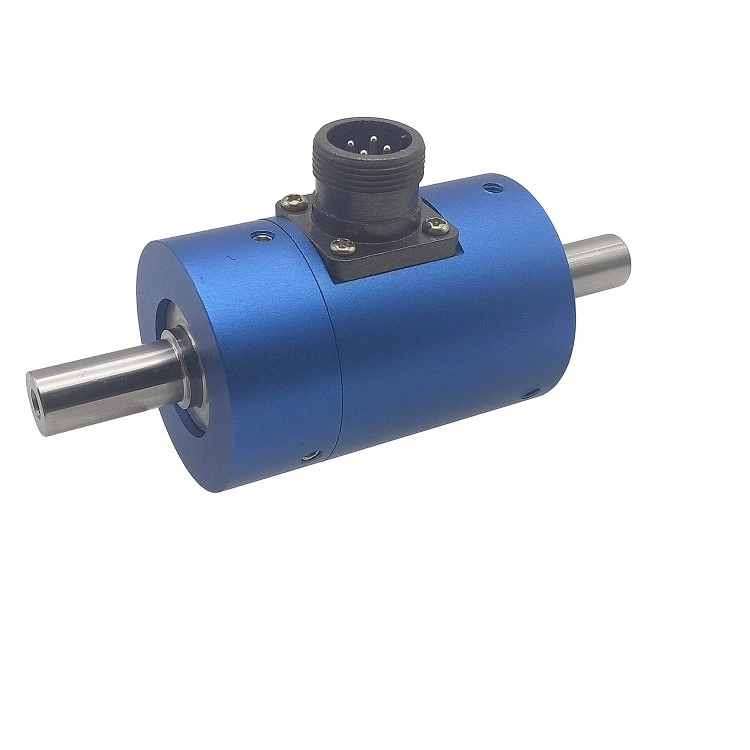

BRG612 Strain Gauge Torque Transducer
Description
Features and applications
1. Resistance strain is an integrated product composed of sensitive components and integrated circuits, High precision, stable and reliable performance.
2. Low-range torque measurement, easy to install and use.
3. Suitable for static torque measurement.
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 0～0.1, 0.2,0.5,1,2,3Nm | Response frequency | 100μS | |
| Sensitivity | 1±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10VDC(9-15VDC) | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 65℃ | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 350, 750±10Ω | Material | Aluminum, stainless steel or alloy steel | |
| output resistance | 350, 700±5Ω | other request | customizable |
Dimension (mm)
Application
The application range of strain gauge torque transducer is very wide.
1. Imeasure torque in tractors, automobiles, airplanes, various ships, and mining machinery.
2. sewage treatment system.
3. process industry.
4. It is also used to detect the output torque and power of various rotating power equipment. For example; electric motor, engine, internal combustion engine, etc.
