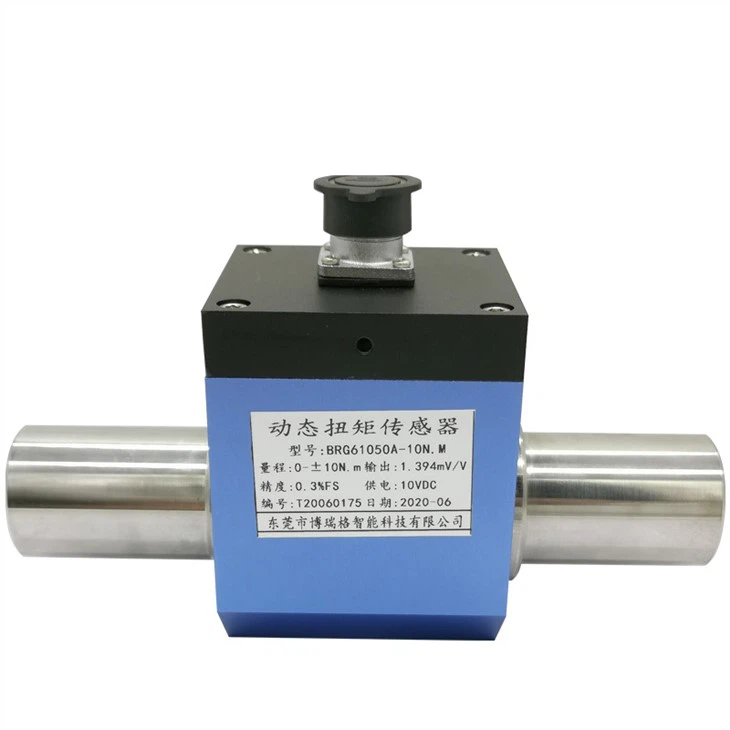

BRG61050 Flange Rotary Square Drive Shaft Torque Transducer
A shaft dynamic torque sensor measures torque on rotating shafts and is widely used in mechanical transmission, automotive testing, and industrial automation.
Key Features:
Real-time Torque Measurement: Accurate in high-speed environments.
Signal Output: Converts torque to electrical signals via strain gauges.
Temperature Compensation: Ensures precision across different temperatures.
Applications:
Mechanical Systems: Monitors and controls equipment for safe operation.
Automotive Testing: Evaluates engine and transmission performance.
Industrial Automation: Optimizes production processes by monitoring torque.
1. The motor torque sensor is an integrated solution combining a sensitive element and an integrated circuit, ensuring high precision with stable and reliable performance.
2. It provides both positive and reverse torque signals.
3. Key connections are present at both ends.
4. The sensor supports speeds up to 1800 rpm.
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 0-10, 20, 30, 50, 100, 200, 500, 1000Nm | Output resistance | 700±5Ω | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±2% F.S. | Excitation voltage | 10-15VDC | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60ºC | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 80ºC | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 750±10Ω | Material | stainless steel or alloy steel |

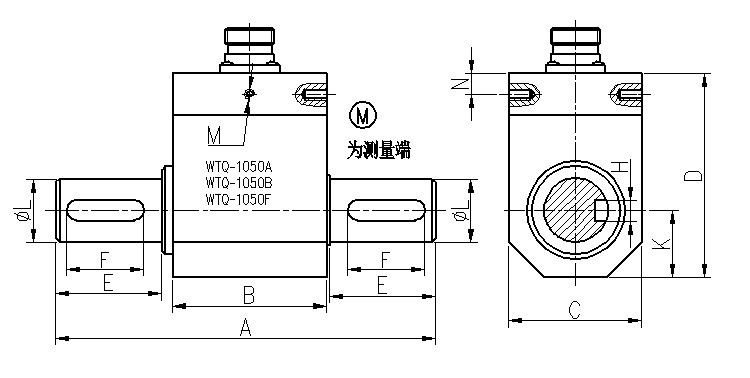

Dimension (mm)
| MODEL | Range (Nm) | A | ΦL | B | C | D | E | F | K | N | M | H |
| BRG61050A | 100 | 108 | 18 | 44 | 38 | 58 | 30 | 22 | 19 | 6 | 3-M3 | 6 |
| BRG61050B | 500 | 143 | 28 | 56 | 53 | 73.5 | 40 | 30 | 27 | 6 | 2-M3 | 8 |
| BRG61050F | 1000 | 221 | 6 | 97 | 90 | 125 | 60 | 55 | 45 | 33 | 4-M4 | 16 |
application
Machine tools
Non-contact sensors measure torque applied to cutting tools, ensuring precise and efficient machining.
Robotics
Dynamic torque sensors measure torque on robot arms, ensuring safe and precise operation.
Industrial automation
Shaft dynamic torque sensors measure torque on actuators and moving parts, improving the efficiency and reliability of automation systems.
