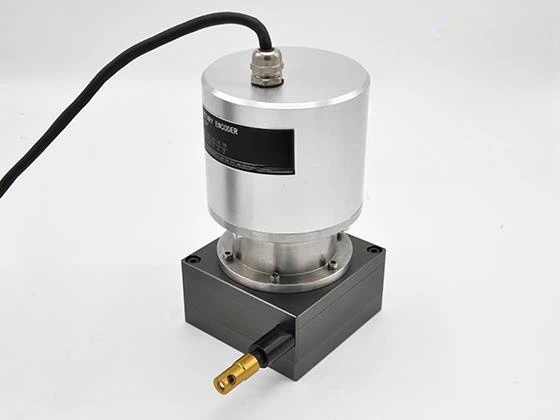

BRG60 Underwater Pull-rope Displacement Sensor
Product Description
The maximum measuring stroke of BRG60-WL underwater series rope displacement sensor is 0-3000mm. It is a newly designed and upgraded underwater rope displacement sensor developed by us. Based on the market test of our products for many years, this sensor adopts a new waterproof structure, is completely sealed, and can be used 200 meters underwater. Different grades of products can also be customized according to customer needs, including standard grade, stainless steel grade, titanium alloy grade, etc.
Technical Parameters
| Working range | 0~3000mm |
| Output signal | Pulse signal, |
| Analog signal (preferred current 4-20mA) | |
| RS485/232, absolute value signal | |
| Resolution | 0.006/0.025/0.03/others |
| Linear accuracy | 0.05%FS |
| Repeatability | 0.01% |
| Max speed | 1m/s~35m/s customize |
| Cable length | 1m, 2m, 4m, customize |
| Steel rope | Highly flexible imported plastic coated steel wire rope |
| Outlet tension | 10~50N |
| lifetime | 1 million times |
| Working voltage | 5V,5-24V,10-30v |
| Workig Tem. | -25-85℃ |
| Shell material | Imported aluminum alloy/stainless steel/titanium alloy |
| Protection level | Completely submerged in water |
Dimension (mm)
(1) Altitude not exceeding 2000m;
(2) Operating environment temperature is 5～+65℃;
(3) The measurement can be submerged no more than 200 meters;
(4) Conventional products can be used in fresh water, but long-term use in sea water requires customization;
(5) The running speed of the object being measured is not more than 2 meters/second;
(6) There is no debris in the water;
Installation Notes:
- After the pull head is pulled out, please do not loosen it or let it bounce back freely, as this will damage the sensor;
- The measuring distance cannot exceed the measurement range allowed by the sensor;
- Before powering on, please confirm that the wiring is correct;
- Provide the power supply specifications required by the sensor.
