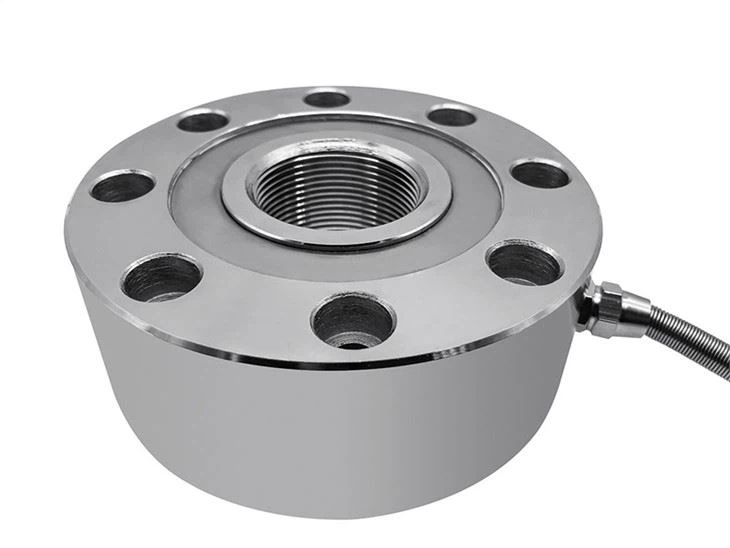

BRG204B Pancake Load Cell
Description
Features
1. Our pancake load cell have the characteristics of anti-eccentric load, low height, easy installation, and can achieve good symmetry in tension and compression.
2. Because of its simple measurement and accurate data, it is often used in material level measurement and control of various presses, platform scales, rail scales and silos.
3. The product has an optional amplifier, and the standard output power is 4-20mA, 0-5V, 0-10V or RS485.
Detials
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 3, 5, 7, 10T | output resistance | 700±5Ω | |
| Sensitivity | 2.0±10% mV / V | Insulation resistance | ≥5000MΩ / 100VDC | |
| Zero output | ±2% F.S. | Excitation voltage | 10-15VDC | |
| Non-linear | ≤±0.03% F.S. | Temperature compensation range | -10 ~ 60ºC | |
| Hysteresis | ≤±0.03% F.S. | working temperature | -20 ~ 80ºC | |
| Repeatability | ≤±0.03% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 750±10Ω | Material | stainless steel or alloy steel |

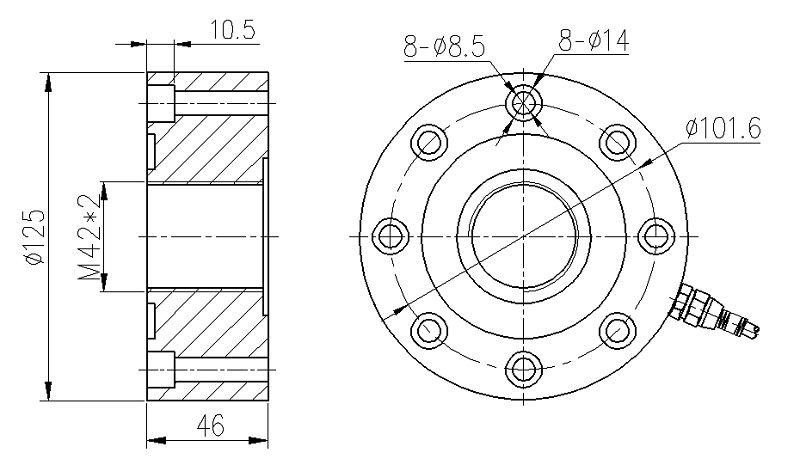

Dimension (mm)
Installation
Application
Our products are widely used in electronic scales, such as hopper scales, truck scales, rail scales, etc., and are used overall for force analysis and measurement in various industrial weighing systems.
