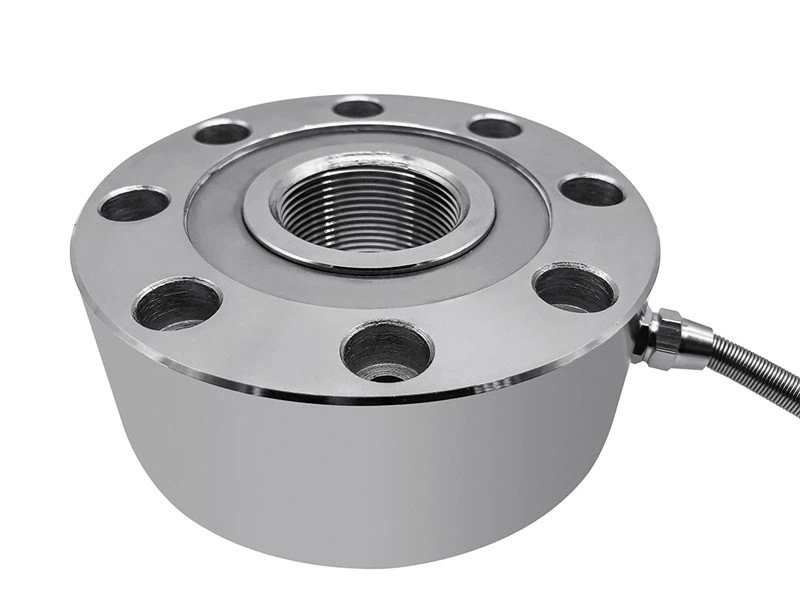

BRG204B Explosion Proof Load Cell
Because of their low height, Explosion Proof Load Cells are also known as low-profile load cells. This kind of load cell has a series of advantages such as high accuracy, good linearity, strong resistance to eccentric load and lateral force, etc. It can be used to measure pressure and tension, and is an instrument that combines eight functions of alarm, prevention and control, restoration, scanning, duplication, verification of tonnage, communication protection, and silent flashing report. It is widely used in breeding, petroleum, construction Construction, animal husbandry and other industries of individuals and enterprises use.
Features
1. Our Explosion Proof Load Cells have the characteristics of anti-eccentric load, low height, easy installation, and can achieve good symmetry in tension and compression.
2. Because of its simple measurement and accurate data, it is often used in material level measurement and control of various presses, platform scales, rail scales and silos.
3. The product has an optional amplifier, and the standard output power is 4-20mA, 0-5V, 0-10V or RS485.
Detials
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 3, 5, 7, 10T | output resistance | 700±5Ω | |
| Sensitivity | 2.0±10% mV / V | Insulation resistance | ≥5000MΩ / 100VDC | |
| Zero output | ±2% F.S. | Excitation voltage | 10-15VDC | |
| Non-linear | ≤±0.03% F.S. | Temperature compensation range | -10 ~ 60ºC | |
| Hysteresis | ≤±0.03% F.S. | working temperature | -20 ~ 80ºC | |
| Repeatability | ≤±0.03% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 750±10Ω | Material | stainless steel or alloy steel |
Dimension (mm)
Application
Our products are widely used in electronic scales, such as hopper scales, truck scales, rail scales, etc., and are used overall for force analysis and measurement in various industrial weighing systems.
