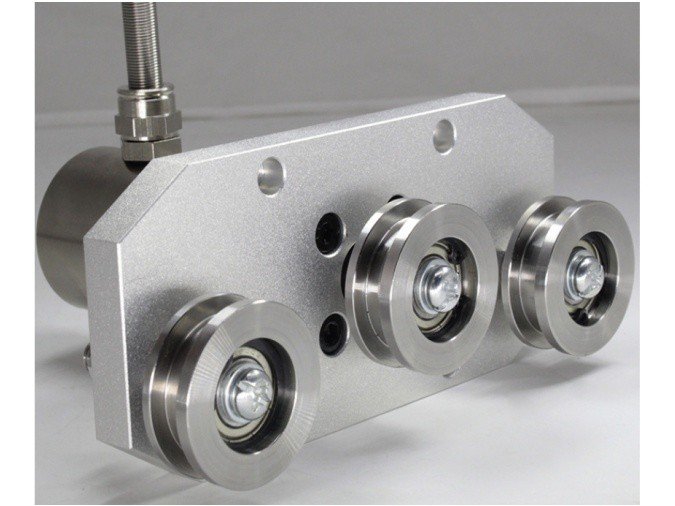

BRG-ZL107 Pulley Tension Sensor To Measure Wire Rope, Metal Wire
A pulley tension sensor is a device used to measure the tension force on a material (such as wire, rope, yarn, or tape) as it passes over a pulley or roller. Here are some key features of pulley tension sensors:
-
Integrated Measuring Amplifier
-
High Accuracy
-
Overload Protection
-
Compact Design
-
Wide Measurement Range
-
Rugged Construction
Technical Parameters
| Rated quantitative schedule | N | 20-300 |
| Output sensitivity | mV/V | 2.0±0.1% |
| Zero point output | %F.S. | ±1 |
| Non-linear | %F.S. | 0.1 |
| lag | %F.S. | 0.1 |
| Repeatability | %F.S. | 0.1 |
| Creep (30 min) | %F.S. | 0.1 |
| Temperature sensitivity drift | %F.S./10℃ | 0.05 |
| Zero temperature drift | %F.S./10℃ | 0.05 |
| Response frequency | Hz | 1k |
| Material | 42CrMoA | |
| impedance | Ω | 350 |
| Insulation resistance | MΩ/100V DC | ≥5000 |
| Use voltage | V | 5-15 |
| Operating temperature range | ℃ | -20-80 |
| Safety overload | %R.C. | 150 |
| Extreme overload | %R.C. | 200 |
| Cable line specifications | m | Φ5*3m |
| Cable limit pull force | N | 98 |
| TEDS | selectable | |
Dimension (mm)
Force Diagram
Suitable for tension measurement of various optical fibers, yarns, chemical fibers, metal wires, wires, cables, tapes, and steel strips.
Widely used in electronics, chemical industry, and textile. Papermaking, machinery and other fields, with high measurement accuracy, reliability and stability in the field of tension measurement
High Precision, Stable Measurement
The sensor has a built-in overload protection mechanism and is strictly tested before leaving the factory, thus ensuring the measurement accuracy, stability and reliability of the product.
Stable Structure And Corrosion Resistance
It adopts a double hole structure design, can be used for tension and compression, and has good output symmetry; it is easy to install, light in weight, and can adapt to the swing of the wire rope during movement, and has a good force measurement effect.

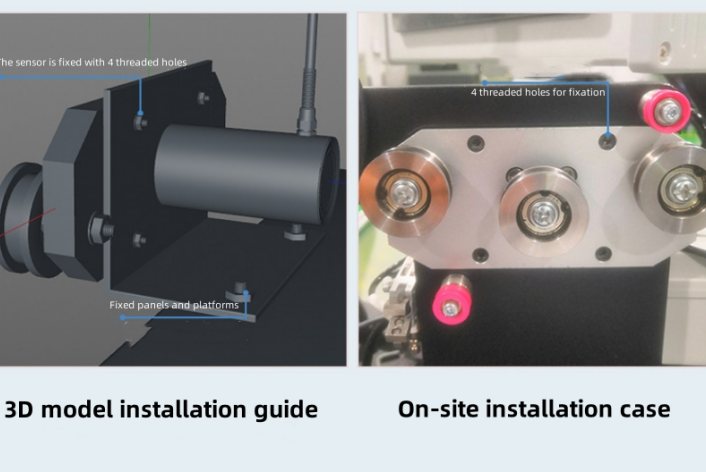

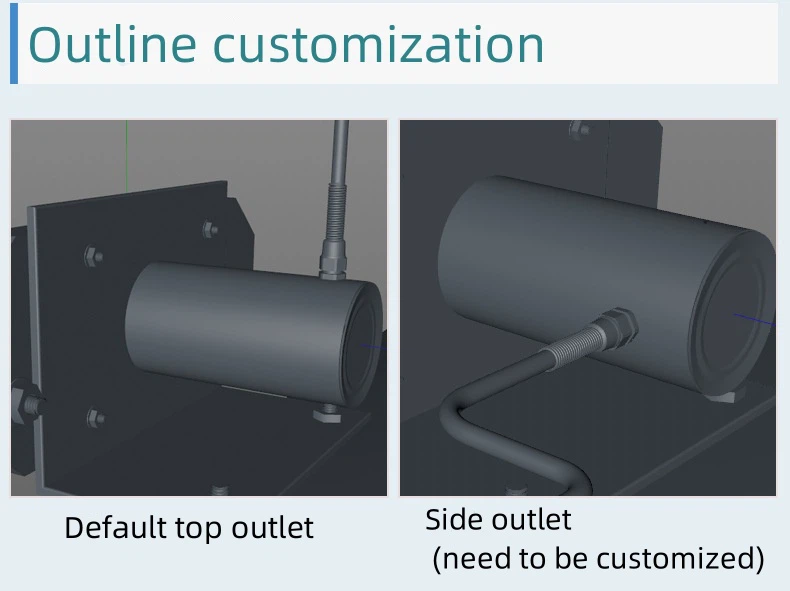

Fixed End, Install Application
Provide installation guidance, simple installation and maintenance
The type of output signal provided by the pulley tension sensor is crucial for integration with control systems or data acquisition equipment.
The common output signal types include 0-10V, 4-20mA, and mV/V, and etc which match with the existing infrastructure.
