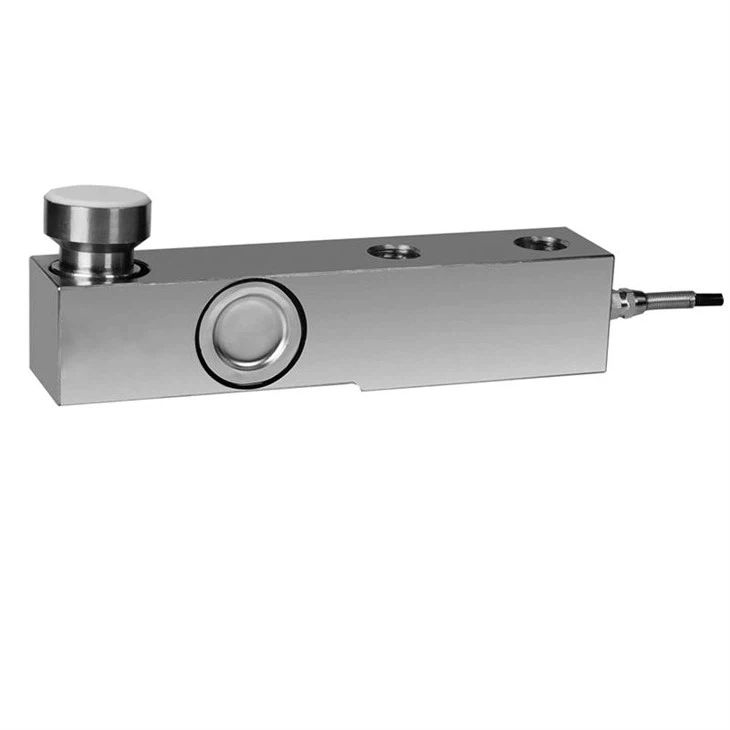

BRG-YZC-3 Single Ended Beam Load Cell
A cantilever beam sensor is a force measuring device with a shear or bending cantilever beam as its core structure. It adopts a mechanical design with one end fixed and the other end loaded. It is equipped with a steel ball force transmission component to achieve automatic centering after load application. Its welded seal and dustproof design ensure reliability. It is mainly used in industrial weighing systems such as electronic truck scales and hopper scales. It supports a dual-ball head structure for fast installation and component interchangeability.
● Single-ended shear beam
● Capacity:5000kg,…,8000kg
● Accuracy:0.03%R.O.
● Alloy steel construction with nickel plated treatment
● Output adjustment for parallel using
● Environment protection class:IP67
● Available accessories(option):load foot & pressure head
Applications
● Tank and hopper scales
● Floor scales
● Platform scales
Technical Data
| Model | BRG-YZC-3 |
| Capacity | 0.5,1,2,3,5,10,20,30,50 T |
| Related output | 2.0± 0.04MV/V |
| Accuracy class | C2 C3 |
| Maxlmum number of verification intervals | 2000n max 3000n max |
| Minimum load cell verification intervals | E Max/5000 V min E Max/7500 V min |
| Combined erro | ≤ ±0.03 %RO ≤ ±0.02 %RO |
| Creep | 0.002 %RO/ 30min |
| Temperature effect on sensitivity | 0.0016 %RO /℃ 0.0014 %RO /℃ |
| Temperature effect on zero | 0.005%RO /℃ 0.002%RO /℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 365± 10 Ω 1050±10Ω |
| Output resistance | 350± 3Ω 1000±5Ω |
| Insulation resistance | 5000MΩ (50V) |
| Recommended excitation voltage | 8~ 15V |
| Compensated temperature range | -10 ~+40 ℃ |
| Operating temperature range | -35 ~+80 ℃ |
| Safe overload | 150 %RO |
| Ultimate overload | 200 %RO |
| Load cell material | Alloy steel IP67 |
| 17-4PH stainless stell IP68 | |
| Connecting cable | 0.5~3T Φ 5.7X3.5m |
| 5~8T Φ 5.7X8 m |
Dimension (mm)
Carefully Selected Materials
Alloy Steel
The sensor’s elastomer is made of alloy steel, sealed with glue or welding, and nickel-plated for waterproof, corrosion-resistant, and durable performance.
Wide Range of Applications
Widely used in various ultra-thin electronic truck scales, monorail crane scales, hopper scales, etc.
Galvanized copper signal cable
High-precision double-shielded signal cable provides excellent signal shielding, corrosion resistance, and durability.
Application
Our products suitable for electronic truck scale, track scale, vehice examination line, tension meter, platform scale, portable scales, mechanical scale, hopper scales, hanging scales, electronic balance, electronic counting scale, electronic handable scale, electronic personal scale, electronic postage scale, electronic kitchen scale and other electronic weighing devices.
