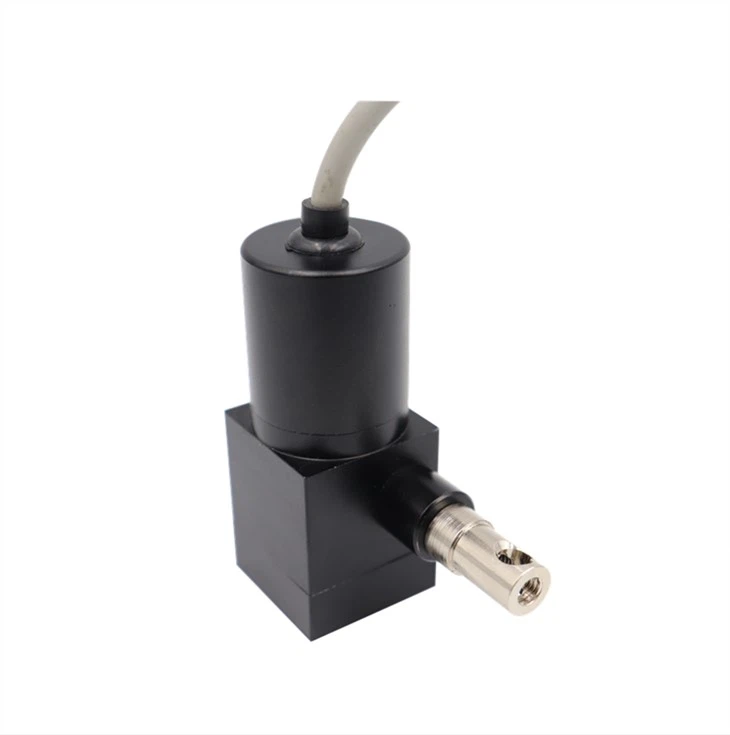

BRG-XXS Miniature String Potentiometer
Production
BRG-XXS type miniature String Potentiometer, measuring range 100mm-600mm, resistance output type, can be external transmission module, output 0-5V, 0-10V, 4-20mA analog signal or RS485 digital signal. The sensor’s protection grade is IP67, which can be used in the open air or in a humid environment for a long time.
1. Long service life, up to 5 million operations
2. High accuracy, linear accuracy 0.15%, repeatability accuracy 0.02%
3. Variety of models, a variety of signal output options, convenient for system acquisition or long-distance transmission
4. High protection level, can be used in the open air or long-term use in a humid environment
5. Small size, suitable for installation in narrow spaces
Technical paramenter
| Working range | 100mm,150mm,200mm,250mm,300mm,350mm,400mm,450mm,550mm,600mm |
| Linear precision | ±0.15% |
| Repeatability accuracy | ±0.02% |
| Resistance (±10%) | 5KΩ; 10 KΩ |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -40℃- +80℃ |
| Usage life | 5 million times |
Dimension
Wire connection
