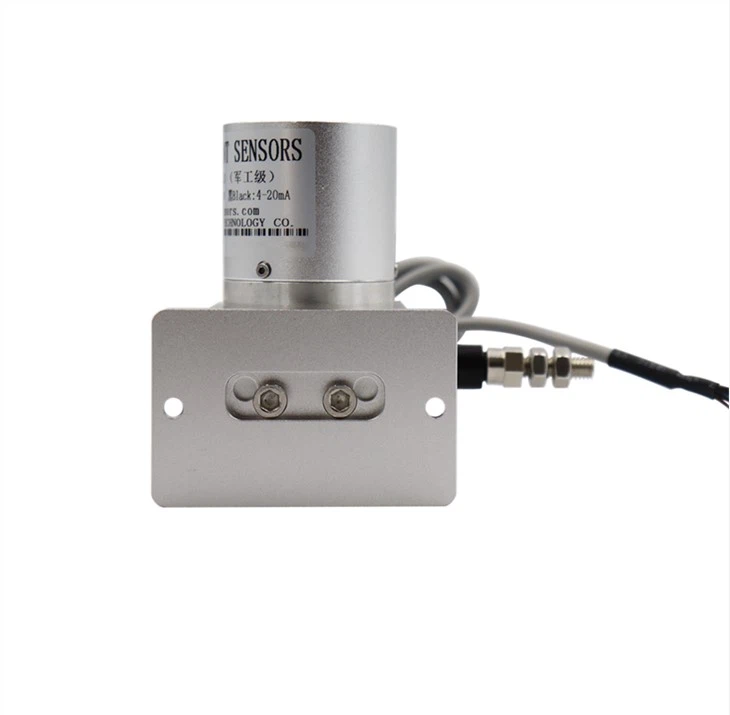

BRG-XS Wire Displacement Sensor
Description
Introduction
BRG-XS pull rope displacement sensor, range 500mm, .,1200mm, military grade,
Sensor output signal types are: resistance output, voltage output (0-SV; 0-10V), current output (4- 20mA, two-wire or three-wire) .
Features :
- Small in size
- High precision
- Easy to install and use
- Dedicated to machine tools, and can also be used for other special occasions
Technical parameter
| Working range | 500mm,600mm,700mm,800,900,1000,1100,1200 |
| Linear precision | ±0.15%FS |
| Repeatability accuracy | ±0.02%FS |
| Resistance (±10%) | 5KΩ; 10 KΩ |
| Resolution | Infinite |
| Max working voltage | 24V DC |
| Output signal | Resistance output; voltage output(0-5V, 0-10v); 4-20Ma; RS485 digital signal |
| Sensor type | Encoder |
| Max working speed | 1m/s |
| Usage temperature | -55℃~~ +125℃ |
| Usage life | 5 million times |
| Traction | 250±25g |
| Wire diameter | 08mm |
| IP grade | IP65 |
| Maximum quality | 450g |
Dimension(mm)
Wire connection

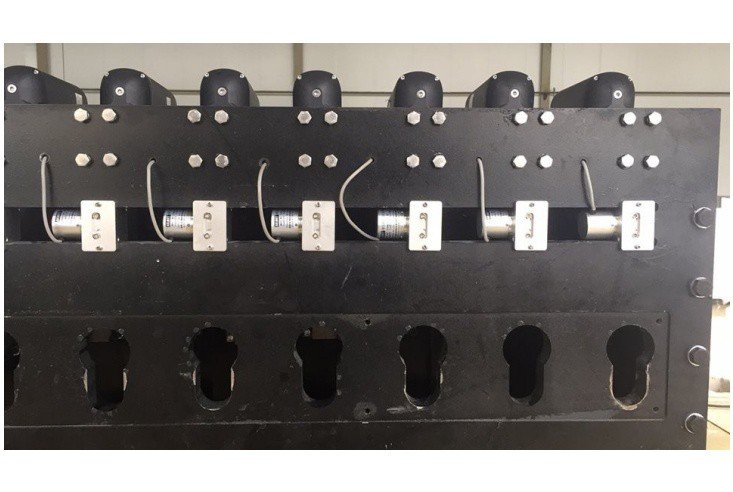

Application
BRG-XS Wire Displacement Sensor is used for storage location positioning, gate opening control, pressure machinery, papermaking machinery, textile machinery, packaging machinery, printing machinery, construction machinery, woodworking machinery, hydraulic presses and other mechanical equipment Displacement measurement and location positioning.
Application
