BRG-WXY30/60/80/90 Water Proof Draw Wire Sensor IP67
Product Introduction
The waterproof pull-wire displacement sensor is designed for use in liquid environments, and is particularly suitable for outdoor use. For example, gate opening measurement, engineering mechanical arms, cylinder extension, geological crack warning, wall crack measurement, and other harsh environments.

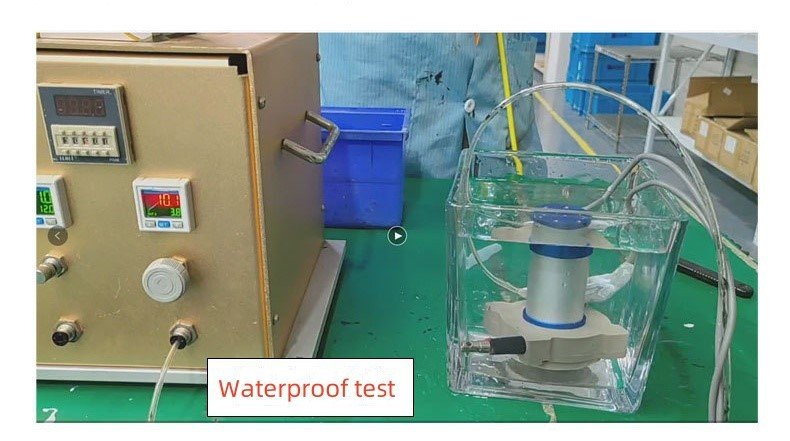

- Protection level: IP67
- Full metal shell
- Various pull cord connectors available
- No-stuck wire structure design
- Retractable speed up to 2m/s
- Support non-standard customization
Technical Parameters
| BRG-WXY30 (0-150mm, 0-200mm, 0-1200mm ) | |||||||
| Output signal | Power | Accuracy | Resolution | Retracting speed | Protection level | Operating temperature : -30~85°C;
Vibration resistance: 10g(5~2000Hz); Impact resistance : 50g(11ms); Outlet mode: straight line lead mode (shielded network cable) optional aviation plug-in; Drawstring diameter: Φ0.7mm (customizable); Drawstring material: Multi-strand flexible steel wire material; Extension force: 3-5N ; Insulation resistance: ≥100MΩ (50VDC); Working status: Allows long-term continuous operation; Response frequency: Analog (300HZ/S) Serial (20HZ/S) Pulse (2000HZ/S) |
|
| Resistance | 5KΩ/10KΩ
1kΩ/2kΩ/20kΩ/100kΩ |
0-24V | ±0.1% | Theoretical
Continuous Analysis |
1.2M/S | IP67 | |
| Voltage | 0-3.3V/ 0-5V/0-10V | 12-24V | |||||
| Current | 0-20mA; 4-20mA | 12-24V | |||||
| Serial communication | RS485; modbus RTU RS232 | 6-24V | |||||
| pulse | NPN
PNP TTL Differential |
5-24V | The accuracy is based on the resolution factor. P: pulse
0.5mm/P; 0.2mm/P; 0.1MM/P;0.08mm/P; 0.05mm/P; 0.04mm/P; 0.02mm/P; 0.01mm/P (Customized according to the range)
|
1M/S | |||
| BRG-WXY60 /80 ( 0-3000mm ) | |||||||
| Output signal | Power | Accuracy | Resolution | Retracting speed | Protection level | Operating temperature : -30~85°C;
Vibration resistance: 10g(5~2000Hz); Impact resistance : 50g(11ms); Outlet mode: straight line lead mode (shielded network cable) optional aviation plug-in; Drawstring diameter: Φ0.8mm (customizable); Drawstring material: Multi-strand flexible steel wire material; Extension force: 3-5N ; Insulation resistance: ≥100MΩ (50VDC); Working status: Allows long-term continuous operation; Response frequency: Analog (300HZ/S) Serial (20HZ/S) Pulse (2000HZ/S) |
|
| Resistance | 5KΩ/10KΩ
1kΩ/2kΩ/ 20kΩ/100kΩ |
0-24V | ±0.12% | Theoretical
Continuous Analysis |
1.3M/S | IP67 | |
| Voltage | 0-3.3V/ 0-5V/0-10V | 12-24V | |||||
| Current | 0-20mA; 4-20mA | 12-24V | |||||
| Serial communication | RS485;
modbus RTU RS232 |
6-24V | 32bits | ||||
| pulse | NPN
PNP TTL Differential |
5-24V | The accuracy is based on the resolution factor. P: pulse
0.5mm/P; 0.2mm/P; 0.1MM/P;0.08mm/P; 0.05mm/P;0.04mm/P;(Customized according to the range ) |
1M/S | |||
| BRG-WXY90 ( 0-6000mm ) | |||||||
| Output signal | Power | Accuracy | Resolution | Retracting speed | Protection level | Operating temperature : -30~85°C;
Vibration resistance: 10g(5~2000Hz); Impact resistance : 50g(11ms); Outlet mode: straight line lead mode (shielded network cable) optional aviation plug-in; Drawstring diameter: Φ0.1mm (customizable); Drawstring material: Multi-strand flexible steel wire material; Extension force: 3-7N ; Insulation resistance: ≥100MΩ (50VDC); Working status: Allows long-term continuous operation; Response frequency: Analog (300HZ/S) Serial (20HZ/S) Pulse (2000HZ/S) |
|
| Resistance | 5KΩ/10KΩ
1kΩ/2kΩ/20kΩ/100kΩ |
0-24V | ±0.15% | Theoretical
Continuous Analysis |
1M/S | IP67 | |
| Voltage | 0-3.3V/ 0-5V/0-10V | 12-24V | |||||
| Current | 0-20mA; 4-20mA | 12-24V | |||||
| Serial communication | RS485; modbus RTU RS232 | 6-24V | 32bits | ||||
| pulse | NPN
PNP TTL Differential |
5-24V | The accuracy is based
on the resolution factor. P: pulse 0.5mm/P; 0.2mm/P; 0.1MM/P;0.06mm/P; 0.05mm/P;(Customized according to the range) |
1M/S | |||

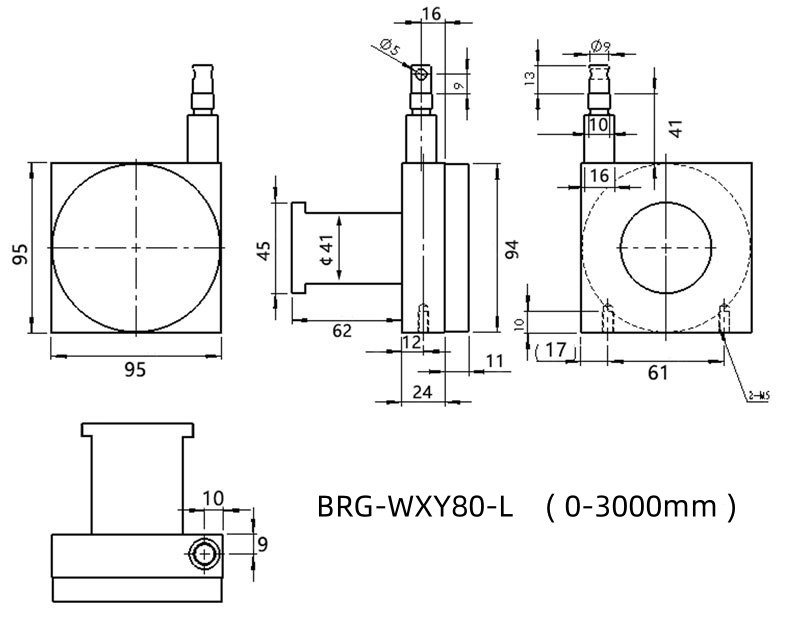

Drawing (mm)

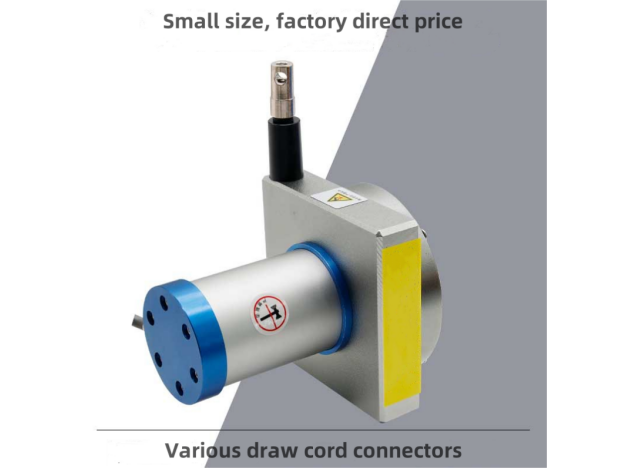

Various Draw Cord Connectors

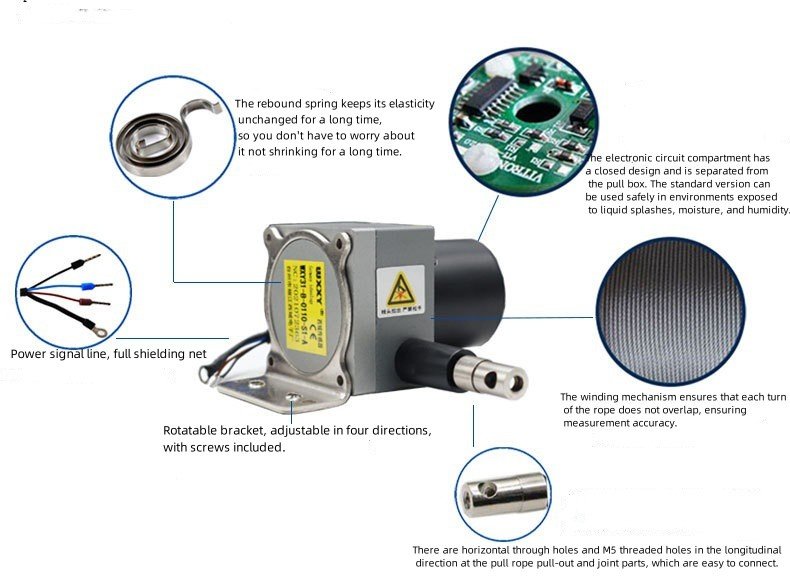

Structural structure and electrical configuration
