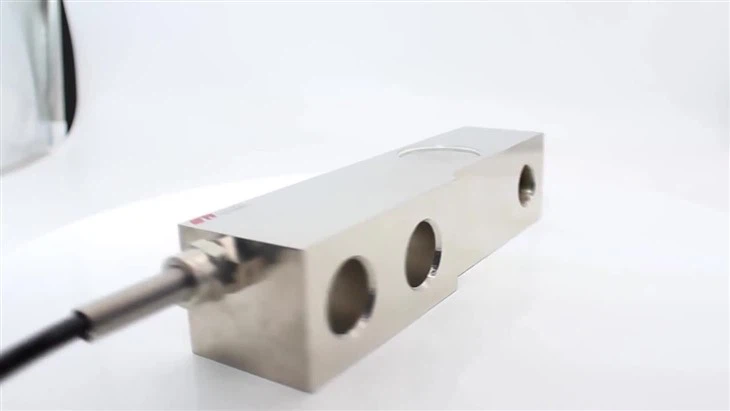

BRG-SBS Shear Beam Type Load Cell

Description

This shear beam type load cell is a quality alloy steel load cell sealed to IP67 for use in demanding environmental conditions or where peace of mind for a long life of demanding use is desired.

Welded sealing
IP67 protection (against moisture and dust)
Cable length: 3 m
Comprehensive error: 0.03%
Alloy steel or stainless steel load cell body
2 mV/V signal
Load cell is supplied with swivel foot and spacer plate

Features

• High Accuracy and Precision

• Insensitivity to Side Loads

• Wide Capacity Range

• Rugged Construction

• Legal-for-Trade Certification

• Environmental Protection

• Versatile Mounting

Technical Data

Dimension(mm)

Force Diagram

Application

Bulk handling equipment: Shear beam load cells are widely utilized in applications such as filling machinery, industrial floor scales, and tank or silo weighing systems to accurately measure the weight of raw materials, finished goods, and containers. Their robust design and high precision make them ideal for environments requiring reliable and consistent weight measurements, ensuring optimal control in industrial processes. These load cells can handle heavy loads while maintaining excellent sensitivity and accuracy, making them a popular choice for industries involved in bulk material handling, storage, and processing.

Material handling equipment: Shear beam load cells are also integrated into equipment such as forklifts and cranes to ensure safe and efficient operation by accurately measuring the applied loads. This integration helps prevent overloading, ensuring both safety and compliance with operational limits. By providing real-time load data, these load cells allow operators to make informed decisions, enhancing the overall performance and safety of material handling and lifting operations. Their durability and precision make them essential components in equipment where load measurement is critical to safety and functionality.

Process control: In manufacturing and processing industries, shear beam load cells are employed to monitor and control material flow, batch weighing, and inventory management. These load cells ensure precise weight measurements, enabling manufacturers to maintain accurate control over material inputs and outputs, optimize production processes, and reduce waste. By integrating load cells into various systems, such as conveyors or hoppers, companies can improve efficiency, maintain product quality, and streamline inventory management, ensuring that raw materials and finished products are measured and tracked effectively throughout the production cycle.

Structural testing: Load cells are crucial in structural testing applications, where they are used to measure the forces acting on buildings, bridges, and other structures. By accurately monitoring loads, stresses, and forces, these sensors help engineers assess the safety, stability, and integrity of structures under various conditions. Whether during construction, maintenance, or stress testing, load cells provide critical data that ensure compliance with safety standards and detect potential issues before they become critical. This makes them essential for safeguarding both new and existing infrastructure against failures or weaknesses.

Weighing scales: Shear beam load cells are widely used in industrial weighing scales to measure the weight of various objects, ranging from raw materials to finished products and containers. Known for their accuracy and reliability, these load cells are integral in environments that require precise weight measurements. Their robust design allows them to handle heavy loads while maintaining high sensitivity, making them ideal for use in industries such as manufacturing, logistics, and processing, where accurate weight data is essential for quality control, inventory management, and operational efficiency.
